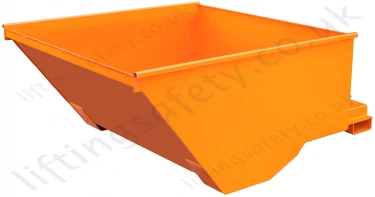

Low Level Skip Fork Truck Attachment - Capacity 0.7 or 1.0m³

Fork lift truck low height tine mounting skip attachment with capacity options of 300kg or 600kg.

Model:

LLS-5451

Description
Pricing (Buy/Quote)

The skip can easily be positioned at the end of a conveyor, dross shot or manufacturing line to collect bi-products that are below waist level.

Features

Low loading height
Reinforced leading edge and body sides
4 way fork pocket entry
Secondary locking mechanism to prevent accidental discharge
Fully seam welded for retention of fluids
Manual handle override
Maximum fork section 150 x 50 mm at 675 mm centres
Zinc plated heel pins for safe attachment to truck
Painted bright orange for safety

Optional Features

Conversion kit for automatic operation
125mm diamater nylon castors
Colour finish for waste separation or department

Dimensions and Specifications

Nominal capacity (m³)	Capacity (kg)	Body sizes (mm)			Overall Height (mm)	Weight (mm)	C of G (mm)	LLC (mm)
Nominal capacity (m³)	Capacity (kg)	Length	Width	Height	Overall Height (mm)	Weight (mm)	C of G (mm)	LLC (mm)
0.7	300	1380	910	540	700	215	630	Fork length -530
1.0	600	1380	1300	540	700	245	650	Fork length -530

Unfortunately, this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

The skip can easily be positioned at the end of a conveyor, dross shot or manufacturing line to collect bi-products that are below waist level.

Features

Low loading height
Reinforced leading edge and body sides
4 way fork pocket entry
Secondary locking mechanism to prevent accidental discharge
Fully seam welded for retention of fluids
Manual handle override
Maximum fork section 150 x 50 mm at 675 mm centres
Zinc plated heel pins for safe attachment to truck
Painted bright orange for safety

Optional Features

Conversion kit for automatic operation
125mm diamater nylon castors
Colour finish for waste separation or department

Dimensions and Specifications

Nominal capacity (m³)	Capacity (kg)	Body sizes (mm)			Overall Height (mm)	Weight (mm)	C of G (mm)	LLC (mm)
Nominal capacity (m³)	Capacity (kg)	Length	Width	Height	Overall Height (mm)	Weight (mm)	C of G (mm)	LLC (mm)
0.7	300	1380	910	540	700	215	630	Fork length -530
1.0	600	1380	1300	540	700	245	650	Fork length -530
