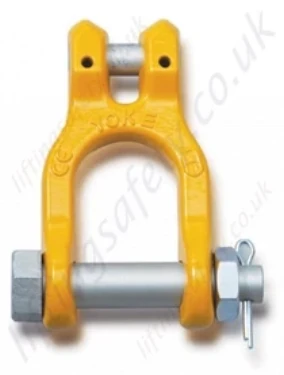

Grade 8 Clevis Shackle for use with 7mm to 16mm Lifting Chain

Clevis shackle for use with grade 8 (grade 80) lifting chains.

Model:

GCSC-4925


Clevis Shackle for use with grade 8 / grade 80 chain sling assemblies, supplied with load pin and retaining pins.

Grade 80 forged lifting components manufactured from alloy steel in accordance with BS EN1677-1+2.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 80 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.

Dimensions and Specifications

Chain Size (mm) A (mm) C (mm) G (mm) K (mm) L (mm) M (mm) W (mm) WLL (t) Weight (kg)
7 and 8 9 79 34 59 35 16 33 2 0.4
10 11 93 40 78 48 20 34 3.15 0.8
13 14 118 44 98 64 22 49 5.3 1.4
16 18 141 54 112 69 28 60 8 2.4
Grade 8 Clevis Shackle Dimensions
Part N° Chain Size (mm) WLL (t) Weight (kg) Unit Price Quantity
4925-T24788 7 & 8 2 0.4 Quote Required
4925-T24789 10 3.15 0.8 Quote Required
4925-T24790 13 5.3 1.4 Quote Required
4925-T24791 16 8 2.4 Quote Required
Add To Quote Request   ?

Clevis Shackle for use with grade 8 / grade 80 chain sling assemblies, supplied with load pin and retaining pins.

Grade 80 forged lifting components manufactured from alloy steel in accordance with BS EN1677-1+2.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 80 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.

Dimensions and Specifications

Chain Size (mm) A (mm) C (mm) G (mm) K (mm) L (mm) M (mm) W (mm) WLL (t) Weight (kg)
7 and 8 9 79 34 59 35 16 33 2 0.4
10 11 93 40 78 48 20 34 3.15 0.8
13 14 118 44 98 64 22 49 5.3 1.4
16 18 141 54 112 69 28 60 8 2.4
Grade 8 Clevis Shackle Dimensions
Part N° Chain Size (mm) WLL (t) Weight (kg) Unit Price Quantity
4925-T24788 7 & 8 2 0.4 Quote Required
4925-T24789 10 3.15 0.8 Quote Required
4925-T24790 13 5.3 1.4 Quote Required
4925-T24791 16 8 2.4 Quote Required
Add To Quote Request   ?
