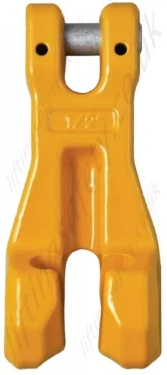

Yoke Grade 8 Clevis Clutch for use with 7mm to 20mm Lifting Chain
Grade 8 / 80 Clevis type chain shortening clutch for use with grade 8 (grade 80) lifting chains.
G8CC-3466
Clevis shortening clutch, Grade 80 lifting component, manufactured from alloy steel in accordance with EN1677, supplied with load pin and retaining pins.
Specifically designed for the temporary shortening of lifting chains, rather than have chains cut to specific lengths. Typically useful when a single set of chains are required for a variety of different lifting applications.
All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.
These Grade 80 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.
Dimensions and Specifications
| Chain Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | WLL (t) | Weight (kg) |
| 7 and 8 | 8 | 9 | 10 | 9 | 16 | 62 | 2 | 0.4 |
| 10 | 12 | 12 | 14 | 12 | 25 | 87 | 3.15 | 1 |
| 13 | 16 | 17 | 17 | 15 | 32 | 115 | 5.3 | 2 |
| 16 | 20 | 20 | 19 | 19 | 39 | 143 | 8 | 3.2 |
| 20 | 21 | 23 | 23 | 22 | 46 | 152 | 12.5 | 5 |
Clevis shortening clutch, Grade 80 lifting component, manufactured from alloy steel in accordance with EN1677, supplied with load pin and retaining pins.
Specifically designed for the temporary shortening of lifting chains, rather than have chains cut to specific lengths. Typically useful when a single set of chains are required for a variety of different lifting applications.
All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.
These Grade 80 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.
Dimensions and Specifications
| Chain Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | WLL (t) | Weight (kg) |
| 7 and 8 | 8 | 9 | 10 | 9 | 16 | 62 | 2 | 0.4 |
| 10 | 12 | 12 | 14 | 12 | 25 | 87 | 3.15 | 1 |
| 13 | 16 | 17 | 17 | 15 | 32 | 115 | 5.3 | 2 |
| 16 | 20 | 20 | 19 | 19 | 39 | 143 | 8 | 3.2 |
| 20 | 21 | 23 | 23 | 22 | 46 | 152 | 12.5 | 5 |
