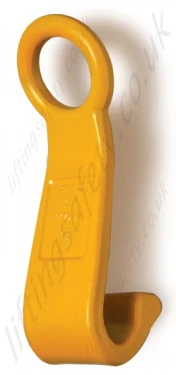

Grade 8 Barrel Hook for use with 7mm or 8mm Lifting Chain

Barrel hooks for use with grade 8 (grade 80) chain.

Model:

G8BH-3471


Barrel Hooks (Sold in Pairs), for use with grade 8 / grade 80 chain sling assemblies (Chains not included).

Grade 80 lifting component, manufactured from alloy steel in accordance with EN1677.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 80 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.

Dimensions and Specifications

Chain Size (mm) E (mm) K (mm) W (mm) WLL (t) Weight (kg)
7 and 8 38 133 50 1.6 0.9
Barrel Hook Dimensions
Part N° Chain Size (mm) Weight (kg) Price per Pair Guide Price Quantity
3471-T7074 7 and 8 0.9 Yes £  27.02
Add to Quote Basket   ?

Barrel Hooks (Sold in Pairs), for use with grade 8 / grade 80 chain sling assemblies (Chains not included).

Grade 80 lifting component, manufactured from alloy steel in accordance with EN1677.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.

These Grade 80 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.

Dimensions and Specifications

Chain Size (mm) E (mm) K (mm) W (mm) WLL (t) Weight (kg)
7 and 8 38 133 50 1.6 0.9
Barrel Hook Dimensions
Part N° Chain Size (mm) Weight (kg) Price per Pair Guide Price Quantity
3471-T7074 7 and 8 0.9 Yes £  27.02
Add to Quote Basket   ?
