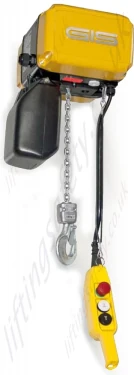

GIS CH Electric Chain Hoist - Range from 400kg to 5000kg

3 Phase and Single Phase Electric Chain Hoist with Lug, Hook, or Beam Trolley Suspension Options

Model:

GGEC-4735


Description

+

A further evolution in chain hoist development from GIS, specialists in chain hoist manufacture since 1963. The GIS manufacturing facility in Switzerland contains some of the most modern machining centres and the hoist embodies the latest manufacturing techniques and technology.

Product Features

  • 400v 3ph as standard, with single phase options available (up to 2 tonne)
  • Compact design.
  • Robust construction.
  • Ease of maintenance.
  • Designed and manufactured to work in the most extreme of conditions.
  • Lifting capacity up to 5.0 tonne.
  • Hoist body and end covers manufactured from die cast aluminium.
  • Reliable, low wear, easy to maintain.
  • Single or dual speeds available with many different speed options.
  • Permanent hoist lubrication for wear resistant operation.
  • Cast aluminium housing and end covers using the latest casting technology, maximum solidity, no plastics used.
  • New advanced brake design providing maximum safety with minimum maintenance.
  • Five or six pocket chain wheel giving extremely quiet running.
  • Fitted with mechanical stops to prevent over travel as required in FEM standards.
  • Ergonomic design 2 or 4 button control pendant with E stop.
  • Available with Eye or Hook suspension, push or electric trolley on I-Beams or combined with GIS crane system.
  • Easy adjustment of the slipping clutch.
  • No special tools or electronic devices required.
  • Maintenance free / wear resistant brake system.
  • Chain guide removable without disassembly of the hoist.
  • Easy conversion from 1 to 2 fall (double load capacity).
  • Ergonomic 2 and 4 button control pendant with support wire.
  • Silent working due to helical gears.
  • Low voltage 42 volts control with emergency stop.
  • Upper and lower electrical gearbox limit switch.
  • Wear resistant overload slip clutch; with asbestos free lining.
  • Heat treated gears in oil bath.
  • Special load chain to DIN 5684, cadmium plated, grade 8.
  • Load hook to DIN 15401.
  • Motor protection: IP 55 to DIN 40050.
  • Motor insulation: F.

Specifications

ISO (FEM) classification M3 (1Bm) 150 s/h - 25% duty M4 (1Am) 180 s/h - 30% duty M5 (2m) 240 s/h - 40% duty M6 (3m) 300 s/h - 50% duty M7 (4m) 360 s/h - 60% duty Lifting Speed Motor Power (M3) 3ph 400v 50Hz (M3) No. of chain falls  Weight (3m HOL)
Model Type* Capacity (kg) (m/min) (kW) (A) (kg)
1000/1 N 1000 800 630 500 400 8 1.45 3.7 1 45
1000/1 NF 1000 800 630 500 400 8/2 1.45/0.36 4.0/2.8 1 46
1000/1 SF 500 400 320 250 200 16/4 1.45/0.36 5.8/2.6 1 48
1000/2 N 2000 1600 1250 1000 800 4 1.45 3.7 2 50
1000/2 NF 2000 1600 1250 1000 800 4/1 1.45/0.36 4.0/2.8 2 51
1000/2 SF 1000 800 630 500 400 8/2 1.45/0.36 5.8/2.6 2 53
1600/1 N 1600 1250 1000 800 630 8 2.44 6 1 63
1600/1 NF 1600 1250 1000 800 630 8/2 2.44/0.61 6.6/4.2 1 65
1600/1 SF 1000 800 630 500 400 12.5/3 2.39/0.58 6.6/4.2 1 65
1600/2 N 3200 2500 2000 1600 1250 4 2.44 6 2 73
1600/2 NF 3200 2500 2000 1600 1250 4/1 2.44/0.61 6.6/4.2 2 75
1600/2 SF 2000 1600 1250 1000 800 6.25/1.5 2.39/0.58 6.6/4.2 2 75
2000/1 N 2000 1600 1250 1000 800 8 3.05 7.3 1 65
2000/1 NF 2000 1600 1250 1000 800 8/2 3.05/0.77 8.0/4.5 1 67
2000/1 SF 1250 1000 800 630 500 12.5/3 2.98/0.72 8.0/4.5 1 67
2000/2 N 4000 3200 2500 2000 1600 4 3.05 7.3 2 76
2000/2 NF 4000 3200 2500 2000 1600 4/1 3.05/0.77 8.0/4.5 2 78
2000/2 SF 2500 2000 1600 1250 1000 6.25/1.5 2.98/0.72 8.0/4.5 2 78
2500/1 N 2500 2000 1600 1250 1000 6.4 3.05 7.7 1 65
2500/1 NF 2500 2000 1600 1250 1000 6.4/1.6 3.05/0.77 8.2/4.4 1 67
2500/1 SF 1600 1250 1000 800 630 10/2.5 3.05/0.77 8.2/4.4 1 67
2500/2 N 5000 4000 3200 2500 2000 3.2 3.05 7.7 2 76
2500/2 NF 5000 4000 3200 2500 2000 3.2/0.8 3.05/0.77 8.2/4.4 2 78
2500/2 SF 3200 2500 2000 1600 1250 5/1.25 3.05/0.77 8.2/4.4 2 78

*N=Single Speed, NF=Two Speed, SF=Quicker Two Speed

For further information on the hoist duty cycles, click the 'Files' tab, and view the 'ELECTRIC HOIST AND WINCH INFORMATION FEM DATA - V4' PDF

Downloads

+
ELECTRIC HOIST AND WINCH INFORMATION FEM DATA - V4.pdf

ELECTRIC HOIST AND WINCH INFORMATION FEM DATA - V4

(approx. 2.8Mb)

A further evolution in chain hoist development from GIS, specialists in chain hoist manufacture since 1963. The GIS manufacturing facility in Switzerland contains some of the most modern machining centres and the hoist embodies the latest manufacturing techniques and technology.

Product Features

  • 400v 3ph as standard, with single phase options available (up to 2 tonne)
  • Compact design.
  • Robust construction.
  • Ease of maintenance.
  • Designed and manufactured to work in the most extreme of conditions.
  • Lifting capacity up to 5.0 tonne.
  • Hoist body and end covers manufactured from die cast aluminium.
  • Reliable, low wear, easy to maintain.
  • Single or dual speeds available with many different speed options.
  • Permanent hoist lubrication for wear resistant operation.
  • Cast aluminium housing and end covers using the latest casting technology, maximum solidity, no plastics used.
  • New advanced brake design providing maximum safety with minimum maintenance.
  • Five or six pocket chain wheel giving extremely quiet running.
  • Fitted with mechanical stops to prevent over travel as required in FEM standards.
  • Ergonomic design 2 or 4 button control pendant with E stop.
  • Available with Eye or Hook suspension, push or electric trolley on I-Beams or combined with GIS crane system.
  • Easy adjustment of the slipping clutch.
  • No special tools or electronic devices required.
  • Maintenance free / wear resistant brake system.
  • Chain guide removable without disassembly of the hoist.
  • Easy conversion from 1 to 2 fall (double load capacity).
  • Ergonomic 2 and 4 button control pendant with support wire.
  • Silent working due to helical gears.
  • Low voltage 42 volts control with emergency stop.
  • Upper and lower electrical gearbox limit switch.
  • Wear resistant overload slip clutch; with asbestos free lining.
  • Heat treated gears in oil bath.
  • Special load chain to DIN 5684, cadmium plated, grade 8.
  • Load hook to DIN 15401.
  • Motor protection: IP 55 to DIN 40050.
  • Motor insulation: F.

Specifications

ISO (FEM) classification M3 (1Bm) 150 s/h - 25% duty M4 (1Am) 180 s/h - 30% duty M5 (2m) 240 s/h - 40% duty M6 (3m) 300 s/h - 50% duty M7 (4m) 360 s/h - 60% duty Lifting Speed Motor Power (M3) 3ph 400v 50Hz (M3) No. of chain falls  Weight (3m HOL)
Model Type* Capacity (kg) (m/min) (kW) (A) (kg)
1000/1 N 1000 800 630 500 400 8 1.45 3.7 1 45
1000/1 NF 1000 800 630 500 400 8/2 1.45/0.36 4.0/2.8 1 46
1000/1 SF 500 400 320 250 200 16/4 1.45/0.36 5.8/2.6 1 48
1000/2 N 2000 1600 1250 1000 800 4 1.45 3.7 2 50
1000/2 NF 2000 1600 1250 1000 800 4/1 1.45/0.36 4.0/2.8 2 51
1000/2 SF 1000 800 630 500 400 8/2 1.45/0.36 5.8/2.6 2 53
1600/1 N 1600 1250 1000 800 630 8 2.44 6 1 63
1600/1 NF 1600 1250 1000 800 630 8/2 2.44/0.61 6.6/4.2 1 65
1600/1 SF 1000 800 630 500 400 12.5/3 2.39/0.58 6.6/4.2 1 65
1600/2 N 3200 2500 2000 1600 1250 4 2.44 6 2 73
1600/2 NF 3200 2500 2000 1600 1250 4/1 2.44/0.61 6.6/4.2 2 75
1600/2 SF 2000 1600 1250 1000 800 6.25/1.5 2.39/0.58 6.6/4.2 2 75
2000/1 N 2000 1600 1250 1000 800 8 3.05 7.3 1 65
2000/1 NF 2000 1600 1250 1000 800 8/2 3.05/0.77 8.0/4.5 1 67
2000/1 SF 1250 1000 800 630 500 12.5/3 2.98/0.72 8.0/4.5 1 67
2000/2 N 4000 3200 2500 2000 1600 4 3.05 7.3 2 76
2000/2 NF 4000 3200 2500 2000 1600 4/1 3.05/0.77 8.0/4.5 2 78
2000/2 SF 2500 2000 1600 1250 1000 6.25/1.5 2.98/0.72 8.0/4.5 2 78
2500/1 N 2500 2000 1600 1250 1000 6.4 3.05 7.7 1 65
2500/1 NF 2500 2000 1600 1250 1000 6.4/1.6 3.05/0.77 8.2/4.4 1 67
2500/1 SF 1600 1250 1000 800 630 10/2.5 3.05/0.77 8.2/4.4 1 67
2500/2 N 5000 4000 3200 2500 2000 3.2 3.05 7.7 2 76
2500/2 NF 5000 4000 3200 2500 2000 3.2/0.8 3.05/0.77 8.2/4.4 2 78
2500/2 SF 3200 2500 2000 1600 1250 5/1.25 3.05/0.77 8.2/4.4 2 78

*N=Single Speed, NF=Two Speed, SF=Quicker Two Speed

For further information on the hoist duty cycles, click the 'Files' tab, and view the 'ELECTRIC HOIST AND WINCH INFORMATION FEM DATA - V4' PDF

ELECTRIC HOIST AND WINCH INFORMATION FEM DATA - V4.pdf

ELECTRIC HOIST AND WINCH INFORMATION FEM DATA - V4

(approx. 2.8Mb)
