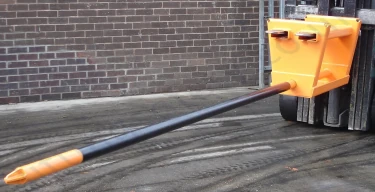

Fork Mounted Pole - Capacity Options of 500kg or 750kg

Fork Mounted Pole - Capacity Options of 500kg or 750kg

Fork lift truck tine mounting boom attachment fork handling reels, rolls or coils with length options of 3000 or 3500mm.

Model:

FMP-5446

The fork mounted pole is capable of lifting a variety of coiled products, but is usually used in low volume/occasion usage environment with a mixed pallet/coiled product application.

Features

High tensile machined pole with tapered tip to ease location into coiled product
Free standing for ease of location
Smooth surface finish to protect the intended load to be lifted
Maximum fork section 125 x 50 mm at 230 centres
Painted bright orange for safety.
Custom versions to suit different lengths, weights or internal/external diameters are available upon request.

Dimensions and Specifications

Boom diameter (mm)	Effective length (mm)	Capacity (kg)	Load centre (mm)	Weight (mm)	C of G (mm)	LLC (mm)
70	3000	500	2000	210	790	950
75	3000	750	2000	225	960	950
75	3500	750	2500	240	1060	950

Part N°	Boom diameter (mm)	Effective length (mm)	Capacity (kg)	Load centre (mm)	Weight (mm)	C of G (mm)	LLC (mm)	Guide Price
5446-T28013	70	3000	500	2000	210	790	950	Quote Required
5446-T28010	75	3000	750	2000	225	960	950	Quote Required
5446-T28015	75	3500	750	2500	240	1060	950	Quote Required
