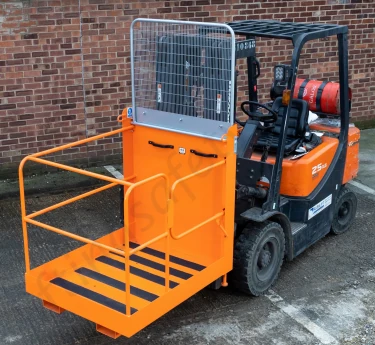

Fork Truck Mounted Man-riding Access Basket for 2 persons

UK Manufactured FLT access platform for 1 or 2 persons with lift-up bar or side gate entry options.

Model:

FMMB-4511


Description

+

Provides a safe environment for a wide range of maintenance and inspections to be carried out from, with the reassurance that they have been manufactured in accordance with HSE document PM28 4th Edition.

Features

  • Automatic locking and unlocking gates (side-gate models only)
  • Hinge back guard for ease of transportation and storage
  • Safety harness attachment rings
  • Self-draining non-slip floor
  • Zinc plated heel pins for safe attachment to truck
  • Maximum fork section 150 x 50mm at 525 centres
  • Painted bright orange for safety
  • Quick availability

Dimensions & Specifications

Model Personal Access No of Persons Platform base size L x W x H (mm) Capacity (kg) Weight (kg) C of G (mm)
4511-T23310 Lift-up Bar 2 950 x 950 x 2120 250 102 525
4511-T23308 Side Gate 2 950 x 950 x 2120 250 104 525
4511-T23311 Side Gate 2 1250 x 950 x 2120 250 125 585
Downloads

+
Operation Instructions.pdf

Operation, Maintenance and Safety Instructions

(approx. 1.1Mb)
Pricing

+
Part N° Access Method Max. No. Persons Platform base size (LxWxH) Capacity (kg) Weight (kg) C of G (mm) Guide Price Quantity
4511-T23310 Lift-up Bar 2 950 x 950 x 2120mm 250 102 525 Quote Required
4511-T23308 Side Gate 2 950 x 950 x 2120mm 250 104 585 Quote Required
4511-T23311 Side Gate 2 1250 x 950 x 2120mm 250 125 585 £  742.86
Add to Quote Basket   ?

Provides a safe environment for a wide range of maintenance and inspections to be carried out from, with the reassurance that they have been manufactured in accordance with HSE document PM28 4th Edition.

Features

  • Automatic locking and unlocking gates (side-gate models only)
  • Hinge back guard for ease of transportation and storage
  • Safety harness attachment rings
  • Self-draining non-slip floor
  • Zinc plated heel pins for safe attachment to truck
  • Maximum fork section 150 x 50mm at 525 centres
  • Painted bright orange for safety
  • Quick availability

Dimensions & Specifications

Model Personal Access No of Persons Platform base size L x W x H (mm) Capacity (kg) Weight (kg) C of G (mm)
4511-T23310 Lift-up Bar 2 950 x 950 x 2120 250 102 525
4511-T23308 Side Gate 2 950 x 950 x 2120 250 104 525
4511-T23311 Side Gate 2 1250 x 950 x 2120 250 125 585
Operation Instructions.pdf

Operation, Maintenance and Safety Instructions

(approx. 1.1Mb)
Part N° Access Method Max. No. Persons Platform base size (LxWxH) Capacity (kg) Weight (kg) C of G (mm) Guide Price Quantity
4511-T23310 Lift-up Bar 2 950 x 950 x 2120mm 250 102 525 Quote Required
4511-T23308 Side Gate 2 950 x 950 x 2120mm 250 104 585 Quote Required
4511-T23311 Side Gate 2 1250 x 950 x 2120mm 250 125 585 £  742.86
