Crosby Mckissick Quic kit

Mckissick quic kit gives you the ability to provide a factory quality replacement bridge crane block where you need it, when you need it.

Model:

Mckissick Quic kit / CMQK-3797


The patented mckissick quic-fit system is a revolutionary concept that gives you the ability to provide quality replacement bridge crane block where you need it, when u need it.

The quic-fit system provides you all the parts to repair or replace a 750 bridge crane block: all in one kit that can be easily assembled on site.

Features

  • Reduced downtime - SA replacement block can be assembled in minutes from kit components utilizing tools and assembly instructions provided in each kit.
  • Multiple versions of two sheave blocks - up to 32 possible block combinations are included in the 752 series block kit. Each kit contains three wire line sizes and two centre pins with multiple sheave spacers.
  • Adjustable sheave spacing in 1/2 increments - Center pin design gives you the ability to assemble the replacement block to meet your spacing requirement.

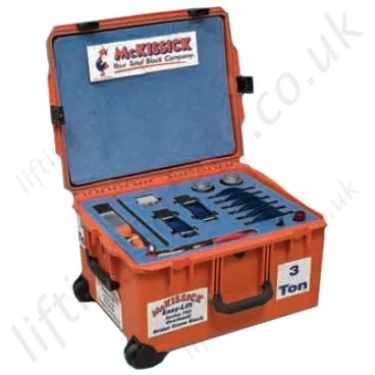

  • The mckissick quic fit - comes complete in a durable carrying case for easy transport and for storing components on the work site or warehouse

Dimensions

WLL (t) 751K Stock no Sheave O.D (in) Pitch Diameter Sheave wire
(in) (mm) (in) (mm)
2 1003542 6.5 5.69 151 1/4, 5/16, 3/8 6.5, 8, 9-10
3 1003551 8 7.38 187 1/4, 5/16, 3/8, 7/15. 1/2 6.5, 8, 9-10, 11, 12-13
5 1003560 10 9.25 235 3/8, 7/16, 1/2, 9/16, 5/8 9-10, 11, 12-13, 14, 16
7.5 1003579 12 11.00 279 1/2, 9/16, 5/8, 3/4 12-13, 14, 16, 19
10 1003588 14 12.50 315 5/8, 3/4. 7/8, 1 16, 19, 22, 25-26
  WLL (t)   752k Stock no.   Sheave O.D (in) Sheave spacing center line  Pitch diameter  Sheave wire
(in)  (mm)  (in) (mm)  (in) (mm)
 3 1003595  6.5  3.25-5 82.6-127 5.95  150-152 1/4, 5/16, 3/8  6.5, 8, 9-10
 5 1003604  8  4.5-6.5  114-165  7.38 183-191  1/4, 5/16, 3/8, 7/16, 1/2 6.5, 8, 9-10, 11, 12-13
 7.5  1003613  10 5.25-7.75 133-203  9.25  228-236  3/8, 7/16, 1/2, 9/16, 5/8 9-10, 11, 12-13, 14, 16
 10 1003622  12 6.5-10  133-203  11 273-282 1/2, 9/16, 5/8, 3/4 12-13, 14, 16, 19
 15  1003631  12 7.5-11 191-279  11 273-282  1/2, 9/16, 5/8, 3/4 12-13, 14, 16, 19
Part N° WLL (t) Sheave 0.D (in) Guide Price Quantity
3797-T21302
1003542
2 6.5 Quote Required
3797-T21303
1003551
3 8 Quote Required
3797-T21304
1003560
5 10 Quote Required
3797-T21305
1003579
7.5 12 Quote Required
3797-T21306
1003588
10 14 Quote Required
3797-T21307
1003595
3 6.5 Quote Required
3797-T21308
1003604
5 8 Quote Required
3797-T21309
1003613
7.5 10 Quote Required
3797-T21310
1003622
10 12 Quote Required
3797-T21311
1003631
15 12 Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?

The patented mckissick quic-fit system is a revolutionary concept that gives you the ability to provide quality replacement bridge crane block where you need it, when u need it.

The quic-fit system provides you all the parts to repair or replace a 750 bridge crane block: all in one kit that can be easily assembled on site.

Features

  • Reduced downtime - SA replacement block can be assembled in minutes from kit components utilizing tools and assembly instructions provided in each kit.
  • Multiple versions of two sheave blocks - up to 32 possible block combinations are included in the 752 series block kit. Each kit contains three wire line sizes and two centre pins with multiple sheave spacers.
  • Adjustable sheave spacing in 1/2 increments - Center pin design gives you the ability to assemble the replacement block to meet your spacing requirement.
  • The mckissick quic fit - comes complete in a durable carrying case for easy transport and for storing components on the work site or warehouse

Dimensions

WLL (t) 751K Stock no Sheave O.D (in) Pitch Diameter Sheave wire
(in) (mm) (in) (mm)
2 1003542 6.5 5.69 151 1/4, 5/16, 3/8 6.5, 8, 9-10
3 1003551 8 7.38 187 1/4, 5/16, 3/8, 7/15. 1/2 6.5, 8, 9-10, 11, 12-13
5 1003560 10 9.25 235 3/8, 7/16, 1/2, 9/16, 5/8 9-10, 11, 12-13, 14, 16
7.5 1003579 12 11.00 279 1/2, 9/16, 5/8, 3/4 12-13, 14, 16, 19
10 1003588 14 12.50 315 5/8, 3/4. 7/8, 1 16, 19, 22, 25-26
  WLL (t)   752k Stock no.   Sheave O.D (in) Sheave spacing center line  Pitch diameter  Sheave wire
(in)  (mm)  (in) (mm)  (in) (mm)
 3 1003595  6.5  3.25-5 82.6-127 5.95  150-152 1/4, 5/16, 3/8  6.5, 8, 9-10
 5 1003604  8  4.5-6.5  114-165  7.38 183-191  1/4, 5/16, 3/8, 7/16, 1/2 6.5, 8, 9-10, 11, 12-13
 7.5  1003613  10 5.25-7.75 133-203  9.25  228-236  3/8, 7/16, 1/2, 9/16, 5/8 9-10, 11, 12-13, 14, 16
 10 1003622  12 6.5-10  133-203  11 273-282 1/2, 9/16, 5/8, 3/4 12-13, 14, 16, 19
 15  1003631  12 7.5-11 191-279  11 273-282  1/2, 9/16, 5/8, 3/4 12-13, 14, 16, 19
Part N° WLL (t) Sheave 0.D (in) Guide Price Quantity
3797-T21302
1003542
2 6.5 Quote Required
3797-T21303
1003551
3 8 Quote Required
3797-T21304
1003560
5 10 Quote Required
3797-T21305
1003579
7.5 12 Quote Required
3797-T21306
1003588
10 14 Quote Required
3797-T21307
1003595
3 6.5 Quote Required
3797-T21308
1003604
5 8 Quote Required
3797-T21309
1003613
7.5 10 Quote Required
3797-T21310
1003622
10 12 Quote Required
3797-T21311
1003631
15 12 Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?
