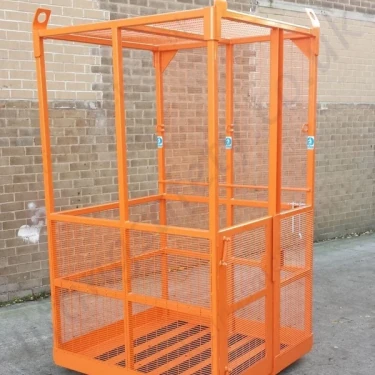

Crane or fork mounted access platform

2 persons crane or fork mounted access platform with mesh protection

Model:

CMAP-5436

With the option of both Crane Slung or Fork Mounting as standard. this Access Platform delivers multiple usage from a single attachment, which encompasses many characteristics of the CMAP range.

Features

Automatic locking and unlocking gate
Low level, rear and overhead mesh protection
Safety harness attachment rings
Self-draining non-slip floor
Zinc-plated heel pins for safe attachment to truck
Maximum fork section 150x50 mm at 525 centres
Painted bright orange for visibility

Optional features

Automatic locking and unlocking gate
Low level, rear and overhead mesh protection

Model	Personal Access	No. of persons	Platform base size L x W x H (mm)	Capacity (kg)	Weight (kg)	C of G (mm)	LLC (mm)
CMAP-5436	Side Gate	2	1220 x 1220 x 2320	500	238	530	N/A

Please note 4 leg chains for crane slung option not included

Description

With the option of both Crane Slung or Fork Mounting as standard. this Access Platform delivers multiple usage from a single attachment, which encompasses many characteristics of the CMAP range.

Features

Automatic locking and unlocking gate
Low level, rear and overhead mesh protection
Safety harness attachment rings
Self-draining non-slip floor
Zinc-plated heel pins for safe attachment to truck
Maximum fork section 150x50 mm at 525 centres
Painted bright orange for visibility

Optional features

Automatic locking and unlocking gate
Low level, rear and overhead mesh protection

Model	Personal Access	No. of persons	Platform base size L x W x H (mm)	Capacity (kg)	Weight (kg)	C of G (mm)	LLC (mm)
CMAP-5436	Side Gate	2	1220 x 1220 x 2320	500	238	530	N/A

Please note 4 leg chains for crane slung option not included
