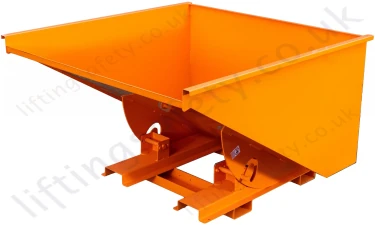

Fork Mounted Tipping Skip Attachment - Capacity Options from 0.5 to 1.8 m3

Fork lift truck tine mounting tipping skips with capacity options from 700kg up to 2200kg.

Model:

CTS-5450


Description

+

Designed to simplify the holding, movement and disposal of material in confined areas with the unique '4 way entry' base.

Features

  • Low loading height
  • Reinforced leading edge and body sides
  • 4 way fork pocket entry (front, back and each side)
  • Secondary locking mechanism to prevent accidental discharge
  • Fully seam welded for retention of fluids
  • Manual handle override
  • Maximum fork section 150 x 50 mm at 675 mm centres
  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety

Optional Features

  • Conversion kit for automatic operation
  • 125mm diamater nylon castors
  • Colour finish for waste separation or department

Dimensions and Specifications

Nominal capacity (m³)  Capacity (kg)  Body sizes (mm) Overall Height (mm) Overall Length (mm) Weight (mm)  C of G (mm)  LLC (mm)
Length Width Height
0.5 700 1220 1030 690 895 1550 166 760 N/A
0.9 900 1600 1060 830 1035 1830 222 785 N/A
1.2 900 1600 1300 830 1035 1830 229 725 N/A
1.5 1200 1600 1560 830 1035 1830 251 685 N/A
1.8 2200 1800 1560 955 1160 2030 277 650 N/A
Pricing

+
Part N° Nominal capacity (m³) Capacity (kg) Body Length (mm) Body Width (mm) Body Height (mm) Overall Height (mm) Overall Length (mm) Weight (mm) C of G (mm) LLC (mm) Guide Price Quantity
5450-T28020 0.5 700 1220 1030 690 895 1550 166 760 N/A Quote Required
5450-T28021 0.9 900 1600 1060 830 1035 1830 222 785 N/A Quote Required
5450-T28022 1.2 900 1600 1300 830 1035 1830 229 725 N/A Quote Required
5450-T28023 1.5 1200 1600 1560 830 1035 1830 251 685 N/A Quote Required
5450-T28024 1.8 2200 1800 1560 955 1160 2030 277 650 N/A Quote Required
Add to Quote Basket   ?

Designed to simplify the holding, movement and disposal of material in confined areas with the unique '4 way entry' base.

Features

  • Low loading height
  • Reinforced leading edge and body sides
  • 4 way fork pocket entry (front, back and each side)
  • Secondary locking mechanism to prevent accidental discharge
  • Fully seam welded for retention of fluids
  • Manual handle override
  • Maximum fork section 150 x 50 mm at 675 mm centres
  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety

Optional Features

  • Conversion kit for automatic operation
  • 125mm diamater nylon castors
  • Colour finish for waste separation or department

Dimensions and Specifications

Nominal capacity (m³)  Capacity (kg)  Body sizes (mm) Overall Height (mm) Overall Length (mm) Weight (mm)  C of G (mm)  LLC (mm)
Length Width Height
0.5 700 1220 1030 690 895 1550 166 760 N/A
0.9 900 1600 1060 830 1035 1830 222 785 N/A
1.2 900 1600 1300 830 1035 1830 229 725 N/A
1.5 1200 1600 1560 830 1035 1830 251 685 N/A
1.8 2200 1800 1560 955 1160 2030 277 650 N/A
Part N° Nominal capacity (m³) Capacity (kg) Body Length (mm) Body Width (mm) Body Height (mm) Overall Height (mm) Overall Length (mm) Weight (mm) C of G (mm) LLC (mm) Guide Price Quantity
5450-T28020 0.5 700 1220 1030 690 895 1550 166 760 N/A Quote Required
5450-T28021 0.9 900 1600 1060 830 1035 1830 222 785 N/A Quote Required
5450-T28022 1.2 900 1600 1300 830 1035 1830 229 725 N/A Quote Required
5450-T28023 1.5 1200 1600 1560 830 1035 1830 251 685 N/A Quote Required
5450-T28024 1.8 2200 1800 1560 955 1160 2030 277 650 N/A Quote Required
Add to Quote Basket   ?
