Crosby S643 Weldless Rings, WLL Range from 2540kg to 8620kg

Crosby S643 Weldless Rings, WLL Range from 2540kg to 8620kg

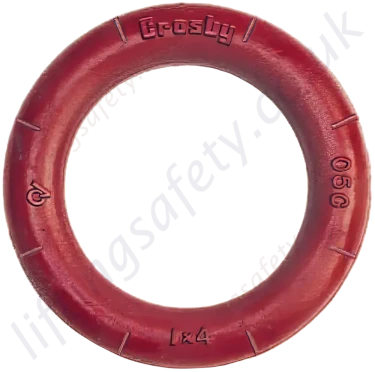

Crosby Weldless Rings.

Model:

Crosby S-643 / CWR-2424

Crosby S643 Weldless Rings, WLL Range from 2540kg to 8620kg

Crosby S 643 Weldless Rings
More from:
Crosby

Weldless Rings meet the performance requirements of Federal Specification RR-C-271F Type VI, except for those provisions required of the contractor.

  • Forged carbon steel - Quenched and Tempered.
  • Self Colored

Metric Dimensions & Specifications

Size A (mm)

 Size (A) (In.) S-643 Stock No. Working Load Limit
Single Pull (t)*		 Weight Each (kg) Dimensions (mm)
B C
22.2 x 102 7/8 x 4 1013780 3.27 1.23 102 146
22.2 x 140 7/8 x 5-1/25 1013806 2.54 1.57 140 184
25.4 x 102 1 x 4 1013824 4.90 1.67 102 152
28.6 x 152 1-1/8 x 6 1013842 4.72 2.99 152 210
31.8 x 127 1-1/4 x 5 1013860 7.71 3.09 127 191
34.9 x 152 1-3/8 x 6 1013888 8.62 4.59 152 222

*Ultimate Load is 6 times the Working Load Limit.

Part N° Size (mm) Size (In.) Working Load Limit Single Pull (t)* Weight Each (kg) Unit Price (Ex. VAT) Quantity
2424-T15810
1013780 		22.2 x 102 7/8 x 4 3.27 1.23 Quote Required
2424-T15811
1013806 		22.2 x 140 7/8 x 5-1/25 2.54 1.57 Quote Required
2424-T15812
1013824 		25.4 x 102 1 x 4 4.90 1.67 Quote Required
2424-T15813
1013842 		28.6 x 152 1-1/8 x 6 4.72 2.99 Quote Required
2424-T15814
1013860 		31.8 x 127 1-1/4 x 5 7.71 3.09 Quote Required
2424-T15815
1013888 		34.9 x 152 1-3/8 x 6 8.62 4.59 Quote Required
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

Weldless Rings meet the performance requirements of Federal Specification RR-C-271F Type VI, except for those provisions required of the contractor.

  • Forged carbon steel - Quenched and Tempered.
  • Self Colored

Metric Dimensions & Specifications

Size A (mm)

 Size (A) (In.) S-643 Stock No. Working Load Limit
Single Pull (t)*		 Weight Each (kg) Dimensions (mm)
B C
22.2 x 102 7/8 x 4 1013780 3.27 1.23 102 146
22.2 x 140 7/8 x 5-1/25 1013806 2.54 1.57 140 184
25.4 x 102 1 x 4 1013824 4.90 1.67 102 152
28.6 x 152 1-1/8 x 6 1013842 4.72 2.99 152 210
31.8 x 127 1-1/4 x 5 1013860 7.71 3.09 127 191
34.9 x 152 1-3/8 x 6 1013888 8.62 4.59 152 222

*Ultimate Load is 6 times the Working Load Limit.

Crosby General Info

Downloads

Crosby-catalogue-page-number-140.pdf

Crosby-catalogue-page-number-140.pdf

(approx. 0.2Mb)
