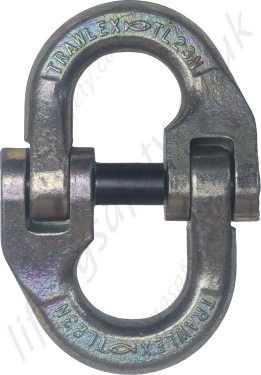

Crosby TLN Trawlex Component Connector

Trawlex TLN Series Chain Connectors for Aquaculture Applications

The Crosby Trawlex® Component Connector TLN is a robust, two-piece rigging and lifting connector from Kito Crosby, widely used throughout the fishing industry. Specifically engineered to withstand the demanding conditions of commercial fishing and aquaculture applications, it delivers reliable performance and durability in challenging environments.

The TLN may also be familiar to some users under its previous name, KUPLEX TLN component connector.

Key Features

• Available in chain sizes 7 mm to 32mm
• Fulfils requirements in EN 1677:2008.
• Individually proof-tested to 2.5 x WLL.

Dimensions & Specifications

Model	Stock No.	Chain Dia. (mm)	Dimensions (mm)					Weight (kg)
			A	B	C	D	E
TL7N	2780583	7	67	49	48	14.3	9	0.11
TL10N	2780592	10	89	66	64	19.2	13	0.36
TL13N	2780609	13	118	85	85	26.5	17	0.66
TL16N	2780618	16	144	96	106	32	19	1.08
TL19N	2780627	19	168	115	122	38.5	23	1.77
TL23N	2780636	23	206	140	150	49	28	2.8
TL26N	2780645	26	230	163	166	57	32	4.4
TL32N	2780654	32	278	210	200	63	39	8.4

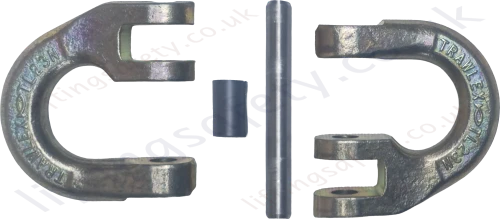

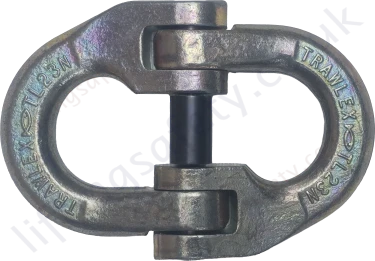

TLN Connector Components and Assembled
