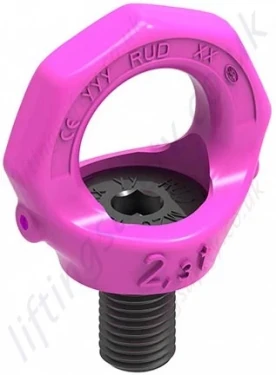

RUD VRS Starpoint Rotating Eye Bolt

RUD VRS Starpoint Rotating Eye Bolt

RUD starpoint eye bolts with option of metric (M6-M64) or UNC (1/4"-2" UNC) threads. Lifting capacities up to 20 tonnes.

Model:

RUD VRS / SVE-54

RUD VRS Starpoint Rotating Eye Bolt

Rud VRS Swivel Eye Bolt No Key VRSF 90 Degree Lift VRS-F Vertical Lift VRS-F Fitted Rud VRS / VRSF Dimensions
More from:
RUD

VRS Swivel Eye Bolt

  • Star-shaped design, a clear distinction from the DIN 580 eye bolt. With a striking fluorescent pink powder coating.
  • 4:1 Safety factor.
  • Capacity ranges from 100kg to 12,000kg.
  • Full working load in all directions.
  • Several times higher WLL than the DIN 580 eye bolt.
  • DGUV-approval.
  • Range of rotation: 360°. A fixed, non-rotating version is also available; see the RUD RS grade 80 eye bolt, as well as a fixed female eye nut, the RUD RM, or see the RUD VRM for a rotating eye nut version.
  • Maximum operation temperature range WITHOUT reduction of WLL -40 °C to 100 °C.
  • Maximum operation temperature WITH reduction of WLL 300°C Max.
  • Clear marking of the minimum WLL for all loading directions. Higher WLL is possible when the location and installation are optimised (compare WLL chart/product information).
  • Non-exchangeable special bolt (this reduces the usage of improper standard bolts).

RUD VRS Eyebolt
VRS Swivel Eye Bolt No Key


The VRS Standard does not include the locking device (StarKey), which makes the eye bolt adjustable.

RUD VRS-F Eyebolt
VRS-F Swivel Eye Bolt With Key


The VRS-F Can be fixed in position or made adjustable by disengaging the StarKey (locking device). Stock levels tend to be better with the key.

VRS Dimensions & Specifications

Type WLL (t) VRS Weight (kg) Dimensions (mm) Torque Ref No.
T B C D E G I K L M N VRS

VRS STARPOINT Metric
VRS-F-M6 / VRS-M6 0,1 0,07 28 9 7 20 23 28 13 37 9 M6 6 5 7900909
VRS-F-M8 / VRS-M8 0,3 0,1 35 11 9 25 25 30 16,3 47 12 M8 6 10 7100554
VRS-F-M10 / VRS-M10 0,4 0,1 35 11 9 25 25 30 16,3 47 15 M10 6 10 7100555
VRS-F-M12* / VRS-M12 0,75 0,2 42 13 10 30 30 34 19,8 56 18 M12 8 25 7100556
VRS-F-M14* / VRS-M14 0,75 0,2 42 13 10 30 30 34 19,8 56 18 M14 8 30 7100557
VRS-F-M16* / VRS-M16 1,5 0,33 49 15 13 35 36 40 23,5 65 24 M16 10 60 7100558
VRS-F-M16-SL35* 1,5 N/A  49 15 13 35 36 40 23,5 65 35 M16 10 60 N/A
VRS-F-M18* / VRS-M18 1,5 0,3 49 15 13 35 36 40 23,5 65 24 M18 10 60 7992219
VRS-F-M20 / VRS-M20 2,3 0,5 58 17 16 40 41 50 29,3 76 30 M20 12 115 7100559
VRS-F-M22 / VRS-M22 2,3 0,61 58 17 16 40 41 50 29,3 76 30 M22 12 125 7904625
VRS-F-M24 / VRS-M24 3,2 0,86 70 20 19 49 51 60 35 92 36 M24 14 190 7100560
VRS-M24-SL48 3,2 1 70 20 19 49 51 60 35 92 48 M24 14 190 7990615
VRS-F-M27 / VRS-M27 3,2 0,94 70 20 19 49 51 60 35 92 36 M27 14 250 7904626
VRS-F-M30 / VRS-M30 4,5 1,5 87 26 24 60 66 75 44 114 45 M30 17 330 7100561
VRS-F-M33 / VRS-M33 4,5 1,66 87 26 24 60 66 75 44 114 45 M33 17 350 7904627
VRS-F-M36 / VRS-M36 7 3,5 104 32 29 73 76 98 53 135 54 M36 22 590 7984198
VRS-M36-SL72 7 3,3 104 32 29 73 76 98 53 135 72 M36 22 590 7991247
VRS-F-M42 / VRS-M42 9 4,6 122 36 34 85 86 109 62 157 63 M42 24 925 7984199
VRS-F-M48 / VRS-M48 12 7,44 138 42 38 96 101 128 70 179 72 M48 27 1400 7984200
VRS-M56 16 12 161 50 44 110 112 145 82 210 84 M56 32 1400 7907508
VRS-M64 20 16,4 177 55 49 120 122 158 90 229 96 M64 36 1400 7907509


VRS STARPOINT UNC Thread
Type WLL (t) VRS Weight (kg) Dimensions (mm) Torque Ref No.
T B C D E G I K L M N VRS
VRS-1/4"-20UNC 0,1 0,24 28 9 7 20 23 28 13 37 9 1/4“-20 UNC 1/4“ 5 7999105
VRS-F 5/16"-18UNC 0,3 N/A 35 11 9 25 25 30 16,3 47 12 5/16“-18UNC 1/4“ 10 N/A
VRS-F-/VRS-3/8"-16UNC 0,4 0,09 35 11 9 25 25 30 16,3 47 15 3/8“-16UNC 1/4“ 10 7103959
VRS-F-/VRS-7/16"-14UNC 0,4 0,1 35 11 9 25 25 30 16,3 47 15 7/16“-14UNC 1/4“ 10 7903118
VRS-F-/VRS-1/2"-13UNC 0,75 0,2 42 13 10 30 30 34 19,8 56 18 1/2“-13UNC 5/16“ 25 7103960
VRS-F-/VRS-5/8"-11UNC 1,5 0,3 49 15 13 35 36 40 23,5 65 24 5/8“-11UNC 3/8“ 60 7103961
VRS-F-/VRS-3/4"-10UNC 2,3 0,35 58 17 16 40 41 50 29,5 76 30 3/4“-10UNC 1/2“ 115 7103962
VRS-F-/VRS-7/8"-9UNC 2,3 0,6 58 17 16 40 41 50 29,5 76 32 7/8“-9UNC 1/2“ 115 7103963
VRS-F-/VRS-1"-8UNC 3,2 0,9 70 20 19 49 51 60 35 92 36 1“-8UNC 9/16“ 190 7103964
VRS-F-/VRS-1 1/8"-8UN 3,2 0,9 70 20 19 49 51 60 35 92 36 1 1/8“-8UN 9/16“ 250 7999385
VRS-F-/VRS-1 1/8"-7UNC 3,2 0,9 70 20 19 49 51 60 35 92 36 1 1/8“-7UNC 9/16“ 250 7999384
VRS-1 1/4“-8UN 4,5 1,7 87 26 24 60 66 75 44 114 48 1 1/4“-8UN 5/8“ 330 7998707
VRS-F-/VRS-1 1/4"-7UNC 4,5 1,7 87 26 24 60 66 75 44 114 48 1 1/4“-7UNC 5/8“ 330 7103965
VRS-1 1/2"-8UN 7 2,9 104 32 29 73 76 98 53 135 54 1 1/2“-8UN 7/8“ 590 7991917
VRS-F-/VRS-1 1/2"-6UNC 7 2,9 104 32 29 73 76 98 53 135 54 1 1/2“-6UNC 7/8“ 590 7103966
VRS-F-/VRS-1 3/4"-5UNC 9 4,6 122 36 34 85 86 109 62 157 63 1 3/4“-5UNC 1“ 925 7103967
VRS-F-2"-4,5UNC 12 7 138 42 42 94 100 128 70 180 72 2“-4,5UNC 1 1/8“ 1400 7103968
RUD VRS & VRS/F Dimensions

Alternatives to the RUD VRS Series Swivel Eye Bolts

If you are looking for a similar eyebolt to the RUD VRS, or need a larger eye for example, then it would likely be worthwhile taking a look at the rest of our vast range of swivel eye bolts.

A non-adherence to this advice may result damages of persons and materials!

Metric Measurements

Method of lift Load Method 1 Load Method 2 Load Method 3 Load Method 4 Load Method 5 Load Method 6 Load Method 7 Load Method 8
Number of legs 1 1 2 2 2 2 2 3 and 4 3 and 4 3 and 4
Angle of inclination < ß 0° 90° 0° 90° 0-45° 45-60° unsymmetrical 0-45° 45-60° unsymmetrical
Factor - 1 - 2 1.4 1 1 2.1 1.5 1
Metric Type Imperial Type STARPOINT Lifting Eye - WLL in metric tonnes, bolted and adjusted to the direction of pull
VRS-M6 VRS-1/4"-20UNC 0.5t 0.1t 1.0t 0.2t 0.14t 0.1t 0.1t 0.21t 0.15t 0.1t
VRS-M8 VRS-5/16"-18UNC 1.0t 0.3t 2.0t 0.6t 0.42t 0.3t 0.3t 0.63t 0.45t 0.3t
VRS-M10 VRS-3/8"-16UNC 1.0t 0.4t 2.0t 0.8t 0.56t 0.4t 0.4t 0.84t 0.6t 0.4t
VRS-M12 VRS-1/2"-13UNC 2.0t 0.75t 4.0t 1.5t 1.0t 0.75t 0.75t 1.6t 1.2t 0.75t
VRS-M16 VRS-5/8"-11UNC 4.0t 1.5t 8.0t 3.0t 2.1t 1.5t 1.5t 3.15t 2.25t 1.5t
VRS-M20 VRS-3/4"-10UNC 6.0t 2.3t 12.0t 4.6t 3.22t 2.3t 2.3t 4.83t 3.45t 2.3t
- VRS-7/8"-9UNC
VRS-M24 VRS-1"-8UNC 8.0t 3.2t 16.0t 6.4t 4.48t 3.2t 3.2t 6.7t 4.8t 3.2t
VRS-M30 VRS-1 1/4"-7UNC 12.0t 4.5t 24.0t 9.0t 6.3t 4.5t 4.5t 9.4t 6.7t 4.5t
VRS-M36 VRS-1 1/2"-6UNC 16.0t 7.0t 32.0t 14.0t 9.8t 7.0t 7.0t 14.7t 10.5t 7.0t
VRS-M42 VRS-1 3/4"-5UNC 24.0t 9.0t 48.0t 18.0t 12.6t 9.0t 9.0t 18.9t 13.5t 9.0t
VRS-M48 VRS-2"-4.5UNC 32.0t 12.0t 64.0t 24.0t 16.8t 12.0t 12.0t 25.2t 18.0t 12.0t



TBC

Contact Us About This Product

If you wish to receive a quote for this product, please use the tab, this form is for general enquiries regarding this product only.

Regarding: RUD VRS Starpoint Rotating Eye Bolt
Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

qrcode
Part N° Type with Star key locking device Thread WLL (t) Weight (kg) Sale Price (Ex. VAT) Quantity
54-T25248
7900909 		VRS No M6 0.1 0.07
( £47.14 )
£ 36.53
54-T25249
7100554 		VRS No M8 0.3 0.1
( £40.11 )
£ 31.08
54-T25250
7100555 		VRS No M10 0.4 0.1
( £40.49 )
£ 31.37
54-T25251
7100556 		VRS No M12 0.75 0.2
( £49.96 )
£ 38.71
54-T25252
7100557 		VRS No M14 0.75 0.2
( £81.22 )
£ 62.94
54-T25253
7100558 		VRS No M16 1.5 0.33
( £56.87 )
£ 44.07
54-T25254
7992219 		VRS No M18 1.5 0.3
( £69.71 )
£ 54.02
54-T25255
7100559 		VRS No M20 2.3 0.5
( £81.07 )
£ 62.82
54-T25256
7904625 		VRS No M22 2.3 0.61
( £89.79 )
£ 69.58
54-T25257
7100560 		VRS No M24 3.2 0.86
( £105.39 )
£ 81.67
54-T25258
7990615 		VRS No M24-SL48 3.2 1 Quote Required
54-T25259
7904626 		VRS No M27 3.2 0.94
( £123.81 )
£ 95.95
54-T25260
7100561 		VRS No M30 4.5 1.5
( £152.53 )
£ 118.21
54-T25261
7904627 		VRS No M33 4.5 1.66
( £209.13 )
£ 162.07
54-T25262
7984198 		VRS No M36 7 3.5
( £224.39 )
£ 173.90
54-T25263
7991247 		VRS No M36-SL72 7 3.3 Quote Required
54-T25264
7984199 		VRS No M42 9 4.6
( £310.20 )
£ 240.40
54-T25265
7984200 		VRS No M48 12 7.44
( £389.47 )
£ 301.83
54-T25266
7907508 		VRS No M56 16 12
( £929.28 )
£ 720.19
54-T25267
7907509 		VRS No M64 20 16.4
( £1,241.51 )
£ 962.17
Availability Usually 1-2 Days (Next working day delivery may be possible) - 1pm cut-off
Additional Information Please note that this may be subject to change, particularly on larger capacity units, units with custom thread lengths, or some units with a metric fine thread. For urgent orders, please contact our sales team, who will gladly assist.
Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.
