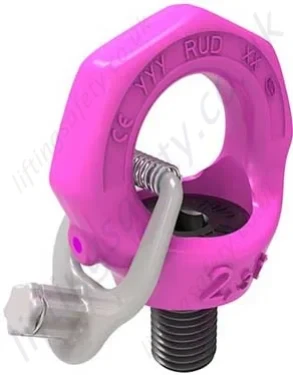

RUD VRS-F Starpoint Rotating Eye Bolt

RUD VRS-F Starpoint Rotating Eye Bolt

RUD starpoint eye bolts with option of metric, metric fine (M6-M64) or UNC (1/4"-2" UNC) threads. Lifting capacities up to 20 tonnes.

Model:

RUD VRS-F / RVSR-5633

RUD VRS-F Starpoint Rotating Eye Bolt

Vrs F Swivel Eye Bolt With Key Vrsf Vario Long Thread Lifting Point Vrsf 90 Degree Lift Vrs F Fitted Vrs F Vertical Lift

VRS-F Swivel Eye Bolt

  • Star-shaped design, a clear distinction from the DIN 580 eye bolt. With a striking fluorescent pink powder coating.
  • 4:1 Safety factor.
  • Capacity ranges from 100kg to 12,000kg.
  • Full working load in all directions.
  • Several times higher WLL than the DIN 580 eye bolt.
  • DGUV-approval.
  • Range of rotation: 360°. A fixed, non-rotating version is also available; see the RUD RS grade 80 eye bolt, as well as a fixed female eye nut, the RUD RM, or see the RUD VRM for a rotating eye nut version.
  • Maximum operation temperature range WITHOUT reduction of WLL -40 °C to 100 °C.
  • Maximum operation temperature WITH reduction of WLL 300°C Max.
  • Clear marking of the minimum WLL for all loading directions. Higher WLL is possible when the location and installation are optimised (compare WLL chart/product information).
  • Non-exchangeable special bolt (this reduces the usage of improper standard bolts).

RUD VRS Eyebolt
VRS Swivel Eye Bolt No Key


The VRS Standard does not include the locking device (StarKey), which makes the eye bolt adjustable.

RUD VRS-F Eyebolt
VRS-F Swivel Eye Bolt With Key


The VRS-F Can be fixed in position or made adjustable by disengaging the StarKey (locking device). Stock levels tend to be better with the key.

VRS-F & VRS-F Varios Dimensions & Specifications

Type WLL (t) VRS-F Weight (kg) Dimensions (mm) Torque Ref No.
T B C D E G I K L M N VRS-F

VRS-F STARPOINT Metric
VRS-F-M6 / VRS-M6 0,1 0,07 28 9 7 20 23 28 13 37 9 M6 6 5 7900906
VRS-F-M8 / VRS-M8 0,3 0,12 35 11 9 25 25 30 16,3 47 12 M8 6 10 8500911
VRS-F-M10 / VRS-M10 0,4 0,12 35 11 9 25 25 30 16,3 47 15 M10 6 10 7104029
VRS-F-M12* / VRS-M12 0,75 0,2 42 13 10 30 30 34 19,8 56 18 M12 8 25 7101313
VRS-F-M14* / VRS-M14 0,75 0,21 42 13 10 30 30 34 19,8 56 18 M14 8 30 7999330
VRS-F-M16* / VRS-M16 1,5 0,3 49 15 13 35 36 40 23,5 65 24 M16 10 60 7101314
VRS-F-M16-SL35* 1,5 0,3 49 15 13 35 36 40 23,5 65 35 M16 10 60 7983306
VRS-F-M18* / VRS-M18 1,5 0,35 49 15 13 35 36 40 23,5 65 24 M18 10 60 7903387
VRS-F-M20 / VRS-M20 2,3 0,5 58 17 16 40 41 50 29,3 76 30 M20 12 115 7101315
VRS-F-M22 / VRS-M22 2,3 0,5 58 17 16 40 41 50 29,3 76 30 M22 12 125 7992197
VRS-F-M24 / VRS-M24 3,2 0,8 70 20 19 49 51 60 35 92 36 M24 14 190 7101316
VRS-M24-SL48 3,2 N/A  70 20 19 49 51 60 35 92 48 M24 14 190 N/A
VRS-F-M27 / VRS-M27 3,2 1 70 20 19 49 51 60 35 92 36 M27 14 250 7994138
VRS-F-M30 / VRS-M30 4,5 1 87 26 24 60 66 75 44 114 45 M30 17 330 7101317
VRS-F-M33 / VRS-M33 4,5 1,8 87 26 24 60 66 75 44 114 45 M33 17 350 7993439
VRS-F-M36 / VRS-M36 7 3,5 104 32 29 73 76 98 53 135 54 M36 22 590 7984201
VRS-M36-SL72 7 N/A  104 32 29 73 76 98 53 135 72 M36 22 590 N/A
VRS-F-M42 / VRS-M42 9 4,9 122 36 34 85 86 109 62 157 63 M42 24 925 7984202
VRS-F-M48 / VRS-M48 12 7 138 42 38 96 101 128 70 179 72 M48 27 1400 7984203
VRS-M56 16 N/A  161 50 44 110 112 145 82 210 84 M56 32 1400 N/A
VRS-M64 20 N/A  177 55 49 120 122 158 90 229 96 M64 36 1400 N/A


VRS-F STARPOINT metric with longer Vario bolt
Type WLL (t) VRS-F Weight (kg) Dimensions (mm) Torque Ref No.
T B C D E G I K L M N VRS-F
VRS-F-M10 0,4 ** 35 11 9 25 25 30 16,3 47 16-70 M10 6 10 8600270
VRS-F-M12 0,75 ** 42 13 10 30 30 34 19,8 56 19-150 M12 8 25 8600271
VRS-F-M16 1,5 ** 49 15 13 35 36 40 23,5 65 16-120 M16 10 60 8600272
VRS-F-M20 2,3 ** 58 17 16 40 41 50 29,3 76 31-160 M20 12 115 8600273
VRS-F-M24 3,2 ** 70 20 19 49 51 60 35 92 37-140 M24 14 190 8600274
VRS-F-M30 4,5 ** 87 26 24 60 66 75 44 114 46-190 M30 17 330 8600275


VRS-F STARPOINT – Metric Fine Thread
Type WLL (t) VRS-F Weight (kg) Dimensions (mm) Torque Ref No.
T B C D E G I K L M N VRS-F
VRS-F-M8 × 1   0,3 35 11 9 25 25 30 16,3 47 12 M8 x 1 6 10 7904332
VRS-F-M12 × 1,5   0,75 42 13 10 30 30 34 19,8 56 18 M12 x 1,5 8 25 7902929
VRS-F-M16 × 1,5   1,5 49 15 13 35 36 40 23,5 65 24 M16 x 1,5 10 60 7902676
VRS-F-M20 × 2   2,3 58 17 16 40 41 50 29,3 76 30 M20 x 2 12 115 7992634
VRS-F-M24 × 2   3,2 70 20 19 49 51 60 35 92 36 M24 x 2 14 190 7992566
VRS-F-M30 × 2   4,5 87 26 24 60 66 75 44 114 45 M30 x 2 17 330 7991856
VRS-M36 × 3   7 104 32 29 73 76 98 53 135 54 M36 x 3 22 590 7992728


VRS-F STARPOINT UNC Thread
Type WLL (t) VRS-F Weight (kg) Dimensions (mm) Torque Ref No.
T B C D E G I K L M N VRS-F
VRS-1/4"-20UNC 0,1 N/A  28 9 7 20 23 28 13 37 9 1/4“-20 UNC 1/4“ 5 N/A
VRS-F 5/16"-18UNC 0,3 0,13 35 11 9 25 25 30 16,3 47 12 5/16“-18UNC 1/4“ 10 7999106
VRS-F-/VRS-3/8"-16UNC 0,4 0,12 35 11 9 25 25 30 16,3 47 15 3/8“-16UNC 1/4“ 10 7104480
VRS-F-/VRS-7/16"-14UNC 0,4 0,12 35 11 9 25 25 30 16,3 47 15 7/16“-14UNC 1/4“ 10 7904195
VRS-F-/VRS-1/2"-13UNC 0,75 0,22 42 13 10 30 30 34 19,8 56 18 1/2“-13UNC 5/16“ 25 7104481
VRS-F-/VRS-5/8"-11UNC 1,5 0,33 49 15 13 35 36 40 23,5 65 24 5/8“-11UNC 3/8“ 60 7104482
VRS-F-/VRS-3/4"-10UNC 2,3 0,45 58 17 16 40 41 50 29,5 76 30 3/4“-10UNC 1/2“ 115 7104483
VRS-F-/VRS-7/8"-9UNC 2,3 0,64 58 17 16 40 41 50 29,5 76 32 7/8“-9UNC 1/2“ 115 7104484
VRS-F-/VRS-1"-8UNC 3,2 0,98 70 20 19 49 51 60 35 92 36 1“-8UNC 9/16“ 190 7104485
VRS-F-/VRS-1 1/8"-8UN 3,2 0,98 70 20 19 49 51 60 35 92 36 1 1/8“-8UN 9/16“ 250 7903386
VRS-F-/VRS-1 1/8"-7UNC 3,2 0,98 70 20 19 49 51 60 35 92 36 1 1/8“-7UNC 9/16“ 250 8903383
VRS-1 1/4“-8UN 4,5 N/A 87 26 24 60 66 75 44 114 48 1 1/4“-8UN 5/8“ 330 N/A
VRS-F-/VRS-1 1/4"-7UNC 4,5 1,82 87 26 24 60 66 75 44 114 48 1 1/4“-7UNC 5/8“ 330 7104486
VRS-1 1/2"-8UN 7 N/A 104 32 29 73 76 98 53 135 54 1 1/2“-8UN 7/8“ 590 N/A
VRS-F-/VRS-1 1/2"-6UNC 7 3,6 104 32 29 73 76 98 53 135 54 1 1/2“-6UNC 7/8“ 590 7104487
VRS-F-/VRS-1 3/4"-5UNC 9 4,95 122 36 34 85 86 109 62 157 63 1 3/4“-5UNC 1“ 925 7104488
VRS-F-2"-4,5UNC 12 7,6 138 42 42 94 100 128 70 180 72 2“-4,5UNC 1 1/8“ 1400 7104489
RUD VRS & VRS/F Dimensions

Alternatives to the RUD VRS Series Swivel Eye Bolts

If you are looking for a similar eyebolt to the RUD VRS, or need a larger eye for example, then it would likely be worthwhile taking a look at the rest of our vast range of swivel eye bolts.

A non-adherence to this advice may result damages of persons and materials!

Metric Measurements

Method of lift Load Method 1 Load Method 2 Load Method 3 Load Method 4 Load Method 5 Load Method 6 Load Method 7 Load Method 8
Number of legs 1 1 2 2 2 2 2 3 and 4 3 and 4 3 and 4
Angle of inclination < ß 0° 90° 0° 90° 0-45° 45-60° unsymmetrical 0-45° 45-60° unsymmetrical
Factor - 1 - 2 1.4 1 1 2.1 1.5 1
Metric Type Imperial Type STARPOINT Lifting Eye - WLL in metric tonnes, bolted and adjusted to the direction of pull
VRS-M6 VRS-1/4"-20UNC 0.5t 0.1t 1.0t 0.2t 0.14t 0.1t 0.1t 0.21t 0.15t 0.1t
VRS-M8 VRS-5/16"-18UNC 1.0t 0.3t 2.0t 0.6t 0.42t 0.3t 0.3t 0.63t 0.45t 0.3t
VRS-M10 VRS-3/8"-16UNC 1.0t 0.4t 2.0t 0.8t 0.56t 0.4t 0.4t 0.84t 0.6t 0.4t
VRS-M12 VRS-1/2"-13UNC 2.0t 0.75t 4.0t 1.5t 1.0t 0.75t 0.75t 1.6t 1.2t 0.75t
VRS-M16 VRS-5/8"-11UNC 4.0t 1.5t 8.0t 3.0t 2.1t 1.5t 1.5t 3.15t 2.25t 1.5t
VRS-M20 VRS-3/4"-10UNC 6.0t 2.3t 12.0t 4.6t 3.22t 2.3t 2.3t 4.83t 3.45t 2.3t
- VRS-7/8"-9UNC
VRS-M24 VRS-1"-8UNC 8.0t 3.2t 16.0t 6.4t 4.48t 3.2t 3.2t 6.7t 4.8t 3.2t
VRS-M30 VRS-1 1/4"-7UNC 12.0t 4.5t 24.0t 9.0t 6.3t 4.5t 4.5t 9.4t 6.7t 4.5t
VRS-M36 VRS-1 1/2"-6UNC 16.0t 7.0t 32.0t 14.0t 9.8t 7.0t 7.0t 14.7t 10.5t 7.0t
VRS-M42 VRS-1 3/4"-5UNC 24.0t 9.0t 48.0t 18.0t 12.6t 9.0t 9.0t 18.9t 13.5t 9.0t
VRS-M48 VRS-2"-4.5UNC 32.0t 12.0t 64.0t 24.0t 16.8t 12.0t 12.0t 25.2t 18.0t 12.0t



TBC

Contact Us About This Product

If you wish to receive a quote for this product, please use the tab, this form is for general enquiries regarding this product only.

Regarding: RUD VRS-F Starpoint Rotating Eye Bolt
Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

qrcode
Part N° Type Thread WLL (t) Weight (kg) Sale Price (Ex. VAT) Quantity
5633-T29325 VRS-F M6 0.1 0.07
( £55.20 )
£ 42.78
5633-T29326 VRS-F M8 0.3 0.12
( £45.58 )
£ 35.32
5633-T29327 VRS-F M10 0.4 0.12
( £45.58 )
£ 35.32
5633-T29328 VRS-F M12 0.75 0.2
( £56.26 )
£ 43.60
5633-T29329 VRS-F M14 0.75 0.21
( £66.77 )
£ 51.74
5633-T29330 VRS-F M16 1.5 0.3
( £64.99 )
£ 50.36
5633-T29331 VRS-F M16-SL35 1.5 0.3 Quote Required
5633-T29332 VRS-F M18 1.5 0.35
( £76.56 )
£ 59.33
5633-T29333 VRS-F M20 2.3 0.5
( £85.82 )
£ 66.51
5633-T29334 VRS-F M22 2.3 0.5
( £97.95 )
£ 75.91
5633-T29335 VRS-F M24 3.2 0.8
( £114.12 )
£ 88.44
5633-T29336 VRS-F M27 3.2 1
( £132.65 )
£ 102.80
5633-T29337 VRS-F M30 4.5 1
( £178.76 )
£ 138.53
5633-T29338 VRS-F M33 4.5 1.8
( £221.67 )
£ 171.79
5633-T29339 VRS-F M36 7 3.5
( £238.76 )
£ 185.03
5633-T29340 VRS-F M42 9 4.9
( £333.49 )
£ 258.45
5633-T29341 VRS-F M48 12 7
( £414.87 )
£ 321.52
