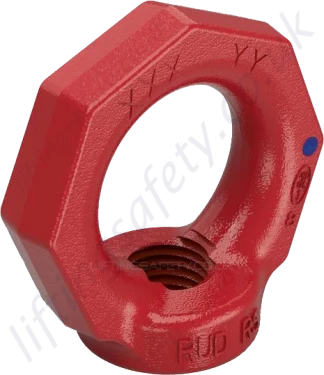

RUD RM Grade 8 Eye Nut (Non Swivel)

Grade 8 lifting eye nuts with options of metric (M6-M48) or imperial thread (Pipe, UNC & BSW - 3/8" to 1-1/4"). 100kg to 8.0 tonne lifting capacity options.

Model:

RUD RM

Quick Ref:

G8EN-53

RM Eye Nut Features

Quick and easy installation.
4:1 Safety factor.
Metric thread range: M6 to M48.
Imperial thread range: 3/8" to 1-1/4".
Capacity range: 100kg to 8000kg.
Clear marking of the minimum WLL.
Considerably higher WLL in comparison to DIN 582.
Maximum operation temperature range WITHOUT reduction of WLL -40°–200°C.
Maximum operation temperature WITH reduction of WLL 400°C max.

If the RUD RM isn't quite what you are looking for, there is a good chance that we will have another lifting eye that will meet your needs. Take a look to find out more, or get in touch if we can be of any help.

Dimensions & Specifications

Type	WLL (t)	Weight (kg)	Dimensions (mm)						Thread Size (M)	Ref No.
Type	WLL (t)	Weight (kg)	T	A	B	C	D	E	Thread Size (M)	Ref No.
RM with metric thread
RM M6	0.1	0.1	34	11	11	10	25	25	M6	55254
RM M8	0.2	0.1	34	11	11	10	25	25	M8	55255
RM M10	0.25	0.1	34	11	11	10	25	25	M10	55258
RM M12	0.4	0.16	41	12	13	12	30	30	M12	55271
RM M14	0.75	0.26	48	13	15	14	35	35	M14	55281
RM M16	0.8	0.26	48	13	15	14	35	35	M16	55460
RM M18	1.2	0.4	55	16	17	16	40	40	M18	55342
RM M20	1.5	0.4	55	16	17	16	40	40	M20	55343
RM M22	1.5	0.7	70	20	21	20	50	50	M22	55387
RM M24	2	0.7	70	20	21	20	50	50	M24	55394
RM M27	2	1.35	85	25	26	24	60	60	M27	55399
RM M30	3	1.32	85	25	26	24	60	60	M30	55438
RM M33	3	5.8	130	37	43	38	90	100	M33	7994437
RM M36	4	5.8	130	37	43	38	90	100	M36	53093
RM M39	5	5.6	130	37	43	38	90	100	M39	7904790
RM M42	6	5.5	130	37	43	38	90	100	M42	53095
RM M48	8	5.3	130	37	43	38	90	100	M48	53098

RM with metric fine thread
RM M14 × 1.5	0.75	0.26	48	13	15	14	35	35	M14 × 1.5	7902750
RM M18 × 1.5	1.2	0.4	55	16	17	16	40	40	M18 × 1.5	7902751
RM M24 × 2	2	0,7	70	20	21	20	50	50	M24 × 2	7907625
RM M27 × 2	2	1.35	85	25	26	24	60	60	M27 × 2	7901995
RM M48 × 3	8	5.3	130	37	43	38	90	100	M48 × 3	7995961

RM eye nut with pipe thread ISO 228-1
RM G 1/4"	0.4	0.16	41	14	13	12	30	30	G 1/4"	7998753
RM G 1/2"	1.5	0.39	55	18	17	16	40	40	G 1/2"	7998754
RM G 3/4"	2	0.74	70	22	21	20	50	50	G 3/4"	7998755

RM with UNC Thread
RM 3/8"-16UNC	0.2	0.1	34	12	11	10	25	25	3/8"-16UNC	7101103
RM 1/2"-13UNC	0.35	0.17	41	14	13	12	30	30	1/2"-13UNC	7101104
RM 5/8"-11UNC	0.75	0.29	48	16	15	14	35	35	5/8"-11UNC	7101105
RM 3/4"-10UNC	1.2	0.39	55	18	17	16	40	40	3/4"-10UNC	7101106
RM 7/8"-9UNC	1.5	0.7	70	22	21	20	50	50	7/8"-9UNC	7101107
RM 1"-8UNC	2	1.4	85	28	26	24	60	60	1"-8UNC	7101108
RM 1 1/4"-7UNC	3	1.35	85	28	26	24	60	60	1 1/4"-7UNC	7982594

RM with BSW Thread
RM 1/2"-BSW	0.35	0.17	41	14	13	12	30	30	1/2"-BSW	7993984
RM 5/8"-BSW	0.75	0.3	48	16	15	14	35	35	5/8"-BSW	7993985
RM 3/4"-BSW	1.2	0.42	55	18	17	16	40	40	3/4"-BSW	7993986
RM 7/8"-BSW	1.5	0.7	70	22	21	20	50	50	7/8"-BSW	7993988
RM 1"-BSW	2	0.7	70	22	21	20	50	50	1"-BSW	7993989
RM 1 1/8"-BSW	2.5	1.3	85	28	26	24	60	60	1 1/8"-BSW	7994198

Subject to technical modifications

NOTE: WLL of the RM are only in effect when using a quality grade 8.8 threaded bolt, min. A threaded bolt of quality grade 8.8 must be crack tested.

A non-adherence to this advice may result damages of persons and materials!

Table 1

Method of Lift
Number of Legs	1		2	2	2	2	2	3 and 4	3 and 4	3 and 4
Angle of Inclination < ß	0°	90°	0°	90°	0-45°	45-60°	unsymmetrical	0-45°	45-60°	unsymmetrical
Metric type	RUD Eyenut - WLL in metric tonnes, Bolted
RM-M6	400kg	100kg	800kg	For These kind of lifting purposes we recommend lifting point which can be adjusted to direction of pull.
RM-M8	800kg	200kg	1.6 t
RM-M10	1t	250kg	2t
RM-M12	1.6t	400kg	3.2t
RM-M14 (M14 x 1.5)	3t	750kg	6t
RM-M16 (M16 x 1.5)	3.2t	800kg	6.4t
RM-M18 (M18 x 1.5)	4.8t	1.2t	9.6t
RM-M20	6t	1.5t	12t
RM-M22 (M22 x 1.5)	6t	1.5t	12t
RM-M24 (M24 x 2)	8t	2t	16t
RM-M27 (M27 x 2)	8t	2t	16t
RM-M30	12t	3t	24t
RM-M33	12t	3t	24t
RM-M36	16t	4t	32t
RM-M39	20t	5t	40t
RM-M42	24t	6t	48t
RM-M48 (M48 x 3)	32t	8t	64t

Rud RM Eye Nut Instructions

(approx. 0.3Mb)

Contact Us About This Product

If you wish to receive a quote for this product, please use the tab, this form is for general enquiries regarding this product only.

Regarding: RUD RM Grade 8 Eye Nut (Non Swivel)

Full Name: *

Email Address: *

Telephone:

Country:

Subject: *

Message: *

Attachment: - Optional
(jpg,gif,png,webp,pdf,doc,xls)

I agree to the Terms & Conditions and the Terms & Conditions of Export (if applicable). I agree to having my data stored in accordance with the Privacy Policy. I want to get exclusive email offers.

Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

Thread Type

Part N°	Type	WLL (t)	Thread	Weight (kg)	Min. Order Qty.	Sale Price
53-T25113 55254	RM M6	0.1	M6	0.1	N/A	£59.60 £46.19 Inc. VAT £49.67 £38.49 Ex. VAT
53-T25114 55255	RM M8	0.2	M8	0.1	N/A	£62.60 £48.52 Inc. VAT £52.17 £40.43 Ex. VAT
53-T25115 55258	RM M10	0.25	M10	0.1	N/A	£64.10 £49.68 Inc. VAT £53.42 £41.40 Ex. VAT
53-T25128 55271	RM M12	0.4	M12	0.16	N/A	£72.43 £56.12 Inc. VAT £60.36 £46.77 Ex. VAT
53-T25129 55281	RM M14	0.75	M14	0.26	N/A	£86.54 £67.07 Inc. VAT £72.12 £55.89 Ex. VAT
53-T25130 55460	RM M16	0.8	M16	0.26	N/A	£92.95 £72.04 Inc. VAT £77.46 £60.03 Ex. VAT
53-T25131 55342	RM M18	1.2	M18	0.4	Min. order 10 pieces	£123.70 £95.87 Inc. VAT £103.09 £79.89 Ex. VAT
53-T25132 55343	RM M20	1.5	M20	0.4	N/A	£101.43 £78.61 Inc. VAT £84.53 £65.51 Ex. VAT
53-T25133 55387	RM M22	1.5	M22	0.7	Min. order 20 pieces	Quote Required
53-T25134 55394	RM M24	2	M24	0.7	N/A	£127.78 £99.02 Inc. VAT £106.49 £82.52 Ex. VAT
53-T25135 55399	RM M27	2	M27	1.35	N/A	£200.62 £155.48 Inc. VAT £167.19 £129.57 Ex. VAT
53-T25136 55438	RM M30	3	M30	1.32	N/A	£184.17 £142.73 Inc. VAT £153.48 £118.94 Ex. VAT
53-T25137 7994437	RM M33	3	M33	5.8	N/A	Quote Required
53-T25138 53093	RM M36	4	M36	5.8	N/A	£532.45 £412.64 Inc. VAT £443.71 £343.87 Ex. VAT
53-T25139 7904790	RM M39	5	M39	5.6	Min. order 10 pieces	Quote Required
53-T25140 53095	RM M42	6	M42	5.5	N/A	£543.34 £421.09 Inc. VAT £452.79 £350.91 Ex. VAT
53-T25141 53098	RM M48	8	M48	5.3	N/A	£572.83 £443.94 Inc. VAT £477.36 £369.95 Ex. VAT
Availability Usually 1-2 Days (Next working day delivery may be possible) - 1pm cut-off					More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page

Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.
