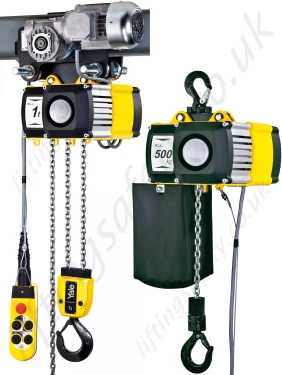

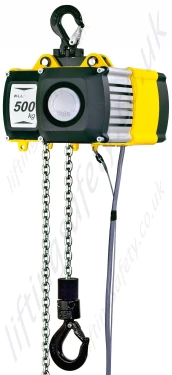

Yale CPV Electric Chain Hoist, 230v 1ph or 400v 3ph, 250kg to 5000kg Capacity

Hook/Lug suspended or trolley mounted (manual/electric). Many options such as food grade lubrication, stainless load chain and stainless hook block.

Model:

CPV / CPVF / YCEC-4989


The electric chain hoist model CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor and gearbox.

Features

  • Classification 1 Am/M4. For 1-phase hoists: 1 Bm/M3. As required (with appropriate changes to lifting capacity resp. duty cycle) the model CPV can also be re-classified up to 3m/M6.
  • Main contactor as standard, for increased safety.
  • Increased operating safety through 42 V control voltage (low voltage control), push-button pendant control, IP 65.
  • 2 year warranty (excluding wear parts) and a lifetime lubricated gearbox.
  • Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
  • Motor protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.
  • The easily adjustable slip clutch is designed to guaranteea permanent connection between the load and the brake.
  • The standard, oil bath lubricated and case hardened gearbox has a helical gearing for particularly smooth running and enhanced lifetime. The models CPV/F 2-8 and 5-4, CPV 2-4 and 5-2 as well as CPV/F 25-8 and 50-4 have a sealed gearbox with lifetime lubrication.

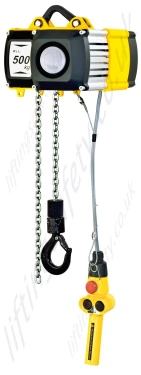

  • Suspension lug for compact dimensions and easy integration in closed-eye constructions. The hoists are also available with top hook suspension.
  • All-steel chain guide. The models CPV/F 2-8 and 5-4 as well as CPV 2-4 and 5-2 have a thermoplastic (POM) chain guide that is integral with the housing.
  • Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.

Options

  • Stainless steel load chain (no reduction of working load limit)
  • Stainless steel load hooks for single fall hoists
  • Food industry approved gearbox lubricants
  • Suspension hook

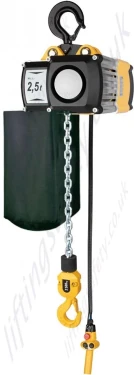

  • Flexible chain container.
  • Other operating voltages
  • Counter for operating hours and number of starts
  • Radio remote control
  • Control for synchronized operation of several hoists
  • Manual and electric trolleys
  • Festooned cables systems and alternative power supplies
  • Suspension for light crane systems

Technical Specifications - CPV / CPVF - 400v, 3-phase, 50Hz

Model EAN-No. 4025092* 4053981** Capacity in kg/ number of falls Chain dimensions d x p (mm)

Classification FEM/ISO

Lifting speed main (m/min) Lifting speed fine (m/min) Hoist Motor (kW) Motor rating (ED %) Weight ¹ suspension lug kg Weight ¹ push trolley ² kg Weight ¹ electric trolley ³ kg
CPV 2-8 250/1 4 x 12.2 1 Am/M4 8 0.37 50 on request on request on request
CPVF 2-8 **874067 250/1 4 x 12.2 1 Am/M4 8 2 0.37/0.09 33/17 19 28 33
CPVF 2-18 *925341 250/1 5 x15.1 1 Am/M4 18 4.5 0.75/0.18 33/17 27 42 50
CPV 5-4 500/2 4 x 12.2 1 Am/M4 4 0.37 50 on request on request on request
CPVF 5-4 **874074 500/2 4 x 12.2 1 Am/M4 4 1 0.37/0.09 33/17 19 28 33
CPV 5-8 *173766 500/1 5 x 15.1 1 Am/M4 8 0.75 50 26 41 49
CPVF 5-8 *173803 500/1 5 x 15.1 1 Am/M4 8 2 0.75/0.18 33/17 27 42 50
CPVF 5-18 *303729 500/1 7.1 x 20.5 1 Am/M4 18 4.5 1.5/0.37 33/17 59 78 85
CPV 10-4 *174473 1000/2 5 x 15.1 1 Am/M4 4 0.75 50 28 43 51
CPVF 10-4 *174725 1000/2 5 x 15.1 1 Am/M4 4 1 0.75/0.18 33/17 29 44 52
CPV 10-8 *173797 1000/1 7.1 x 20.5 1 Am/M4 8 1.5 50 58 77 84
CPVF 10-8 *173780 1000/1 7.1 x 20.5 1 Am/M4 8 2 1.5/0.37 33/17 59 78 85
CPV 20-4 *174480 2000/2 7.1 x 20.5 1 Am/M4 4 1.5 50 63 82 89
CPVF 20-4 *174459 2000/2 7.1 x 20.5 1 Am/M4 4 1 1.5/0.37 33/17 64 83 90
CPVF 25-8 **979168 2500/1 11 x 31 1 Am/M4 8 2 3.6/0.9 33/17 85 147 161
CPVF 50-4 **979175 5000/2 11 x 31 1 Am/M4 4 1 3.6/0.9 33/17 on request on request on request

1 Weight at standard lift (3 m). Other lifting heights on request.

2 For trolleys type A and B: Additional weight for geared trolley (VTG): 2.5 kg

3 For electric trolley (VTE) with 2 speeds +2.0 kg

Technical Specifications = CPV - 230v, 1-phase, 50Hz

Model EAN-No. 4025092* 4053981** Capacity in kg/ number of falls Chain dimensions d x p (mm)

Classification FEM/ISO

Lifting speed main (m/min) Lifting speed fine (m/min) Hoist Motor (kW) Motor rating (ED %)
CPV 2-4 250/1 4 x 12.2 1 Bm/M3 4 0.37 25
CPV 5-2 500/2 4 x 12.2 1 Bm/M3 2 0.37 25
CPV 5-8 *248792 500/1 5 x 15.1 1 Bm/M3 8 0.75 25
CPV 10-4 *248808 1000/2 5 x 15.1 1 Bm/M3 4 0.75 25
CPV 10-4/1 *248815 1000/1 7.1 x 20.5 1 Bm/M3 4 1.5 25
CPV 20-2 *248822 2000/2 7.1 x 20.5 1 Bm/M3 2 1.5 25

Technical Data - Trolleys

Suitable for model Capacity (kg) Size Beam flange width (b) (mm) Beam flange thickness (t max.) (mm) Curve radius min. (m) Electric trolley travel speed (m/min) at 50Hz Electric trolley motor (kW) at 50 Hz
CPV/CPVF 2-8 up to CPV/CPVF 5-4 500 A 58 - 180 12 0.9 11 or 18 0.09
CPV/CPVF 2-8 up to CPV/CPVF 5-4 500 B 180 - 300 19 0.9 11 or 18 0.09
CPV 5-8 up to CPVF 10-4 1000 A 58 - 180 19 0.9 18 or 18/4.5 0.18 or 0.18/0.06
CPV 5-8 up to CPVF 10-4 1000 B 180 - 300 19 0.9 18 or 18/4.5 0.18 or 0.18/0.06
CPV 10-8 up to CPVF 20-4 2000 A 58 - 180 19 1.15 18 or 18/4.5 0.18 or 0.18/0.06
CPV 10-8 up to CPVF 20-4 2000 B 180 - 300 19 1.15 18 or 18/4.5 0.18 or 0.18/0.06
CPVF 25-8 up to CPVF 50-4 5000 A 98 - 180 27 2 11 or 11/2.8 0.37 or 0.3/0.09
CPVF 25-8 up to CPVF 50-4 5000 B 180 - 300 27 1.8 11 or 11/2.8 0.37 or 0.3/0.09

Yale chain hoists: General Information

Yale chain hoists convince through their compact, elegant design, low tare weight and their robust construction.
A precision machined, case hardened load chain sheave perfectly matched to the load chain, oilbath lubricated gearbox with hardened gears and high quality encapsulated bearings ensure smooth, quiet operation.

The adjustable slip clutch, fitted as an overload safety device, is engineered for low maintenance and also serves as an overrun protection for the highest and lowest load hook positions.

The pendant control is fitted with an emergency-stop switch as standard.

Forged suspension and load hooks, manufactured from non-ageing, high alloy tempering steel, yield under overload instead of breaking.

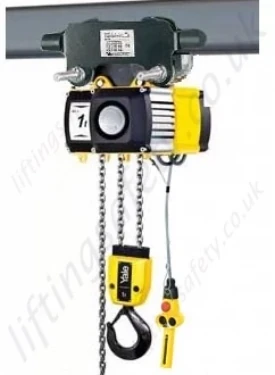

Apart from the stationary configurations (hook suspension) manual push, geared and electric trolleys are available. The trolleys are suitable for all commercial beam profiles e.g. INP, IPE and IPB.

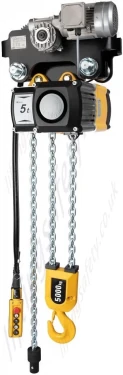

The electric trolleys are fitted with a self-braking worm gearbox. The surface protected, high tensile load chains are in accordance with national and international standards and regulations (DIN EN 818).

dimensional-specifications.pdf

Full dimensional specifications for the Yale CPV Hoist range

Dimensional information for lug, hook and trolley suspended CPV hoists - All models
(approx. 0.2Mb)

The electric chain hoist model CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor and gearbox.

Features

  • Classification 1 Am/M4. For 1-phase hoists: 1 Bm/M3. As required (with appropriate changes to lifting capacity resp. duty cycle) the model CPV can also be re-classified up to 3m/M6.
  • Main contactor as standard, for increased safety.
  • Increased operating safety through 42 V control voltage (low voltage control), push-button pendant control, IP 65.
  • 2 year warranty (excluding wear parts) and a lifetime lubricated gearbox.
  • Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
  • Motor protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.
  • The easily adjustable slip clutch is designed to guaranteea permanent connection between the load and the brake.
  • The standard, oil bath lubricated and case hardened gearbox has a helical gearing for particularly smooth running and enhanced lifetime. The models CPV/F 2-8 and 5-4, CPV 2-4 and 5-2 as well as CPV/F 25-8 and 50-4 have a sealed gearbox with lifetime lubrication.
  • Suspension lug for compact dimensions and easy integration in closed-eye constructions. The hoists are also available with top hook suspension.
  • All-steel chain guide. The models CPV/F 2-8 and 5-4 as well as CPV 2-4 and 5-2 have a thermoplastic (POM) chain guide that is integral with the housing.
  • Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.

Options

  • Stainless steel load chain (no reduction of working load limit)
  • Stainless steel load hooks for single fall hoists
  • Food industry approved gearbox lubricants
  • Suspension hook
  • Flexible chain container.
  • Other operating voltages
  • Counter for operating hours and number of starts
  • Radio remote control
  • Control for synchronized operation of several hoists
  • Manual and electric trolleys
  • Festooned cables systems and alternative power supplies
  • Suspension for light crane systems

Technical Specifications - CPV / CPVF - 400v, 3-phase, 50Hz

Model EAN-No. 4025092* 4053981** Capacity in kg/ number of falls Chain dimensions d x p (mm)

Classification FEM/ISO

Lifting speed main (m/min) Lifting speed fine (m/min) Hoist Motor (kW) Motor rating (ED %) Weight ¹ suspension lug kg Weight ¹ push trolley ² kg Weight ¹ electric trolley ³ kg
CPV 2-8 250/1 4 x 12.2 1 Am/M4 8 0.37 50 on request on request on request
CPVF 2-8 **874067 250/1 4 x 12.2 1 Am/M4 8 2 0.37/0.09 33/17 19 28 33
CPVF 2-18 *925341 250/1 5 x15.1 1 Am/M4 18 4.5 0.75/0.18 33/17 27 42 50
CPV 5-4 500/2 4 x 12.2 1 Am/M4 4 0.37 50 on request on request on request
CPVF 5-4 **874074 500/2 4 x 12.2 1 Am/M4 4 1 0.37/0.09 33/17 19 28 33
CPV 5-8 *173766 500/1 5 x 15.1 1 Am/M4 8 0.75 50 26 41 49
CPVF 5-8 *173803 500/1 5 x 15.1 1 Am/M4 8 2 0.75/0.18 33/17 27 42 50
CPVF 5-18 *303729 500/1 7.1 x 20.5 1 Am/M4 18 4.5 1.5/0.37 33/17 59 78 85
CPV 10-4 *174473 1000/2 5 x 15.1 1 Am/M4 4 0.75 50 28 43 51
CPVF 10-4 *174725 1000/2 5 x 15.1 1 Am/M4 4 1 0.75/0.18 33/17 29 44 52
CPV 10-8 *173797 1000/1 7.1 x 20.5 1 Am/M4 8 1.5 50 58 77 84
CPVF 10-8 *173780 1000/1 7.1 x 20.5 1 Am/M4 8 2 1.5/0.37 33/17 59 78 85
CPV 20-4 *174480 2000/2 7.1 x 20.5 1 Am/M4 4 1.5 50 63 82 89
CPVF 20-4 *174459 2000/2 7.1 x 20.5 1 Am/M4 4 1 1.5/0.37 33/17 64 83 90
CPVF 25-8 **979168 2500/1 11 x 31 1 Am/M4 8 2 3.6/0.9 33/17 85 147 161
CPVF 50-4 **979175 5000/2 11 x 31 1 Am/M4 4 1 3.6/0.9 33/17 on request on request on request

1 Weight at standard lift (3 m). Other lifting heights on request.

2 For trolleys type A and B: Additional weight for geared trolley (VTG): 2.5 kg

3 For electric trolley (VTE) with 2 speeds +2.0 kg

Technical Specifications = CPV - 230v, 1-phase, 50Hz

Model EAN-No. 4025092* 4053981** Capacity in kg/ number of falls Chain dimensions d x p (mm)

Classification FEM/ISO

Lifting speed main (m/min) Lifting speed fine (m/min) Hoist Motor (kW) Motor rating (ED %)
CPV 2-4 250/1 4 x 12.2 1 Bm/M3 4 0.37 25
CPV 5-2 500/2 4 x 12.2 1 Bm/M3 2 0.37 25
CPV 5-8 *248792 500/1 5 x 15.1 1 Bm/M3 8 0.75 25
CPV 10-4 *248808 1000/2 5 x 15.1 1 Bm/M3 4 0.75 25
CPV 10-4/1 *248815 1000/1 7.1 x 20.5 1 Bm/M3 4 1.5 25
CPV 20-2 *248822 2000/2 7.1 x 20.5 1 Bm/M3 2 1.5 25

Technical Data - Trolleys

Suitable for model Capacity (kg) Size Beam flange width (b) (mm) Beam flange thickness (t max.) (mm) Curve radius min. (m) Electric trolley travel speed (m/min) at 50Hz Electric trolley motor (kW) at 50 Hz
CPV/CPVF 2-8 up to CPV/CPVF 5-4 500 A 58 - 180 12 0.9 11 or 18 0.09
CPV/CPVF 2-8 up to CPV/CPVF 5-4 500 B 180 - 300 19 0.9 11 or 18 0.09
CPV 5-8 up to CPVF 10-4 1000 A 58 - 180 19 0.9 18 or 18/4.5 0.18 or 0.18/0.06
CPV 5-8 up to CPVF 10-4 1000 B 180 - 300 19 0.9 18 or 18/4.5 0.18 or 0.18/0.06
CPV 10-8 up to CPVF 20-4 2000 A 58 - 180 19 1.15 18 or 18/4.5 0.18 or 0.18/0.06
CPV 10-8 up to CPVF 20-4 2000 B 180 - 300 19 1.15 18 or 18/4.5 0.18 or 0.18/0.06
CPVF 25-8 up to CPVF 50-4 5000 A 98 - 180 27 2 11 or 11/2.8 0.37 or 0.3/0.09
CPVF 25-8 up to CPVF 50-4 5000 B 180 - 300 27 1.8 11 or 11/2.8 0.37 or 0.3/0.09

Yale chain hoists: General Information

Yale chain hoists convince through their compact, elegant design, low tare weight and their robust construction.
A precision machined, case hardened load chain sheave perfectly matched to the load chain, oilbath lubricated gearbox with hardened gears and high quality encapsulated bearings ensure smooth, quiet operation.

The adjustable slip clutch, fitted as an overload safety device, is engineered for low maintenance and also serves as an overrun protection for the highest and lowest load hook positions.

The pendant control is fitted with an emergency-stop switch as standard.

Forged suspension and load hooks, manufactured from non-ageing, high alloy tempering steel, yield under overload instead of breaking.
Apart from the stationary configurations (hook suspension) manual push, geared and electric trolleys are available. The trolleys are suitable for all commercial beam profiles e.g. INP, IPE and IPB.

The electric trolleys are fitted with a self-braking worm gearbox. The surface protected, high tensile load chains are in accordance with national and international standards and regulations (DIN EN 818).

dimensional-specifications.pdf

Full dimensional specifications for the Yale CPV Hoist range

Dimensional information for lug, hook and trolley suspended CPV hoists - All models
(approx. 0.2Mb)

Pricing

Voltage
Safe Working Load / Number of falls
Suspension Type
Hoist Speed
Rain Cover (weather protection jacket)?
No Yes
Chain Collector Bag?
Height of Lift (m)
@ £20.00 (min:3) (3 included in price)
Quantity
Unit Price

£1226.00



Contact Us About This Product
