Riley Superclamps USC Universal Beam Clamp for use Vertical or Horizontal Applications - Range from 3000kg to 10000kg
Model:
Riley Superclamps USC / U-3370
For side load applications where conventional clamps are unsuitable.

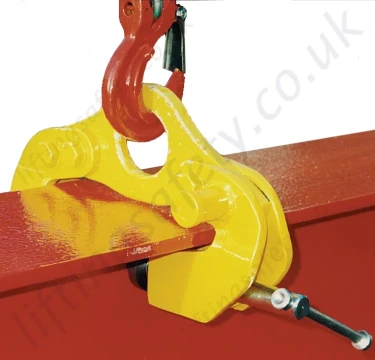

This universal clamp has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable. This clamp is truly versatile in application and can be used for lifting, pulling or as an anchor point.
It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations.
With a low headroom anchor point, it can be used as a single or twin point lifting, giving positive grip and quick application combined with lightweight construction.
Do Not Exceed Working Load Limits or use this equipment for lifting Flat Plate Sections (not to be used as a plate lifting clamp).

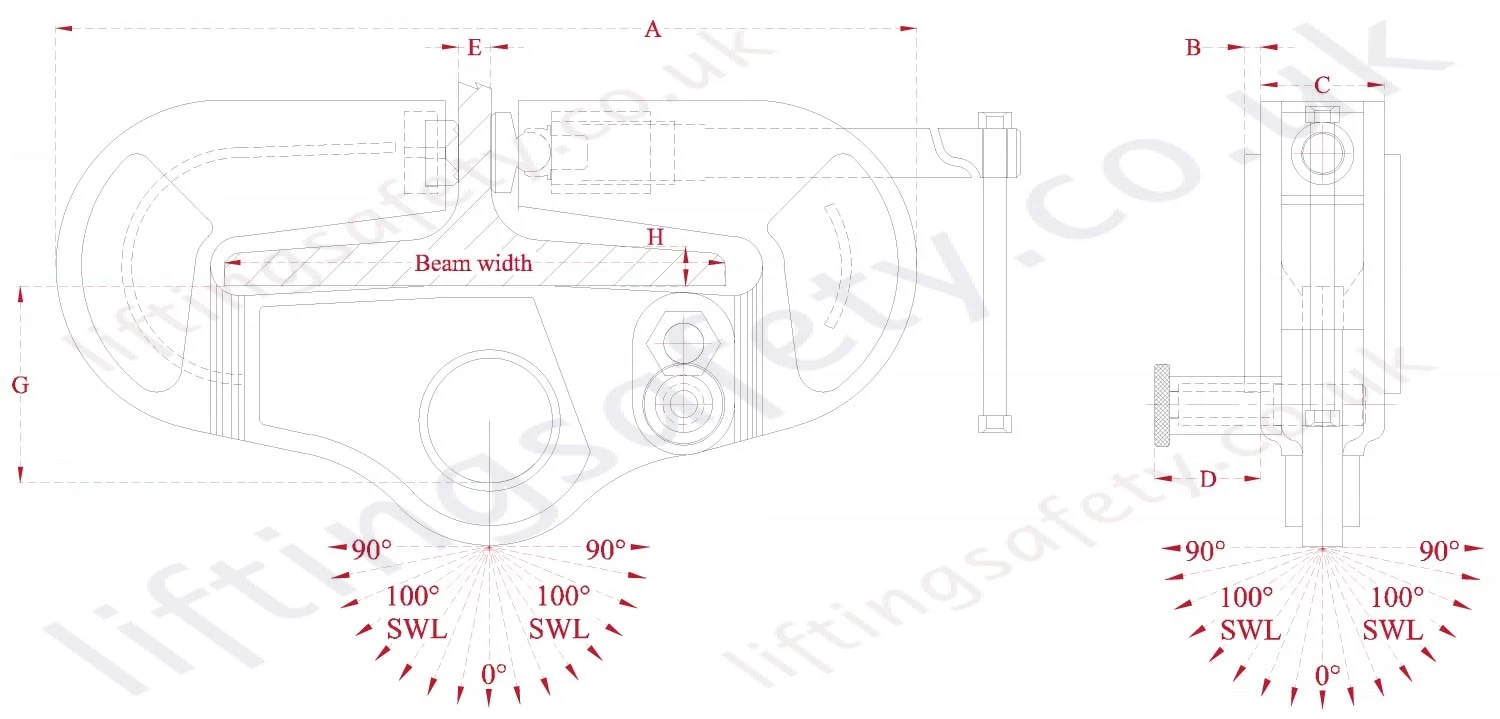

Dimensions
| Part No: | Capacity (kg) | Beam Width (mm) | Dimensions (mm) | Weight (kg) | |||||||||
| A | B | C | D | E | G | H | J | K | L | ||||
| 21014 | 3048 | 125 - 204 | 387 | - | 70 | 48 | 32 | 100 | 25.4 | 28 | 20 | - | 13.5 |
| 21015 | 4064 | 125 - 305 | 518 | 10 | 70 | 48 | 100 | 28 | 10 | 10 | 23.5 | ||
| 21016 | 5080 | 125 - 305 | 524 | 10 | 75 | 48 | 120 | 38 | 25 | 10 | 28.0 | ||
| 21017 | 10160 | 125 - 305 | 524 | 10 | 75 | 102 | 120 | 38 | 25 | 12.5 | 38.5 | ||
| 21018 | 10160 | 225 - 400 | 624 | 10 | 75 | 102 | 120 | 38 | 25 | 12.5 | 45.0 | ||
