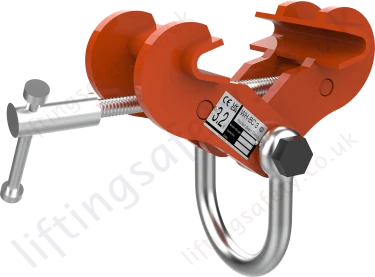

Hackett beam clamp with shackle suspension point. Can be used to an angle of 45 to the vertical (decreased WLL). Range 2000kg to 15,000kg
Model:
WH-BC / WHFJ-4571
More from:
William Hackett BC Series Beam Clamp
Both jaws of the beam clamp are fitted with a 'Gussett', maximising contact between the beam and beam clamp, increasing the grip of the beam clamp.
Fitted with a shackle, which allows an easy connection of a hoist.
Can be used at an angle of 45 degrees to the vertical. When the angle is moved away from the vertical, the working load limit of the beam clamp needs to be reduced. Please refer to "Reduction in Working Load Limits (WLL) when side loads are applied" (below).
Dimension and Specifications: WH-BC Clamps
Model
Part No.
Capacity (tonnes)
Beam Range (mm)
Max. Flange Thickness (mm)
a (mm)
b (mm)
d (mm)
e (mm) Max.
e (mm) Min.
g (mm)
k (mm) Max.
k (mm) Min.
h (mm)
Mass (kg)
WH-BC 2
027.200
2
76-190
20
130
3
90
254
133
275
263
223
20
4
WH-BC 3
027.320
3.2
76-190
28
130
12
102
275
166
275
289
251
20
8
WH-BC 3E
027.320.E
3.2
127-350
28
130
12
102
438
228
560
375
294
20
11.5
WH-BC 4
027.400
4
150-254
24
130
10
112
371
185
410
369
308
25
11
WH-BC 5
027.500
5
76-190
24
130
12
116
306
191
295
338
300
25
10
WH-BC 5E
027.500.E
5
150-305
24
130
12
116
422
264
410
413
360
25
15
WH-BC 6
027.600
6
203-457
36
140
12
116
608
267
560
511
402
25
18.8
WH-BC 10
027/1000
10
203-457
36
140
20
118
608
267
560
530
421
32
28
WH-BC 15
027/1500
15
203-457
66
170
20
116.5
648
400
660
684
608
40
49.5
WH-BC 15E
027/1500.E
15
406-610
66
170
20
116.5
800
600
810
812
706
40
58.5
Reduction in Working Load Limit (WLL) When Side Loads Are Applied
Angle from Vertical
Degrees
>0° to 15°
15° to 30°
30° to 45°
Reduction Factor
Nil
17.00%
34.00%
50.00%
Model
WLL
WLL
WLL
WLL
027.200
2 tonne
**This Model is NOT Suitable For Any Side Loading**
027.320 / 027.320.E
3 tonne
2.5 tonne
2 tonne
1.5 tonne
027.400
4 tonne
3.3 tonne
2.6 tonne
2 tonne
027.500 / 027.500.E
5 tonne
4.1 tonne
3.3 tonne
2.5 tonne
027.600
6 tonne
5 tonne
4 tonne
3 tonne
027/1000
10 tonne
8.3 tonne
6.5 tonne
5 tonne
027/1500 / 027/1500.E
15 tonne
12.4 tonne
10 tonne
7.5 tonne
The above Working Load Limits and derations have been established specifically for most William Hackett clamps and only apply in overhead beam attachment, i.e, DO NOT apply if clamps are to be used for lifting beams.
The tables apply to William Hackett clamps only (selected models), and we strongly advise that stress calculations should be carried out (by the user's engineering department) for all support steelwork.
WARNING: All clamps must be correctly applied to the beam by a competent person and fully hand-tightened. If in doubt, contact the manufacturer for their recommendations.
NOTE: Clamp model 027.200 is not suitable for any side loading as it is of a lightweight design.
