Yale YC Standard Beam Clamps

Yale YC Standard Beam Clamps

Yale adjustable beam clamp with easy and wide adjustment range. Capacity options from 1000kg to 10 tonnes.

Model:

Yale YC / SBC-139

Yale YC Standard Beam Clamps

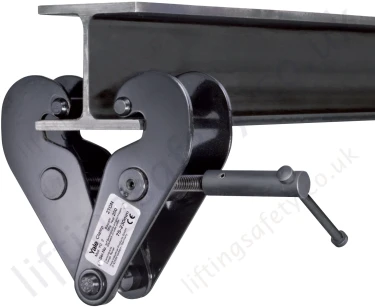

Yale Yc Beam Clamp 2 Tonne
More from:
Yale

Flattened, reinforced versions for use on beams with reduced web height are available on request.

Clamp Features

  • Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads.
  • Flexible application due to wide adjustment range.
  • The central threaded spindle allows easy attachment and a safe and secure grip.
  • The spindle can be secured against loosening.
  • This model must NOT be used for lifting with, only from. It is a suspension point only (not a clamp for the lifting of beams or steel profiles etc.)
  • Optionally, it can be supplied as a beam clamp with a shackle.

Capacity and Range

Model Article Number Capacity (kg) Flange width/range (mm) Weight (kg)
YC 1 N05406181 1000kg 75 - 230 mm 3.8
YC 2 N05406182 2000kg 75 - 230 mm 4.6
YC 3 N05407417 3000kg 80 - 320 mm 9.2
YC 5 N05407418 5000kg 90 - 320 mm 11.0
YC 10 N05407419 10000kg 90 - 320 mm 17.2

Dimensions

Dimensional Drawings for the Yale YC

Part Number Capacity (kg) A min A max A1 A2 B1 B2 b1 b2 C D E F1 F2 G1 G2 H J1 J2 K1 K2 L
YC1 1000 115 150 78 246 186 350 75 230 50 4 215 34 17 82 44 20 14 21 48 31 84
YC2 2000 115 150 78 246 186 350 75 230 50 6 215 35 18 82 44 20 14 21 50 32 94
YC3 3000 180 225 80 320 232 455 80 320 70 8 255 35 21 120 75 22 30 34 60 40 122
YC5 5000 180 225 90 310 242 445 90 310 70 10 255 35 21 116 75 28 30 34 60 42 129
YC10 10000 175 220 90 320 268 480 90 320 70 14 275 35 20 110 66 38 34 35 60 40 146





Part N° Capacity (tonnes) Flange width/range (mm) Weight (kg) Sale Price (Ex. VAT) Quantity
139-T20541
YC1 		1 tonne 75 - 230 mm 3.8
( £87.41 )
£75.18
139-T20542
YC2 		2 tonne 75 - 230 mm 4.6
( £95.61 )
£82.22
139-T20543
YC3 		3 tonne 80 - 320 mm 9.2
( £125.65 )
£108.06
139-T20544
YC5 		5 tonne 90 - 320 mm 11.0
( £162.53 )
£139.77
139-T20545
YC10 		10 tonne 90 - 320 mm 17.2
( £234.91 )
£202.03
Availability Usually 1-2 Working Days - 1pm cut-off
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

Flattened, reinforced versions for use on beams with reduced web height are available on request.

Clamp Features

  • Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads.
  • Flexible application due to wide adjustment range.
  • The central threaded spindle allows easy attachment and a safe and secure grip.
  • The spindle can be secured against loosening.
  • This model must NOT be used for lifting with, only from. It is a suspension point only (not a clamp for the lifting of beams or steel profiles etc.)
  • Optionally, it can be supplied as a beam clamp with a shackle.

Capacity and Range

Model Article Number Capacity (kg) Flange width/range (mm) Weight (kg)
YC 1 N05406181 1000kg 75 - 230 mm 3.8
YC 2 N05406182 2000kg 75 - 230 mm 4.6
YC 3 N05407417 3000kg 80 - 320 mm 9.2
YC 5 N05407418 5000kg 90 - 320 mm 11.0
YC 10 N05407419 10000kg 90 - 320 mm 17.2

Dimensions

Dimensional Drawings for the Yale YC

Part Number Capacity (kg) A min A max A1 A2 B1 B2 b1 b2 C D E F1 F2 G1 G2 H J1 J2 K1 K2 L
YC1 1000 115 150 78 246 186 350 75 230 50 4 215 34 17 82 44 20 14 21 48 31 84
YC2 2000 115 150 78 246 186 350 75 230 50 6 215 35 18 82 44 20 14 21 50 32 94
YC3 3000 180 225 80 320 232 455 80 320 70 8 255 35 21 120 75 22 30 34 60 40 122
YC5 5000 180 225 90 310 242 445 90 310 70 10 255 35 21 116 75 28 30 34 60 42 129
YC10 10000 175 220 90 320 268 480 90 320 70 14 275 35 20 110 66 38 34 35 60 40 146
