William Hackett HA Eye and Eye Contact Angular Swivel

William Hackett HA Eye and Eye Contact Angular Swivel

Eye + eye angular contact swivel specially designed for lifting applications with high rotational speed involved. Capacity options from 750kg up to 25 tonnes.

Model:

8-H32

Quick Ref:

WHHE-5611

Manufacturing Standard: ASME B30.26

8-H32 Contact Angular Swivel In Use with Chain Sling Egg Links

Eye and Eye Angular Swivel for Hi-Speed Rotation

The William Hackett HA eye-and-eye angular contact swivel is engineered for lifting applications that demand high rotational speeds. Its eye-to-eye design allows for straightforward integration with other lifting components, including shackles and forked clevis connections.

Key Features

Standards: designed and manufactured in accordance with ASME B30.26.
Product sizes: available with working load limits (WLL) from 0.75 tonnes up to 25 tonnes.
Material: manufactured from alloy steel.
Maintenance: built-in grease nozzle for easy maintenance and enhanced operational performance.
Temperature: operational temperature range of - 40°C to + 200°C without reduction in working load limit.
Testing: 100% magnaflux crack detected, and 20,000 cycle fatigue rated to 1.5 times working load limit.
Safety factor: 4:1.

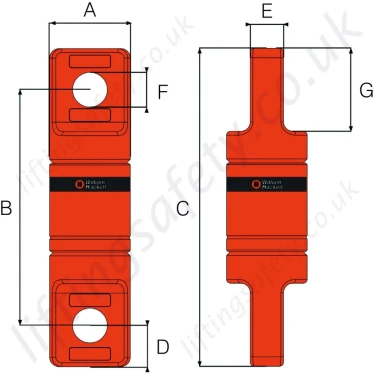

Metric Specifications

Part Code	Wire Rope Dia. (mm)	WLL	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Mass (kg)
8-H32-0075	6	750kg	34.0	107.0	133.0	13.0	12.0	10.5	35.0	0.8
8-H32-015	10	1.5 tonnes	40.0	119.0	159.0	20.0	15.0	13.5	46.0	1.2
8-H32-03	13	3 tonne	53.0	160.0	210.0	25.0	20.0	20.0	57.0	2.2
8-H32-05	16	5 tonne	67.0	203.0	267.0	32.0	26.0	33.0	69.0	5.1
8-H32-085	19	8.5 tonnes	78.0	250.0	326.0	38.0	32.0	37.0	92.0	8.5
8-H32-10	22	10 tonne	106.0	310.0	410.0	50.0	42.0	44.0	104.0	23.0
8-H32-15	25	15 tonne	119.0	320.0	440.0	60.0	49.0	54.0	117.0	29.0
8-H32-25	32	25 tonne	137.0	405.0	545.0	70.0	60.0	66.0	140.0	46.0

Imperial Specifications

Part Code	Wire Rope Dia. (inch)	WLL tonnes	A (inch)	B (inch)	C (inch)	D (inch)	E (inch)	F (inch)	G (inch)	Mass (lbs)
8-H32-0075	7/32	0.75 Ton	1.34	4.21	5.24	0.51	0.47	0.41	1.38	1.76
8-H32-015	3/8	1.5 Tons	1.57	4.69	6.26	0.79	0.59	0.53	1.81	2.65
8-H32-03	1/2	3 Ton	2.09	6.30	8.27	0.98	0.79	0.79	2.24	4.85
8-H32-05	5/8	5 Ton	2.64	8.00	10.51	1.26	1.02	1.30	2.72	11.24
8-H32-085	3/4	8.5 Tons	3.07	9.84	12.83	1.50	1.26	1.46	3.62	18.74
8-H32-10	7/8	10 Ton	4.17	12.20	16.14	1.97	1.65	1.73	4.09	50.71
8-H32-15	1	15 Ton	4.69	12.60	17.32	2.36	1.93	2.13	4.61	63.93
8-H32-25	1-1/4	25 Ton	5.39	15.94	21.46	2.76	2.36	2.60	5.51	101.41

Contact Us About This Product

If you wish to receive a quote for this product, please use the tab, this form is for general enquiries regarding this product only.

Regarding: William Hackett HA Eye and Eye Contact Angular Swivel

Full Name: *

Email Address: *

Telephone:

Country:

Subject: *

Message: *

Attachment: - Optional
(jpg,gif,png,webp,pdf,doc,xls)

I agree to the Terms & Conditions and the Terms & Conditions of Export (if applicable). I agree to having my data stored in accordance with the Privacy Policy. I want to get exclusive email offers.

Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

Part N°	Wire Rope Dia. (mm)	Wire Rope Dia. (inch)	WLL	Mass (kg)	Sale Price
5611-T29290 8-H32-0075	6	7/32	750kg	0.8	£199.68 £174.72 Inc. VAT £166.40 £145.60 Ex. VAT
5611-T29291 8-H32-015	10	3/8	1.5t	1.2	£262.08 £229.32 Inc. VAT £218.40 £191.10 Ex. VAT
5611-T29292 8-H32-03	13	1/2	3t	2.2	£399.36 £349.44 Inc. VAT £332.80 £291.20 Ex. VAT
5611-T29293 8-H32-05	16	5/8	5t	5.1	£599.04 £524.16 Inc. VAT £499.20 £436.80 Ex. VAT
5611-T29294 8-H32-085	19	3/4	8.5t	8.5	£526.08 £460.32 Inc. VAT £438.40 £383.60 Ex. VAT
5611-T29295 8-H32-10	22	7/8	10t	23.0	£1,385.28 £1,212.12 Inc. VAT £1,154.40 £1,010.10 Ex. VAT
5611-T29296 8-H32-15	25	1	15t	29.0	£1,934.40 £1,692.60 Inc. VAT £1,612.00 £1,410.50 Ex. VAT
5611-T29297 8-H32-25	32	1-1/4	25t	46.0	£2,527.20 £2,211.30 Inc. VAT £2,106.00 £1,842.75 Ex. VAT
