William Hackett HA Jaw and Jaw Contact Angular Swivel

William Hackett HA Jaw and Jaw Contact Angular Swivel

Jaw + jaw angular contact swivel specially designed for lifting applications with high rotational speed involved. Capacity options from 750kg up to 25 tonnes.

Model:

8-H31

Quick Ref:

HJAJ-5610

Manufacturing Standard: ASME B30.26

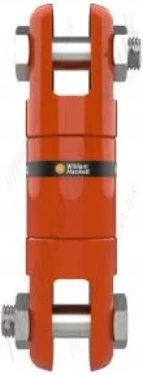

William Hackett HA Jaw and Jaw Contact Angular Swivel

8-H31 Angular Contact Swivel 8-H31 Contact Angular Swivel In Use Example with Egg Link 8-H31 Angular Contact Swivel In Use with Master Links

Jaw and Jaw Angular Swivel for Hi-Speed Rotation

The HA jaw + jaw contact angular swivel is specially designed for lifting applications that involve high rotational speed. The jaw and jaw configuration enable easy connection between other lifting components, such as master links, wire rope thimbles or clevis connections.

Key Features

  • Standards: designed and manufactured in accordance with ASME B30.26.
  • Product sizes: available with working load limits from 0.75 tonnes up to 25 tonnes.
  • Material: manufactured from alloy steel.
  • Maintenance: built-in grease nozzle for easy maintenance and enhanced operational performance.
  • Temperature: operational temperature range of -40°C to +200°C without reduction in working load limit (WLL).
  • Testing: 100% magnaflux crack detected, and 20,000 cycle fatigue rated to 1.5 times working load limit.
  • Safety factor: 4 : 1.

Metric Specifications

Part Code Wire Rope Dia. (mm) WLL A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Weight (kg)
8-H31-0075 6 750kg 34.0 107.0 133.0 13.0 15.0 10.0 6.0 22.0 0.8
8-H31-015 10 1.5 tonnes 40.0 119.0 159.0 20.0 18.0 13.0 8.0 26.0 1.5
8-H31-03 13 3 tonne 53.0 160.0 210.0 25.0 23.0 19.0 10.0 32.0 2.9
8-H31-05 16 5 tonne 67.0 203.0 267.0 32.0 32.0 22.0 14.0 37.0 5.7
8-H31-085 19 8.5 tonnes 78.0 250.0 326.0 38.0 40.0 30.0 14.0 54.0 8.9
8-H31-10 22 10 tonne 106.0 310.0 410.0 50.0 42.0 38.0 25.0 54.0 26.2
8-H31-15 25 15 tonnes 119.0 320.0 440.0 60.0 48.0 38.0 25.0 57.0 31.6
8-H31-25 32 25 tonnes 137.0 405.0 535.0 65.0 62.0 50.0 30.0 70.0 50.5

Imperial Specifications

Part Code Wire Rope Dia. (inch) WLL A (inch) B (inch) C (inch) D (inch) E (inch) F (inch) G (inch) H (inch) Weight (lbs)
8-H31-0075 7/32 0.75 Tons 1.34 4.21 5.24 0.51 0.59 0.39 0.24 0.87 1.76
8-H31-015 3/8 1.5 Ton 1.57 4.69 6.26 0.79 0.71 0.51 0.31 1.02 3.31
8-H31-03 1/2 3 Ton 2.09 6.30 8.27 0.98 0.91 0.75 0.39 1.26 6.39
8-H31-05 5/8 5 Ton 2.64 8.00 10.51 1.26 1.26 0.87 0.55 1.46 12.57
8-H31-085 3/4 8.5 Tons 3.07 9.84 12.83 1.50 1.57 1.18 0.55 2.13 19.62
8-H31-10 7/8 10 Ton 4.17 12.20 16.14 1.97 1.65 1.50 0.98 2.13 57.76
8-H31-15 1 15 Tons 4.69 12.60 17.32 2.36 1.89 1.50 0.98 2.24 69.67
8-H31-25 1-1/4 25 Ton 5.39 15.94 21.06 2.56 2.44 1.97 1.18 2.76 111.33

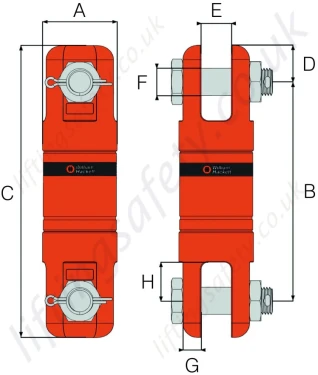

Dimensional Drawing

Contact Us About This Product

If you wish to receive a quote for this product, please use the tab, this form is for general enquiries regarding this product only.

Regarding: William Hackett HA Jaw and Jaw Contact Angular Swivel
Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

qrcode
Part N° Wire Rope Dia. (mm) Wire Rope Dia. (inch) WLL Weight (kg) Sale Price Quantity
5610-T29282
8-H31-0075 		6 7/32 750kg 0.8
£199.68 £174.72 Inc. VAT
£166.40 £145.60 Ex. VAT
5610-T29283
8-H31-015 		10 3/8 1500kg 1.5
£262.08 £229.32 Inc. VAT
£218.40 £191.10 Ex. VAT
5610-T29284
8-H31-03 		13 1/2 3000kg 2.9
£399.36 £349.44 Inc. VAT
£332.80 £291.20 Ex. VAT
5610-T29285
8-H31-05 		16 5/8 5000kg 5.7
£599.04 £524.16 Inc. VAT
£499.20 £436.80 Ex. VAT
5610-T29286
8-H31-085 		19 3/4 8500kg 8.9
£886.08 £775.32 Inc. VAT
£738.40 £646.10 Ex. VAT
5610-T29287
8-H31-10 		22 7/8 10000kg 26.2
£1,384.80 £1,211.70 Inc. VAT
£1,154.00 £1,009.75 Ex. VAT
5610-T29288
8-H31-15 		25 1 15000kg 31.6
£1,934.40 £1,692.60 Inc. VAT
£1,612.00 £1,410.50 Ex. VAT
5610-T29289
8-H31-25 		32 1-1/4 25000kg 50.5
£2,527.20 £2,211.30 Inc. VAT
£2,106.00 £1,842.75 Ex. VAT
Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.
