Yoke Bullet Style Swivel - Range from 750kg to 25,000kg
Yoke Bullet Style Swivel - Range from 750kg to 25,000kg
Bullet Style Contact Angular Swivel.
Quick Ref:
BSS-2829
More from:
Yoke 8-301 Lifting Swivels
The Bullet style contact angular swivels by Yoke are made using top quality materials, they are designed with an excellent lifting factor of safety (FOS)of 5:1.
Yoke 8-301 swivels are available in 8 different sizes from 3/4 tons to 25 tons (0.68 tonnes to 22.5 tonnes).
Swivel Features
All of the options available are to suit different wire lines, diameters from 1/4" to 2" (6mm to 32mm).
Supplied tested to two times the safe working load (SWL) and fully certified.
Supplied corrosion-resistant as standard (Zinc plated) for quality and longer life.
Made with grease fittings for long life and performance.
Designed for low starting torque and high rotation speed.
All Bullet style swivel components are total (100%) Magnaflux Crack Detection
All swivels are supplied with a 20,000-cycle fatigue rate to 1.5 times the working load limit, and all the parts on the swivels are supplied with a batch number for quality certification and for traceability.

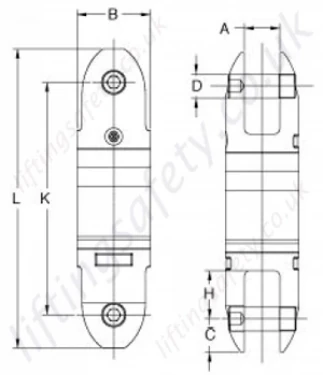

Dimensions and Specifications
Part N°
Wire Line Size (mm)
Working Load Limit (tonnes)
B (mm)
K (mm)
L (mm)
C (mm)
A (mm)
D (mm)
H (mm)
Net Weight (Kg)
2829-T18989 8-301-0075
6
0.75
32
103
126
12
15
10
22
0.2
2829-T18990 8-301-015
10
1.5
40
112
144
16
18
11
26
0.7
2829-T18991 8-301-03
13
3.0
51
19
203
23
32
16
31
1.7
2829-T18992 8-301-05
16
5.0
64
200
262
31
32
22
37
3.6
2829-T18993 8-301-085
19
8.5
76
242
312
35
37
25
50
6.8
2829-T18994 8-301-10
22
10.0
102
317
408
46
42
38
53
18.8
2829-T18995 8-301-15
25
15.0
108
317
408
46
48
38
56
20.7
2829-T18996 8-301-25
32
25.0
132
374
495
61
62
51
69
33.8
