Donati GBP C OB C Profile Wall Fixed Overbraced jib Crane - Range from 63kg to 1000kg

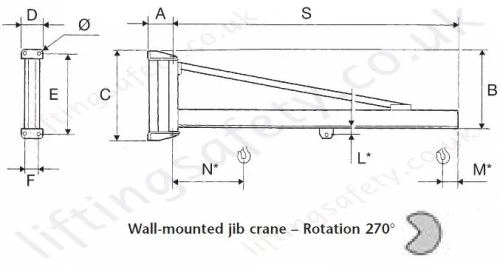

These manually rotated jib cranes are available for lifting capacities from 63kg to 1000kg and jibs from 2m to 7m. The Donati jib cranes are designed and manufactured according to the ISO A5 classification.

The possible configurations are:

• GBP, wall mounted jib crane characterized by a jib rotating angle of 250 degrees.

The crane jib can be supplied in three different solution:

• "C" channel version for lifting capacities from 63kg to 1000kg and outreach from 2m to 7m.

The arm is made using a special section bar made of pre-folded sheet metal, inside which the hoist-carrying trolley runs. The arm is fitted with one or two tie rods which support the profile and connect it to the rotation tube. This version is characterised by the extreme ease of handling due to the low inertia derived from its own reduced weight. The arm is normally fitted with a special "channel" profile trolley, which allows it to be pushed with maximum fluidity.

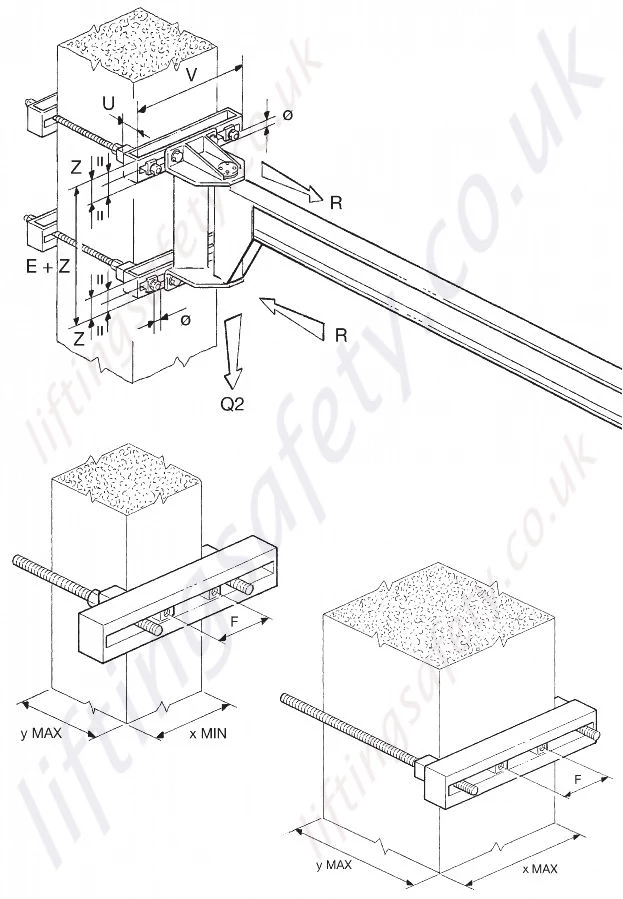

Mounting Brackets

Size of Crane		A	B	C	D	E	F
Reactions (kN)	Q2	2.95	5	9.2	16.85	26.10	25.6
	R	11.9	21.75	27.05	49	66.8	120
Type of Bracket		01		02		03
Staybolts	ø	M14		M20		M30
Clamping couples	(Nm)	67		200		685
Bracket Type: Short (mm)	Code	GBP010110		GBP020110		GBP030110
	U	50		60		80
	V	400		490		532
	Z	75		90		135
	Weight (kg)	21		36		75
Pillar dimensions (mm)	x min	200		250		300
	x max	330		400		400
	y max	850		810		750
Bracket Type: Medium (mm)	Code	GBP010120		GBP020120		GBP030120
	U	50		80		100
	V	530		640		682
	Z	75		120		145
	Weight (kg)	26		60		96
Pillar dimensions (mm)	x min	200		250		400
	x max	460		550		550
	y max	850		770		710
Bracket Type: Long (mm)	Code	GBP010130		GBP020120		GBP030130
	U	60		80		120
	V	720		840		882
	Z	85		120		155
	Weight (kg)	40		74		132
Pillar dimensions (mm)	x min	460		550		550
	x max	650		750		750
	y max	830		770		670
