LiftingSafety 1 or 2 Stage Hydraulic Hand Pump

LiftingSafety 1 or 2 Stage Hydraulic Hand Pump

Single speed or dual speed hydraulic manual hand pumps with reservoir options from 350 to 2500cc.

Model:

HP-1250

LiftingSafety 1 or 2 Stage Hydraulic Hand Pump

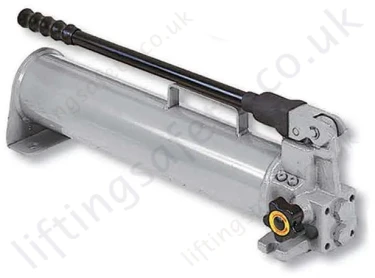

700cc Hydraulic Pump 2000cc Two Stage Hydraulic Pump

Hand Pump Features

  • Single-speed (single-stage) and two-speed (two-stage) models available
  • Oil capacity options: 350cc - 2500cc
  • Die Cast Body
  • Screwed ends and fixings. Heavy-duty (*) models have forged and welded end caps.
  • Max. Working Pressure: 10000 PSI / 700 BAR.

Important: Hoses and couplings not included.

Specifications

Part Number Oil Capacity
(cm³)		 Pump Type Pressure Rating (Bar) Volume Per Stroke (cm³) A
(mm)		 B
(mm)		 C
(mm)		 E
(mm)		 F
(mm)		 Port
Ø (npt)		 Weight
(kgs)
1st STAGE 2nd STAGE 1st STAGE 2nd STAGE
HP-1250-A350 350 Single Stage Hand Pump 200 - 3.2 - 343 292 146 142 90 3/8” 5.7
HP-1250-A600 600 700 - 3.2 - 543 478 146 142 90 3/8” 7.1
HP-1250-A700 700 700 - 3.2 - 633 526 146 142 90 3/8” 7.6
HP-1250-D300 300 200 - 2.8 - 330 283 127 130 90 1/4” 4.4
HP-1250-D500 500 700 - 2.8 - 530 469 127 130 90 1/4” 5.4
HP-1250-B350 350 Twin Stage Hand Pump 13.8 200 13 2.8 343 310 146 142 66 3/8” 5.9
HP-1250-B600 600 13.8 700 13 2.8 543 480 146 142 90 3/8” 7.6
HP-1250-B700 700 13.8 700 13 2.8 633 528 146 142 90 3/8” 8
HP-1250-C1500 1500 13.8 700 13 28 633 551 200 142 106 3/8” 11.2
HP-1250-C2500 2500 13.8 700 13 2.8 713 632 200 142 106 3/8” 12
HP-1250-E2000 2000 13.8 700 13 2.8 580 523 189 148 140 3/8” 11.5
HP-1250-E2421 2000 13.8 700 13 2.8 580 523 189 148 140 - 12
HP-1250-F350 350 13.8 200 7 1 343 310 127 142 66 3/8” 5.5
HP-1250-HDA350* 350 Heavy-Duty Single-Stage Hand Pump 200 - 3.1 - 335 295 90 146 128 3/8” 5
HP-1250-HDA600* 600 700 - 3.1 - 545 485 90 146 128 3/8” 6.1
HP-1250-HDA700* 700 700 - 3.1 - 632 533 90 146 128 3/8” 6.5
HP-1250-HDB350* 350 Heavy-Duty Two-Stage Hand Pump 13.8 200 13 2.8 335 303 90 146 128 3/8” 5.5
HP-1250-HDB600* 600 13.8 700 13 2.8 545 493 90 146 128 3/8” 7
HP-1250-HDB700* 700 13.8 700 13 2.8 632 541 90 146 128 3/8” 7.3

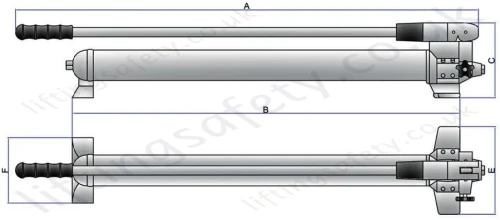

Screwed End Dimensional Drawing
Standard Version with Screwed End Cap

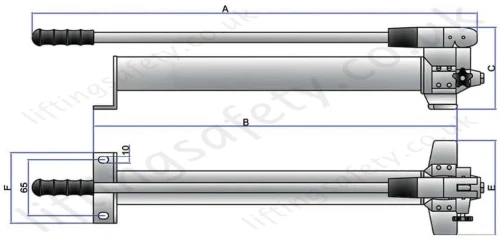

Heavy Duty Welded End Dimensional Drawing
Heavy-Duty Version with Forged and Welded End Cap



Pricing

Unit Price

£164.99

Ex. VAT

Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.

Availability

Usually 2-3 Days - 1pm cut-off

Description

Hand Pump Features

  • Single-speed (single-stage) and two-speed (two-stage) models available
  • Oil capacity options: 350cc - 2500cc
  • Die Cast Body
  • Screwed ends and fixings. Heavy-duty (*) models have forged and welded end caps.
  • Max. Working Pressure: 10000 PSI / 700 BAR.

Important: Hoses and couplings not included.

Specifications

Part Number Oil Capacity
(cm³)		 Pump Type Pressure Rating (Bar) Volume Per Stroke (cm³) A
(mm)		 B
(mm)		 C
(mm)		 E
(mm)		 F
(mm)		 Port
Ø (npt)		 Weight
(kgs)
1st STAGE 2nd STAGE 1st STAGE 2nd STAGE
HP-1250-A350 350 Single Stage Hand Pump 200 - 3.2 - 343 292 146 142 90 3/8” 5.7
HP-1250-A600 600 700 - 3.2 - 543 478 146 142 90 3/8” 7.1
HP-1250-A700 700 700 - 3.2 - 633 526 146 142 90 3/8” 7.6
HP-1250-D300 300 200 - 2.8 - 330 283 127 130 90 1/4” 4.4
HP-1250-D500 500 700 - 2.8 - 530 469 127 130 90 1/4” 5.4
HP-1250-B350 350 Twin Stage Hand Pump 13.8 200 13 2.8 343 310 146 142 66 3/8” 5.9
HP-1250-B600 600 13.8 700 13 2.8 543 480 146 142 90 3/8” 7.6
HP-1250-B700 700 13.8 700 13 2.8 633 528 146 142 90 3/8” 8
HP-1250-C1500 1500 13.8 700 13 28 633 551 200 142 106 3/8” 11.2
HP-1250-C2500 2500 13.8 700 13 2.8 713 632 200 142 106 3/8” 12
HP-1250-E2000 2000 13.8 700 13 2.8 580 523 189 148 140 3/8” 11.5
HP-1250-E2421 2000 13.8 700 13 2.8 580 523 189 148 140 - 12
HP-1250-F350 350 13.8 200 7 1 343 310 127 142 66 3/8” 5.5
HP-1250-HDA350* 350 Heavy-Duty Single-Stage Hand Pump 200 - 3.1 - 335 295 90 146 128 3/8” 5
HP-1250-HDA600* 600 700 - 3.1 - 545 485 90 146 128 3/8” 6.1
HP-1250-HDA700* 700 700 - 3.1 - 632 533 90 146 128 3/8” 6.5
HP-1250-HDB350* 350 Heavy-Duty Two-Stage Hand Pump 13.8 200 13 2.8 335 303 90 146 128 3/8” 5.5
HP-1250-HDB600* 600 13.8 700 13 2.8 545 493 90 146 128 3/8” 7
HP-1250-HDB700* 700 13.8 700 13 2.8 632 541 90 146 128 3/8” 7.3
Screwed End Dimensional Drawing
Standard Version with Screwed End Cap
Heavy Duty Welded End Dimensional Drawing
Heavy-Duty Version with Forged and Welded End Cap
