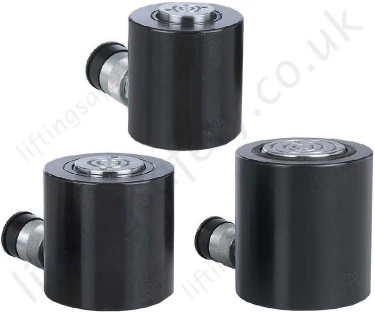

LiftingSafety Medium Height Hydraulic Lifting Cylinder

LiftingSafety Medium Height Hydraulic Lifting Cylinder

Single acting short stroke high pressure hydraulic cylinders with spring assisted return. Lifting capacity options from 10 to 90 tonne.

Model:

LPJ-1246

LiftingSafety Medium Height Hydraulic Lifting Cylinder

Medium Height Short Stroke Hydraulic Cylinders

Cylinder Features

  • All cylinders are single-acting with an assisted spring return
  • Pistons are all hard chromed
  • Rams inside: Repolished
  • Rams outside: Blasted with a black nitride finish
  • Lifting capacity options: 10 to 100 ton
  • Stroke: Between 38 and 62mm, model-dependent.
  • Maximum Pressure: 10000 PSI / 700 Bar
  • All cylinders have two drilled and tapped holes on the piston rod head.
  • Supplied as standard with a quick-release female half coupling.

Specifications

Capacity Stroke Oil capacity Height (mm) C Ø D Ø E Ø H Ø O Ø K P H1 Weight
(mm) (cc) (A) Closed (B) Open (mm) (kg)
10 tonne 38 55 88 126 26 78 42.8 38 M4 17.5 8 5 4.1
20 tonne 45 127 98 143 39 97 60 50.8 M5 17.5 8 3 5.0
30 tonne 62 274 117 179 39 107 75 63.5 M5 19 8 3 6.8
50 tonne 60 429 122 182 39 127 95 70 M5 19 8 2 10.9
100 tonne 58 830 141.5 199.5 55 165 135 92 M8 19 10 1.5 22.7

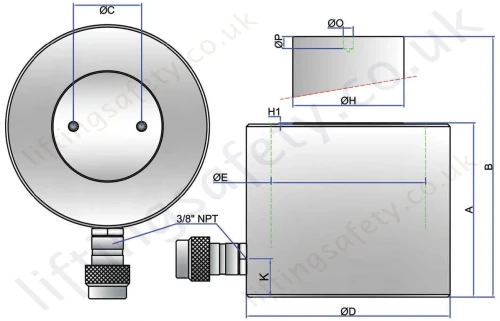

Dimensional Drawing

Pricing

Unit Price

£301.50

Ex. VAT

Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.

Availability

Usually 2-3 Days - 1pm cut-off

Description

Cylinder Features

  • All cylinders are single-acting with an assisted spring return
  • Pistons are all hard chromed
  • Rams inside: Repolished
  • Rams outside: Blasted with a black nitride finish
  • Lifting capacity options: 10 to 100 ton
  • Stroke: Between 38 and 62mm, model-dependent.
  • Maximum Pressure: 10000 PSI / 700 Bar
  • All cylinders have two drilled and tapped holes on the piston rod head.
  • Supplied as standard with a quick-release female half coupling.

Specifications

Capacity Stroke Oil capacity Height (mm) C Ø D Ø E Ø H Ø O Ø K P H1 Weight
(mm) (cc) (A) Closed (B) Open (mm) (kg)
10 tonne 38 55 88 126 26 78 42.8 38 M4 17.5 8 5 4.1
20 tonne 45 127 98 143 39 97 60 50.8 M5 17.5 8 3 5.0
30 tonne 62 274 117 179 39 107 75 63.5 M5 19 8 3 6.8
50 tonne 60 429 122 182 39 127 95 70 M5 19 8 2 10.9
100 tonne 58 830 141.5 199.5 55 165 135 92 M8 19 10 1.5 22.7

Dimensional Drawing
