Tractel TRALIFT TE Electric Chain Hoist, 3 phase 400v 3Ph - Range 125kg to 2000kg

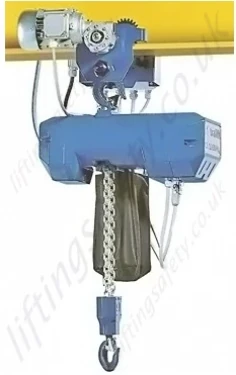

Available in 2 options of suspension, by hook or with a CORSO trolley (3 options available).

Model:

Tractel TRALIFT TE / TT-3292


Description

+

Unfortunately the Tralift TE has been discontinued. Please see the Tractel VoltTrac Electric Hoist as the current alternative.

Tractel Tralift TE Hoists are motorized chain hoists that are used to lift and transfer loads. The hoist is designed for permanent installation on a jib crane, or on motorized or non motorized trolley. They are suitable for handling relatively heavy objects while simultaneously reducing the physical effort of the user. The hoist is operated using a push button pendant control.

  • Robust.
  • WLL 125kg to 20000 kg.
  • Compact.
  • Reliable.
  • Minimum headroom.
  • Complete fitting.
  • Reduced maintenance.
  • Adjustable upper and lower operational electrical limit switches.
  • Low voltage controls using Schneider components.
  • Emergency stop on pendant control box.
  • Plug in system on control cable.
  • Friction clutch load limiter operating as a safety limit switch.
  • Load chain to DIN 5684, class 80 galvanized.
  • Multi sized chain bags.
  • IP 54 protection - Insulation class F.
  • Power supply 230 or 400 V – 3 phase – 50 or 60 Hz..
  • FEM group 1Am – ISO M4.
Hoist Components

+

Hoist Components

  1. Hoisting motor.
  2. Electrical panel.
  3. Suspension hook.
  4. Load wheel with chain guide.
  5. Gearbox.
  6. Load hook.
  7. Chain bag.
  8. Pendant control.
  9. Overload friction clutch.
  10. Lifting brake.
  11. Upper and lower adjustable electrical limit switches.
  12. Terminal box.

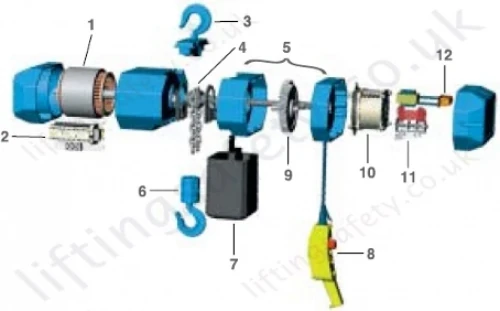

 Tractel TRALIFT TE Main components

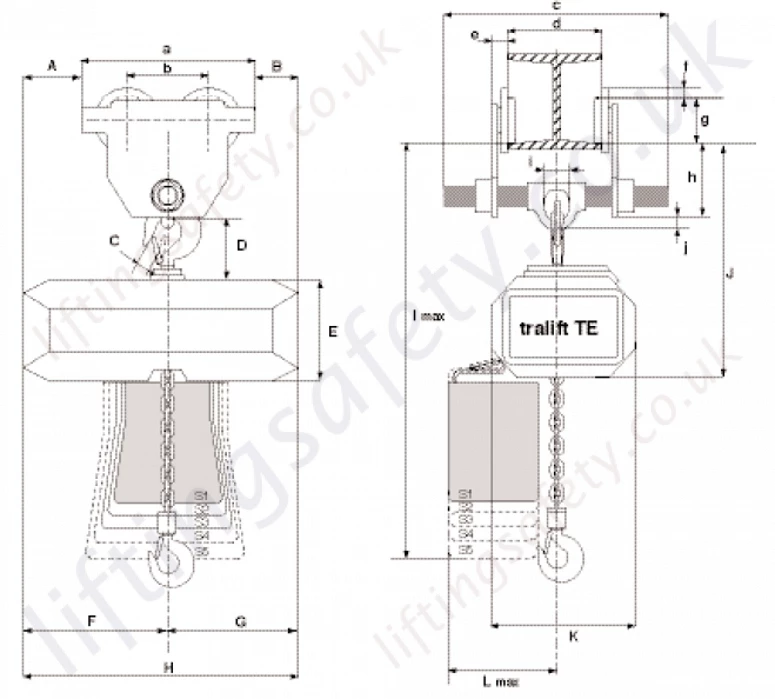

Dimensions

+

Dimensions

Dimensions

Model Number of falls Dimensions (mm)
Trolley + hoist Trolley
A B C D E F G H I J K L a b c d e f g h i j
min max min max
TE 150 1 187 78 22 75 175 300 190 490 610 330 200 190 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 250 1 197 88 22 75 190 310 200 510 698 345 215 205 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 500 2 207 78 22 85 190 310 200 510 708 355 215 205 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 500 1 217 88 23 92 200 330 200 530 867 372 220 210 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 1000 2 211 67 30 94 200 330 200 530 756 401 220 210 252 122 334 434 59 232 161 332 23 15 62 110 30 14
TE 1000 1 239 94 30 102 185 350 235 585 924 394 285 190 252 122 334 434 59 232 161 332 23 15 62 110 30 14
TE 2000 2 187 98 37 133 185 350 235 585 953 423 285 190 300 140 338 438 67 232 161 332 25 18 82 127 40 17

Other Dimensional Information

Model WLL (kg) Number of falls Load chain Dia. x pitch (mm) Lifting speed (m/min) Hoisting motor power (kW) Hoist weight lift 3 m (kg) Hoist headroom (mm) Trolley motor power (kW) Hoist/trolley weight Beam
adjustment
mini/maxi
(mm)		 Mini
curve
radius
(mm)
Push type
(kg)		 Chain
type(1)
(kg)		 Electric
type
(kg)
TE125 125 1 4 x 12 10
10/3.3		 0.3
0.3/0.13		 24 330 - 3.5 - - 50 to 220
or
221 to
300(2)		 900
TE250 250 1 5 x 15 8
8/2.7		 0.4
0.4/0.13		 30 340 - 3.5 - - 900
TE500 500 2 5 x 15 4
4/1.3		 0.4
0.4/0.13		 33 430 0.18 8.5 - 50 900
TE500 500 1 6.3 x 19 8
8/2.7		 0.9
0.9/0.13		 38 400 0.25 8.5 - 55 900
TE1000 1000 2 6.3 x 19 4
4/1.3		 0.9
0.9/0.13		 41 480 0.18/0.6 10.5 19 60 58 to 220
or 221 to
300(2)		 1000
TE1000 1000 1 8 x 24 6.3
6.3/1.9		 1.6
1.6/0.55		 58 490 10.5 19 73 1000
TE2000 2000 3 8 x 24 3.15
3.15/0.8		 1.6
1.6/0.55		 62 580 18 22.5 89 66 to 220
or 220 to
300(2)		 1500

Specifications

+

Specifications

  • Classified as H4 ASME Hoist Duty Class
  • Powered by 3phase 230v or 460v (fully convertable) w/ phase protector
  • Enclosure rating - hoist IP54 pendant IP65 (NEMA3)
  • Fully Adjustable cam style upper and lower electrical limit switches
  • Available in one or two fall versions
  • A rigid suspension hook or lug
  • Cast aluminium frame made of bolted modular parts
  • Motor mounted in the hoist frame and fitted with thermal protection
  • Grade 80 case hardened load chain
  • Swivelling load hook mounted on ball bearings
  • Double gear train gearbox sub-assembly with a friction clutch load limiting device
  • Separate asbestos free electromagnetic brake
  • Low voltage electrical (48v) pendant control with emergency stop button.
  • Stitched nylon chain bag
  • Temperature range -10C to +40C
    Table - Tralift® TE with 10 ft. lift 1 speed / 2speed
Downloads

+
tralift-tech-specs.pdf

Technical Datasheet

(approx. 1.2Mb)
Tralift te technical sheet 125kg to 2 tonne.pdf

Technical Specifitcations 125kg to 2 tonne

(approx. 2.6Mb)
te technical sheet dimensions hoist with electric trolley.pdf

Tralift TE Dimensions

(approx. 0.3Mb)
tralift te operation and user guide.pdf

Operational and User Guide

(approx. 4.4Mb)

Unfortunately the Tralift TE has been discontinued. Please see the Tractel VoltTrac Electric Hoist as the current alternative.

Tractel Tralift TE Hoists are motorized chain hoists that are used to lift and transfer loads. The hoist is designed for permanent installation on a jib crane, or on motorized or non motorized trolley. They are suitable for handling relatively heavy objects while simultaneously reducing the physical effort of the user. The hoist is operated using a push button pendant control.

  • Robust.
  • WLL 125kg to 20000 kg.
  • Compact.
  • Reliable.
  • Minimum headroom.
  • Complete fitting.
  • Reduced maintenance.
  • Adjustable upper and lower operational electrical limit switches.
  • Low voltage controls using Schneider components.
  • Emergency stop on pendant control box.
  • Plug in system on control cable.
  • Friction clutch load limiter operating as a safety limit switch.
  • Load chain to DIN 5684, class 80 galvanized.
  • Multi sized chain bags.
  • IP 54 protection - Insulation class F.
  • Power supply 230 or 400 V – 3 phase – 50 or 60 Hz..
  • FEM group 1Am – ISO M4.

Hoist Components

  1. Hoisting motor.
  2. Electrical panel.
  3. Suspension hook.
  4. Load wheel with chain guide.
  5. Gearbox.
  6. Load hook.
  7. Chain bag.
  8. Pendant control.
  9. Overload friction clutch.
  10. Lifting brake.
  11. Upper and lower adjustable electrical limit switches.
  12. Terminal box.
 Tractel TRALIFT TE Main components

Dimensions

Dimensions

Model Number of falls Dimensions (mm)
Trolley + hoist Trolley
A B C D E F G H I J K L a b c d e f g h i j
min max min max
TE 150 1 187 78 22 75 175 300 190 490 610 330 200 190 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 250 1 197 88 22 75 190 310 200 510 698 345 215 205 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 500 2 207 78 22 85 190 310 200 510 708 355 215 205 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 500 1 217 88 23 92 200 330 200 530 867 372 220 210 225 102 324 424 51 228 161 328 21 15 62 90 25 5
TE 1000 2 211 67 30 94 200 330 200 530 756 401 220 210 252 122 334 434 59 232 161 332 23 15 62 110 30 14
TE 1000 1 239 94 30 102 185 350 235 585 924 394 285 190 252 122 334 434 59 232 161 332 23 15 62 110 30 14
TE 2000 2 187 98 37 133 185 350 235 585 953 423 285 190 300 140 338 438 67 232 161 332 25 18 82 127 40 17

Other Dimensional Information

Model WLL (kg) Number of falls Load chain Dia. x pitch (mm) Lifting speed (m/min) Hoisting motor power (kW) Hoist weight lift 3 m (kg) Hoist headroom (mm) Trolley motor power (kW) Hoist/trolley weight Beam
adjustment
mini/maxi
(mm)		 Mini
curve
radius
(mm)
Push type
(kg)		 Chain
type(1)
(kg)		 Electric
type
(kg)
TE125 125 1 4 x 12 10
10/3.3		 0.3
0.3/0.13		 24 330 - 3.5 - - 50 to 220
or
221 to
300(2)		 900
TE250 250 1 5 x 15 8
8/2.7		 0.4
0.4/0.13		 30 340 - 3.5 - - 900
TE500 500 2 5 x 15 4
4/1.3		 0.4
0.4/0.13		 33 430 0.18 8.5 - 50 900
TE500 500 1 6.3 x 19 8
8/2.7		 0.9
0.9/0.13		 38 400 0.25 8.5 - 55 900
TE1000 1000 2 6.3 x 19 4
4/1.3		 0.9
0.9/0.13		 41 480 0.18/0.6 10.5 19 60 58 to 220
or 221 to
300(2)		 1000
TE1000 1000 1 8 x 24 6.3
6.3/1.9		 1.6
1.6/0.55		 58 490 10.5 19 73 1000
TE2000 2000 3 8 x 24 3.15
3.15/0.8		 1.6
1.6/0.55		 62 580 18 22.5 89 66 to 220
or 220 to
300(2)		 1500

Specifications

  • Classified as H4 ASME Hoist Duty Class
  • Powered by 3phase 230v or 460v (fully convertable) w/ phase protector
  • Enclosure rating - hoist IP54 pendant IP65 (NEMA3)
  • Fully Adjustable cam style upper and lower electrical limit switches
  • Available in one or two fall versions
  • A rigid suspension hook or lug
  • Cast aluminium frame made of bolted modular parts
  • Motor mounted in the hoist frame and fitted with thermal protection
  • Grade 80 case hardened load chain
  • Swivelling load hook mounted on ball bearings
  • Double gear train gearbox sub-assembly with a friction clutch load limiting device
  • Separate asbestos free electromagnetic brake
  • Low voltage electrical (48v) pendant control with emergency stop button.
  • Stitched nylon chain bag
  • Temperature range -10C to +40C
    Table - Tralift® TE with 10 ft. lift 1 speed / 2speed
tralift-tech-specs.pdf

Technical Datasheet

(approx. 1.2Mb)
Tralift te technical sheet 125kg to 2 tonne.pdf

Technical Specifitcations 125kg to 2 tonne

(approx. 2.6Mb)
te technical sheet dimensions hoist with electric trolley.pdf

Tralift TE Dimensions

(approx. 0.3Mb)
tralift te operation and user guide.pdf

Operational and User Guide

(approx. 4.4Mb)

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Contact Us About This Product
