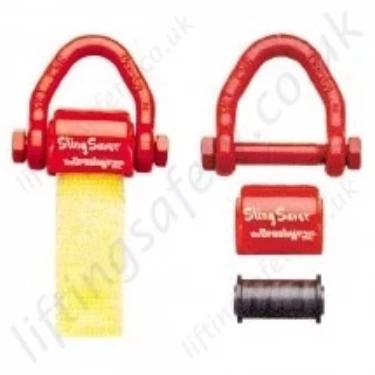

With the Crosby Web Connectors, the increased radius of spool gives wider sling bearing surface resulting in an increased area for load distribution, therefore increasing synthetic sling efficiency as compared to standard anchor and chain shackle bows and conventional eye hooks. This allows 100% of the slings rated Working Load Limit to be achieved. This also allows better load distribution on internal fibers.

  • All Alloy construction.
  • Durable vinyl cover that protects sling at eye and keeps sling positioned correctly on spool.
  • Design factor of 5 to 1.
  • Connects synthetic web and synthetic round slings to conventional Crosby hardware including 320N Eye Hook, additional Crosby Grade 8 fittings, master links, rings and shackles
  • Makes a field assembled bridle quick and easy.
  • No cotter pin to snag sling material.
  • Replacement kit for spool and web cover available.
  • Designed for use with Type III (Eye & Eye), Class 7, 2 ply webbing & synthetic round slings. Also accomodates single ply and endless slings.

Metric Dimensions & Specifications

See imperial tab above for imperial specifications

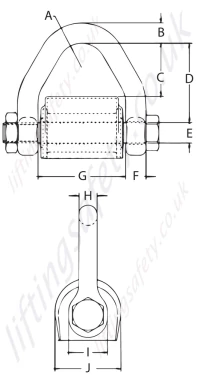

  Round Sling Size (No.) Web Slings*   Working Load Limit (t)†   S-280 Stock No.   Weight Each (kg) Dimensions (mm)
Sling Webbing Width (mm) Sling Eye Width (mm) Ply
A B C D E F G H I J
1 & 2 50 50 2 2.95 1021681 .68 19.1 15.7 41.4 62.0 16.0 15.7 68.5 14.2 30.2 51.5
3 75 35 2 4.08 1021690 .86 19.1 17.5 27.9 51.0 19.1 17.5 55.5 15.2 35.1 59.5
4 100 50 2 5.67 1021700 1.32 19.1 20.6 42.2 65.0 22.4 19.1 68.5 17.5 41.1 62.5
5 & 6 150 75 2 7.70 1021709 2.31 25.4 23.9 62.5 89.0 25.4 22.4 93.5 22.4 47.8 72.0
*Designed for use with Type III, (Eye & Eye), Class 7, 2 Ply web slings. For 3" and larger webbing width, tapered eye is required

Maximum Proof Load is 2-1/2 times the Working Load Limit. Minimum ultimate strength is 5 times the Working Load Limit.

Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Roundslings by the Web Sling & Tie Down Association. WSTDA-RS1 (revised 2001)


Crosby S280 Sling Saver Web Connector



Round Sling Size (No.) Web
Slings*
S-280
Working
Load
Limit
(tons)^
S-280
Stock
No.
Weight
Each
(lbs.)
Dimensions
(in.)
Webbing
Width
(in.)
Eye
Width
(in.)
Ply A B C D E F G H I J
1 & 2 2 2 2 3-1/4 1021681 1.5 .75 .62 1.63 2.44 .63 .62 2.69 .56 1.19 2.02
3 3 1.5 2 4-1/2 1021690 1.9 .75 .69 1.10 2.01 .75 .69 2.19 .60 1.38 2.34
4 4 2 2 6-1/4 1021700 2.9 .75 .81 1.66 2.56 .88 .75 2.69 .69 1.62 2.46
5 & 6 6 3 2 8-1/2 1021709 5.1 1.00 .94 2.47 3.50 1.00 .88 3.69 .88 1.88 2.84
Part N° Round Sling Size (No.) Sling Webbing Width (mm) Sling Eye Width (mm) Ply Working Load Limit (t) Weight Each (kg) Unit Price Quantity
2384-T17167
1021681
1 & 2 50 50 2 2.95 0.68 Quote Required
2384-T17168
1021690
3 75 35 2 4.08 0.86 Quote Required
2384-T17169
1021700
4 100 50 2 5.67 1.32 Quote Required
2384-T17170
1021709
5 & 6 150 75 2 7.7 2.31 Quote Required


With the Crosby Web Connectors, the increased radius of spool gives wider sling bearing surface resulting in an increased area for load distribution, therefore increasing synthetic sling efficiency as compared to standard anchor and chain shackle bows and conventional eye hooks. This allows 100% of the slings rated Working Load Limit to be achieved. This also allows better load distribution on internal fibers.

  • All Alloy construction.
  • Durable vinyl cover that protects sling at eye and keeps sling positioned correctly on spool.
  • Design factor of 5 to 1.
  • Connects synthetic web and synthetic round slings to conventional Crosby hardware including 320N Eye Hook, additional Crosby Grade 8 fittings, master links, rings and shackles
  • Makes a field assembled bridle quick and easy.
  • No cotter pin to snag sling material.
  • Replacement kit for spool and web cover available.
  • Designed for use with Type III (Eye & Eye), Class 7, 2 ply webbing & synthetic round slings. Also accomodates single ply and endless slings.

Metric Dimensions & Specifications

See imperial tab above for imperial specifications

  Round Sling Size (No.) Web Slings*   Working Load Limit (t)†   S-280 Stock No.   Weight Each (kg) Dimensions (mm)
Sling Webbing Width (mm) Sling Eye Width (mm) Ply
A B C D E F G H I J
1 & 2 50 50 2 2.95 1021681 .68 19.1 15.7 41.4 62.0 16.0 15.7 68.5 14.2 30.2 51.5
3 75 35 2 4.08 1021690 .86 19.1 17.5 27.9 51.0 19.1 17.5 55.5 15.2 35.1 59.5
4 100 50 2 5.67 1021700 1.32 19.1 20.6 42.2 65.0 22.4 19.1 68.5 17.5 41.1 62.5
5 & 6 150 75 2 7.70 1021709 2.31 25.4 23.9 62.5 89.0 25.4 22.4 93.5 22.4 47.8 72.0
*Designed for use with Type III, (Eye & Eye), Class 7, 2 Ply web slings. For 3" and larger webbing width, tapered eye is required

Maximum Proof Load is 2-1/2 times the Working Load Limit. Minimum ultimate strength is 5 times the Working Load Limit.

Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Roundslings by the Web Sling & Tie Down Association. WSTDA-RS1 (revised 2001)


Crosby S280 Sling Saver Web Connector



Round Sling Size (No.) Web
Slings*
S-280
Working
Load
Limit
(tons)^
S-280
Stock
No.
Weight
Each
(lbs.)
Dimensions
(in.)
Webbing
Width
(in.)
Eye
Width
(in.)
Ply A B C D E F G H I J
1 & 2 2 2 2 3-1/4 1021681 1.5 .75 .62 1.63 2.44 .63 .62 2.69 .56 1.19 2.02
3 3 1.5 2 4-1/2 1021690 1.9 .75 .69 1.10 2.01 .75 .69 2.19 .60 1.38 2.34
4 4 2 2 6-1/4 1021700 2.9 .75 .81 1.66 2.56 .88 .75 2.69 .69 1.62 2.46
5 & 6 6 3 2 8-1/2 1021709 5.1 1.00 .94 2.47 3.50 1.00 .88 3.69 .88 1.88 2.84
