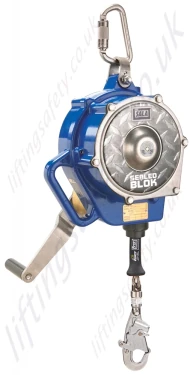

Sala Sealed Blok Cable Self Retracting Lifeline (SRL), RSQ and/or Rescue Winch - Length: 15m

Sala Sealed Blok Self Retracting Lifeline with 15m Stainless or Galvanised Cable, Aluminium housing with Optional Retrieval winch and RSQ

Model:

SSBC-4705


The SALA 'Sealed Bloks' Self Retracting Lifelines (SRL') is the most comprehensive in the industry, with decades of proven field service in the toughest environments.

The heavy-duty sealed design keeps the critical working components free of dirt, grease, water and chemicals.

Ideal for use in harsh environments such as offshore, confined space, salt water and dirty environments.

Product Features

  • Pivoting Anchorage Loop - Allows the block to move slightly to minimise friction on the cable if the block is not well aligned.
  • Sealed Design (meets IP68 rating) - All critical parts of the block are sealed from contamination. This greatly improves reliability in harsh conditions.
  • Aluminium Housing - For optimum durability in harsh environments.
  • 2,267Kg Rated handle - Makes transporting the block easier and acts as a secondary anchorage for dropped object requirements.
  • Impact Indicator - Allows easy visual inspection to determine if the unit has experienced a fall by a user.
  • Tripod/Davit Arm Bracket - Allows connection to Tripods and DBI-SALA® Advanced™ hoist making the Sealed-Blok™ part of a global fall arrest, rescue and confined space system.
  • Retrieval Winch (optional) - Integrated retrieval winch provides a built-in safety plan, easy to put in place and use by a non-rescue specialist.
  • 5mm Diameter Rope - Provides increased strength.
  • 1633kg Gate - Added gate strength ensures the safest connection even in harsh environments.
  • RSQ Options - Allows the rescuer to choose the most appropriate rescue option after a fall; automatic or assisted rescue descent mode for additional worker safety.
  • FAST-Line lifeline assembly - The only non-sealed portion of the block can be easily changed on-site by a competent person. No need to open the block. The cable exchange is quick and easy to do, with minimum tools required.

Options

Part No. 3400950 3400951 3400961 3400956 3400955 3400944
Type Self Retracting Lifeline Self Retracting Lifeline Self Retracting Lifeline with RSQ Self Retracting Lifeline with Rescue Winch Self Retracting Lifeline with Rescue Winch Self Retracting Lifeline with Rescu Winch and RSQ
Lifeline Length (m) 15 15 15 15 15 15
Lifeline Material Galvanised Stainless Steel Stainless Steel Stainless Steel Galvanised Stainless Steel
Connector Material Galvanised Galvanised Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Weight (kg) 13.0 13.0 13.0 14.9 14.9 14.9
Standards CE, EN360 CE, EN360 CE, EN360, EN341 Class D CE, EN360, EN1496 Class B CE, EN360, EN1496 Class B CE, EN360, EN1496 Class B, EN341 Class D

Rescue Options (RSQ models only)


Sala Rsq Fall Arrest Mode
Exclusive design provides both fall arrest with assisted rescue capabilities and automatic self rescue for ultimate versatility.

• Built-in Rescue Device becomes an integral part of a Rescue Plan
• Standard fall arrest mode
• Automatic rescue mode
• Remote/Assisted activation

Fall Arrest Mode / Assisted Rescue
A speed sensing brake stops the fall, reduces forces imposed on the user to safe levels of 6kN or less and allows for assisted rescue to take place.

Automatic Rescue Mode / Self Rescue Descent
A speed sensing brake slows the fall, then instantly a centrifugal brake activates, lowering the user at a controlled speed to the next level or ground.

Assisted rescue options 'engage; the descent mode.

Traditional assisted rescue operations may also be conducted.
Sala Sealed Blok.pdf

Sala Sealed Blok

(approx. 18.2Mb)
Part N° Type Lifeline Material Integrated Rescue Winch RSQ Lifeline Length (m) Unit Price Quantity
4705-T23936
3400950
Self Retracting Lifeline Galvanised No No 15 £ 1919.26
4705-T23937
3400951
Self Retracting Lifeline Stainless Steel No No 15 £ 1976.70
4705-T23938
3400961
Self Retracting Lifeline Stainless Steel No Yes 15 £ 2436.07
4705-T23939
3400955
Self Retracting Lifeline Galvanised Yes No 15 £ 3099.75
4705-T23940
3400956
Self Retracting Lifeline Stainless Steel Yes No 15 £ 3185.18
4705-T23951
3400944
Self Retracting Lifeline Stainless Steel Yes Yes 15 £ 3885.08
Add To Quote Request   ?

The SALA 'Sealed Bloks' Self Retracting Lifelines (SRL') is the most comprehensive in the industry, with decades of proven field service in the toughest environments.

The heavy-duty sealed design keeps the critical working components free of dirt, grease, water and chemicals.

Ideal for use in harsh environments such as offshore, confined space, salt water and dirty environments.

Product Features

  • Pivoting Anchorage Loop - Allows the block to move slightly to minimise friction on the cable if the block is not well aligned.
  • Sealed Design (meets IP68 rating) - All critical parts of the block are sealed from contamination. This greatly improves reliability in harsh conditions.
  • Aluminium Housing - For optimum durability in harsh environments.
  • 2,267Kg Rated handle - Makes transporting the block easier and acts as a secondary anchorage for dropped object requirements.
  • Impact Indicator - Allows easy visual inspection to determine if the unit has experienced a fall by a user.
  • Tripod/Davit Arm Bracket - Allows connection to Tripods and DBI-SALA® Advanced™ hoist making the Sealed-Blok™ part of a global fall arrest, rescue and confined space system.
  • Retrieval Winch (optional) - Integrated retrieval winch provides a built-in safety plan, easy to put in place and use by a non-rescue specialist.
  • 5mm Diameter Rope - Provides increased strength.
  • 1633kg Gate - Added gate strength ensures the safest connection even in harsh environments.
  • RSQ Options - Allows the rescuer to choose the most appropriate rescue option after a fall; automatic or assisted rescue descent mode for additional worker safety.
  • FAST-Line lifeline assembly - The only non-sealed portion of the block can be easily changed on-site by a competent person. No need to open the block. The cable exchange is quick and easy to do, with minimum tools required.

Options

Part No. 3400950 3400951 3400961 3400956 3400955 3400944
Type Self Retracting Lifeline Self Retracting Lifeline Self Retracting Lifeline with RSQ Self Retracting Lifeline with Rescue Winch Self Retracting Lifeline with Rescue Winch Self Retracting Lifeline with Rescu Winch and RSQ
Lifeline Length (m) 15 15 15 15 15 15
Lifeline Material Galvanised Stainless Steel Stainless Steel Stainless Steel Galvanised Stainless Steel
Connector Material Galvanised Galvanised Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Weight (kg) 13.0 13.0 13.0 14.9 14.9 14.9
Standards CE, EN360 CE, EN360 CE, EN360, EN341 Class D CE, EN360, EN1496 Class B CE, EN360, EN1496 Class B CE, EN360, EN1496 Class B, EN341 Class D

Rescue Options (RSQ models only)


Sala Rsq Fall Arrest Mode
Exclusive design provides both fall arrest with assisted rescue capabilities and automatic self rescue for ultimate versatility.

• Built-in Rescue Device becomes an integral part of a Rescue Plan
• Standard fall arrest mode
• Automatic rescue mode
• Remote/Assisted activation

Fall Arrest Mode / Assisted Rescue
A speed sensing brake stops the fall, reduces forces imposed on the user to safe levels of 6kN or less and allows for assisted rescue to take place.

Automatic Rescue Mode / Self Rescue Descent
A speed sensing brake slows the fall, then instantly a centrifugal brake activates, lowering the user at a controlled speed to the next level or ground.

Assisted rescue options 'engage; the descent mode.

Traditional assisted rescue operations may also be conducted.
Sala Sealed Blok.pdf

Sala Sealed Blok

(approx. 18.2Mb)
Part N° Type Lifeline Material Integrated Rescue Winch RSQ Lifeline Length (m) Unit Price Quantity
4705-T23936
3400950
Self Retracting Lifeline Galvanised No No 15 £ 1919.26
4705-T23937
3400951
Self Retracting Lifeline Stainless Steel No No 15 £ 1976.70
4705-T23938
3400961
Self Retracting Lifeline Stainless Steel No Yes 15 £ 2436.07
4705-T23939
3400955
Self Retracting Lifeline Galvanised Yes No 15 £ 3099.75
4705-T23940
3400956
Self Retracting Lifeline Stainless Steel Yes No 15 £ 3185.18
4705-T23951
3400944
Self Retracting Lifeline Stainless Steel Yes Yes 15 £ 3885.08
Add To Quote Request   ?

Contact Us About This Product
