Kito "LX" Lightweight Lever Hoist

Kito "LX" Lightweight Lever Hoist

An extremely compact, portable ratchet lever hoist designed for ease of use in elevated work positions. 250kg or 500kg.

Model:

Kito Lx / KLLB-3656

Kito "LX" Lightweight Lever Hoist

Kito LX 250kg lever Block Kito LX 500kg Lever Block kito 250kg Dimension drawing kito 500kg Dimensions drawing
More from:
Kito

Two capacities available – the LX003 has a rated capacity of 250kg, and the LX005 has a rated capacity of 500kg.

Extremely compact & light, these LX series hoists are suitable for work in tight quarters or elevated locations where fastening, fixing, or positioning of light loads is required.

Extremely compact and light

Kito’s innovative technology makes the LX series extremely compact and light. It’s very easy to carry, and easy to use, even in tight quarters or in elevated work locations. What’s more, it can be conveniently stored in a special carrying case (LX003 only).

Reliable load-holding performance

The LX series, designed with a single-step reduction gear, is characterized by a small manual fastening force and assured load holding.Reliable load fastening can be provided to the last clicking of the lever.

Nickel-plated chain

Kito's unique R&D produces world class performance. The grade 100(1000N/mm2) chain, made from special high strength alloy, features an unbeatable combination of toughness and resistance to corrosion & wear. (For special environments consult your Kito distributor since corrosion a resistance varies depending on corrosives involved)

Hook latch with safety mechanism

The hook latch employs tip-supporting structure for guaranteed holding and is highly resistant to deformation and damage.

Kito’s original free chain adjusting mechanism

A required chain length is provided instantly with ease by simply turning the selector lever to “N (neutral)” position.

Maintainability

Fasteners are designedto protect threads from damage making maintenance easier.

Specifications

Rated load (W.L.L.) 250kg 500kg
Code LX003 LX005
Standard lift (m) 1 1.2
Hand-pull to lift full load (N) [kg] 200 [20] 310 [31]
Load Chain Diameter (mm) x Fall (mm) 3.2x1 4.3x1
Minimum headroom (distance) between hooks (mm) 205 205
Test load (kg) 380 750
Mass (Net weight)* (kg) 1.6 2.6
Shipping weight (Approx.) (kg) 1.8 2.8

Dimensions

Rated load (WLL)

 250kg 500kg
Code LX003 LX005

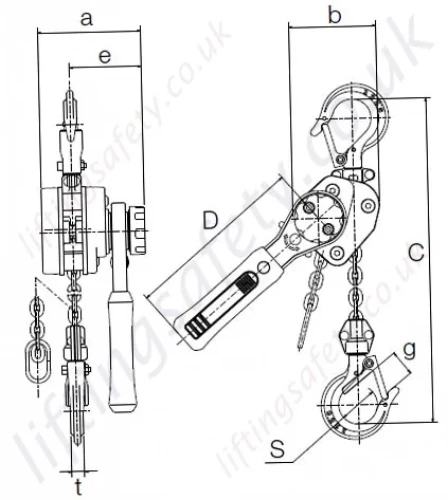

Dimensions kito 250kg Dimension drawing kito 500kg Dimensions drawing
a (mm) 85.5 99
b (mm) 73.5 93
c (mm) 205 246
d (mm) 150 180
e (mm) 60 67
g (mm) 21 24.5
s (mm) 32 35.5
t (mm) 11 12

Pricing

(min:1.0) (1.0 included in price)
Guide Price Request Quote
Description

Two capacities available – the LX003 has a rated capacity of 250kg, and the LX005 has a rated capacity of 500kg.

Extremely compact & light, these LX series hoists are suitable for work in tight quarters or elevated locations where fastening, fixing, or positioning of light loads is required.

Extremely compact and light

Kito’s innovative technology makes the LX series extremely compact and light. It’s very easy to carry, and easy to use, even in tight quarters or in elevated work locations. What’s more, it can be conveniently stored in a special carrying case (LX003 only).

Reliable load-holding performance

The LX series, designed with a single-step reduction gear, is characterized by a small manual fastening force and assured load holding.Reliable load fastening can be provided to the last clicking of the lever.

Nickel-plated chain

Kito's unique R&D produces world class performance. The grade 100(1000N/mm2) chain, made from special high strength alloy, features an unbeatable combination of toughness and resistance to corrosion & wear. (For special environments consult your Kito distributor since corrosion a resistance varies depending on corrosives involved)

Hook latch with safety mechanism

The hook latch employs tip-supporting structure for guaranteed holding and is highly resistant to deformation and damage.

Kito’s original free chain adjusting mechanism

A required chain length is provided instantly with ease by simply turning the selector lever to “N (neutral)” position.

Maintainability

Fasteners are designedto protect threads from damage making maintenance easier.

Technical Information

Specifications

Rated load (W.L.L.) 250kg 500kg
Code LX003 LX005
Standard lift (m) 1 1.2
Hand-pull to lift full load (N) [kg] 200 [20] 310 [31]
Load Chain Diameter (mm) x Fall (mm) 3.2x1 4.3x1
Minimum headroom (distance) between hooks (mm) 205 205
Test load (kg) 380 750
Mass (Net weight)* (kg) 1.6 2.6
Shipping weight (Approx.) (kg) 1.8 2.8

Dimensions

Rated load (WLL)

 250kg 500kg
Code LX003 LX005
Dimensions kito 250kg Dimension drawing kito 500kg Dimensions drawing
a (mm) 85.5 99
b (mm) 73.5 93
c (mm) 205 246
d (mm) 150 180
e (mm) 60 67
g (mm) 21 24.5
s (mm) 32 35.5
t (mm) 11 12
