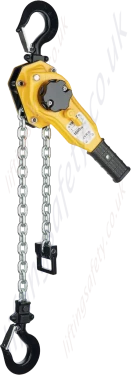

Yale PT-B Hand Lever Hoist for Everyday and Harsh Conditions
The Yale PT-B hand lever hoist is a further development of the proven Yale PT range, designed for reliable everyday use and demanding working environments. With a rugged construction, improved weatherproofing and enhanced safety features, the PT-B provides dependable manual lifting and pulling performance, even in harsh conditions.
Key Benefits of the Yale PT-B
- Rugged hand lever hoist designed for demanding everyday use
- Improved weatherproofing with an enclosed hand-wheel
- Low operating effort thanks to optimised gearing and improved bearings
- Proven load pressure brake technology
- Impact-resistant stamped steel frame
- Forked safety latch for improved hook engagement
- Forged swivel hooks designed to yield under overload
- Closed chain guide for reliable load chain guidance
- Comfortable non-slip rubber handle grip
- Smooth one-handed free chaining
- Corrosion-resistant components for harsh environments
- Optional internal load limiter for additional overload protection
Improved Weatherproofing and Rugged Design
The Yale PT-B features a new enclosed hand wheel design that helps protect the internal components from water and dirt, providing improved weather resistance and durability. The impact-resistant stamped steel frame is built to withstand repeated, rigorous use in demanding industrial environments.
Easy-to-Operate Hand Lever Hoist
Optimised gearing and improved bearings within the housing cover reduce the effort required to operate the hand lever. The result is smooth and easy operation, helping users position and lift loads efficiently with less manual effort.
The comfortable non-slip rubber handle grip provides a secure and ergonomic hold, helping to prevent hand slippage during operation.
Reliable Load Pressure Brake
The Yale PT-B incorporates a proven load pressure brake system, based on the principle of Thomas Weston's 1875 patent. This established braking technology provides reliable load control and has been a key feature of Yale manual hoists for generations.
Enhanced Safety Hook Latches
For improved safety, the PT-B is fitted with a new forked safety latch. The design allows the latch to seat more securely within the hook, helping to prevent accidental disengagement and reducing the risk of latch damage.
The bolt-on swivel hooks also simplify inspection and maintenance. The forged hooks are designed to yield under overload rather than suddenly breaking, providing an additional safety benefit.
Reliable Load Chain Guidance
The load chain runs securely through the load sheave and is protected by a closed chain guide, helping to prevent unintentional chain slippage during operation. This provides reliable load guidance and contributes to the overall durability of the hand lever hoist.
Easy and Smooth Free Chaining
The Yale PT-B provides quick and easy free chaining for taking up slack chain and positioning loads. Free chaining can be carried out with one hand, making the hoist particularly convenient when precise load positioning is required.
The design helps prevent accidental free chaining while the hoist is under load. A cast chain end stop also makes it easy to position the chain when free chaining and helps prevent the chain from entering the lift-wheel and causing a jam.
Corrosion Protection for Harsh Environments
For enhanced durability in challenging working conditions, the chain guide, chain stripper and brake components feature zinc plating or MKS coating. These corrosion-resistant finishes provide additional protection when the Yale PT-B is used in harsh or demanding environments.
Optional Internal Load Limiter
An optional internal load limiter is available to provide additional protection against overloading. When the hoist is overloaded, the handle is allowed to rotate freely, helping to prevent damage to the unit.
Load limiter versions feature a black hand-wheel, providing quick and easy identification of the overload-protected model on site.
Shortened Hand Lever
Hand Lever Shortened by 30% to improve operation in confined spaces
Closed Hand-Wheel

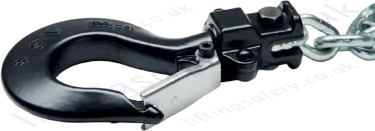

New Design Hooks and Safety Latch
