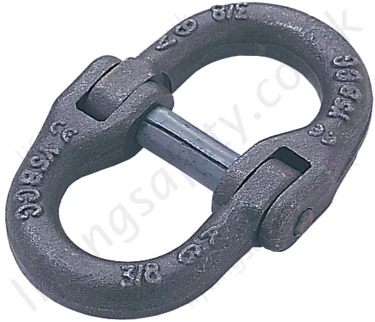

Crosby LOK-A-LOY 6 Hammerlock Component Connector / Connecting Link. Range from 1470kg to 26,000kg
Model:
Crosby A-336
Quick Ref:
CCL-2480
Crosby A336 Component Connector for Grade 6/60 Chain Sling Arrangements
Forged Alloy Steel Connecting Link - Quenched and Tempered.
Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
Easy to assemble

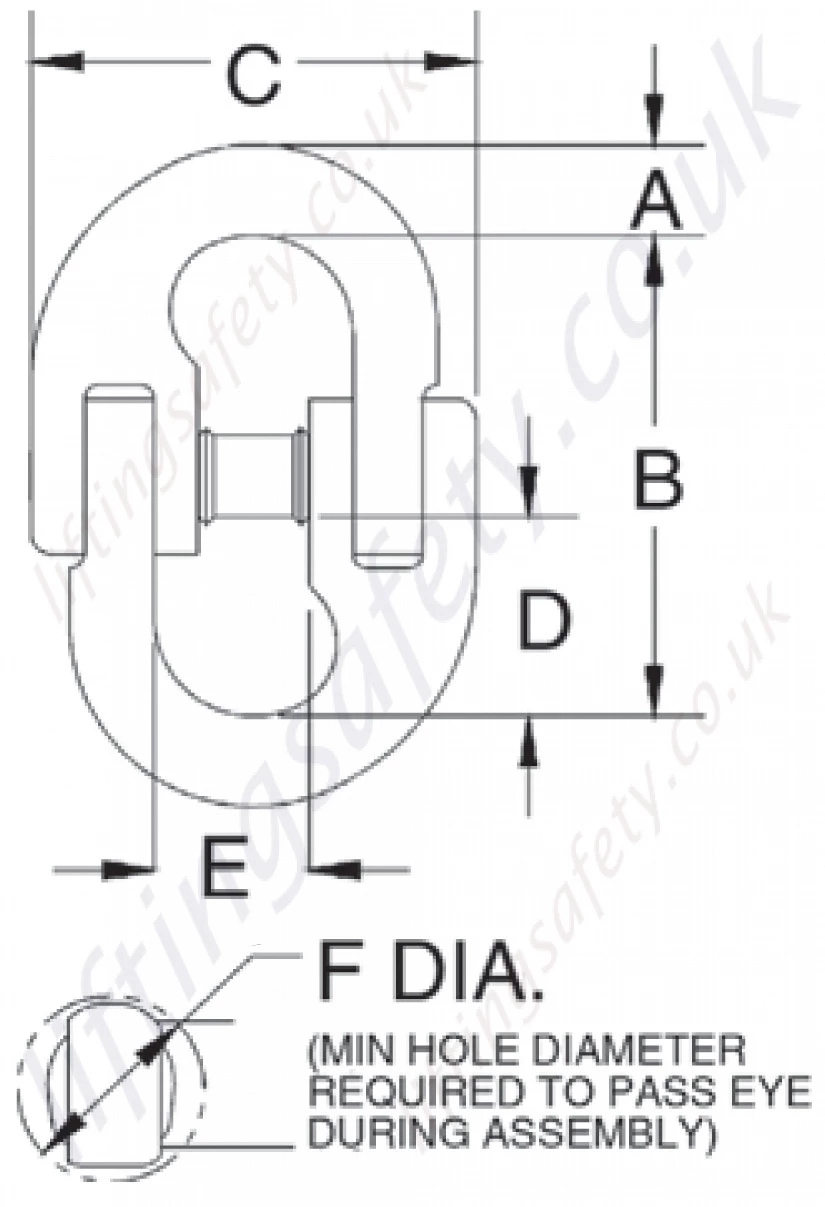

Metric Dimensions & Specifications
Chain Size (mm)
A-366 Stock No.
Working Load Limit (t)*
Weight (kg)
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F - Dia. of Hole to Accept Link
6-7
1014397
1.47
.11
7.85
52.5
42.9
19.8
19.8
12.7
8-10
1014413
3.00
.27
11.4
69.0
58.5
26.9
27.7
16.8
13
1014431
5.10
.54
14.7
85.0
80.5
32.5
35.8
22.4
16
1014459
7.48
1.10
19.8
99.5
100
39.6
42.9
26.9
19
1014477
10.45
1.76
22.6
123
113
50.0
51.0
30.2
22
1014495
13.04
2.75
25.4
148
135
60.5
64.0
35.1
26
1014510
17.58
3.19
27.4
165
154
72.0
65.0
37.3
32
1014538
26.00
6.00
35.1
215
194
96.0
96.0
44.0
*Ultimate Load is 4 times the Working Load Limit. The WLL of the A-336 are less than Grade 80 chain ratings. When using in Grade 80 chain slings, ANSI B30.9c requires that the Working Load Limit of a sling must not exceed the lowest Working Load Limit of the components in the system.
