William Hackett C4 Combined Chain Hoist and Push Travel Trolley

William Hackett C4 Combined Chain Hoist and Push Travel Trolley

Manual hand chain block with built-in/integrated manual push-pull plain travel beam trolley. Lifting capacity options from 500kg up to 10 tonne.

Model:

WH C4 CH PT / WHCC-5625

Manufacturing Standard: EN 13157:2004 + AI:2009

William Hackett C4 Combined Chain Hoist and Push Travel Trolley

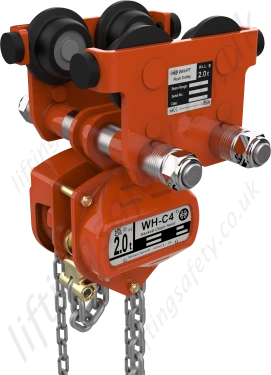

Push Travel Trolley Hoist Combination
More from:
William Hackett

Push Travel Trolley-Hoist Combination

The William Hackett Combined Block and Chain Hoists are designed, manufactured, and proof load tested in the UK. Each unit is supplied fully assembled and ready for installation. In this configuration, the standard top hook of the chain hoist is removed and replaced with a purpose-designed hanging plate. This bespoke plate enables direct suspension from the trolley crossbars, minimising lost headroom and maximising lifting height.

This version, the WH C4 CH PT is the plain push travel variant, but a hand chain driven geared travel trolley version is also available, the WH C4 CH GT. This push travel version doesn't have the second hand chain that drives the beam trolley movement; it only has a single hand chain, which controls the raising and lowering of the hoist hook.

Key Hoist Features

  • WLL Range: 500kg - 10t
  • Proof Load Test: 1.5 X WLL
  • Safety Factor: 4:1
  • Temp Range: -20°C to +120°C

Trolley-Hoist Specifications: WH C4 CH PT

  • Standards: British Standard BS EN 13157:2004 + AI:2009.
  • Proof Tested: 1.5 x WLL.
  • Safety factor: 4:1.
  • Temperature range: -20°C to +120°C.
  • Track width range: 70mm - 305mm (2.8 inches to 12 inches). Trolleys available with standard (range 1) or extended (range 2) trolley bars to fit a range of beam widths.
  • End stops: Fitted as standard.
  • Anti-tilt: Fitted as an optional extra.
  • Attachment: Hanging plate fitted into the chain hoist.

Technical Specifications: Metric

Part Code WLL No. of Falls Beam Range 1 (mm) Beam Range 2 (mm) A max (mm) B (mm) C (mm) Mass (kg)
066.050 500kg 1 70 - 203 - 294 190 295 14.6
066.100 1 Tonne 1 88 - 203 88 - 305 311 206 305 22.4
066.200 2 Tonne 1 88 - 203 88 - 305 324 246 437 31.9
066.320 3.2 Tonnes 2 100 - 203 100 - 305 348 300 493 50.1
066.500 5 Tonne 2 114 - 203 114 - 305 369 336 573 77.4
066.1000 10 Tonne 4 124 - 203 124 - 305 392 525 892 137.4

Technical Specifications: Imperial

Part Code WLL No. of Falls Beam Range 1 (in) Beam Range 2 (in) A (in) B (in) C (in) Mass (lbs)
066.050 0.5 Tons 1 2.8 - 8 - 11.57 7.48 11.61 32.19
066.100 1 Ton 1 3.5 - 8 3.5 -12 12.24 8.11 12.01 49.38
066.200 2 Ton 1 3.5 - 8 3.5 -12 12.80 9.69 17.20 70.33
066.320 3.2 Tons 2 4 - 8 4 - 12 13.7 11.81 19.41 110.45
066.500 5 Ton 2 4.5 - 8 4.5 - 12 14.5 13.23 22.56 170.64
066.1000 10 Ton 4 5 - 8 5 - 12 15.4 20.67 35.12 302.92

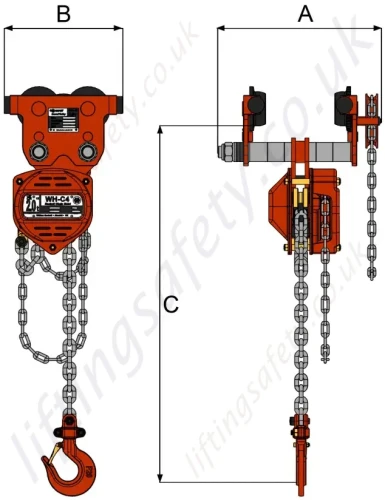

Push Trolley Chain Hoist Dimensions

Applications

Combined (integrated) hoists are engineered with the chain hoist permanently mounted to the trolley, eliminating the traditional top hook connection. This design increases the effective height of lift and ensures the hoist remains dedicated to its installed position, preventing relocation for alternative rigging tasks.

The hoist and trolley are classified as a single integrated unit and supplied under one serial number, simplifying asset management and traceability.

These units are specifically intended for use on runway beams and are ideally suited to factories and manufacturing facilities. Typical applications include lifting and traversing dies, molds, tooling, and other production components.

Pricing

(min:3) (3 included in price)
Sale Price £337.87

£263.53

Ex. VAT

Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.

Availability

Usually 1-2 Days (Next working day delivery may be possible) - 1pm cut-off

Push Travel Trolley-Hoist Combination

The William Hackett Combined Block and Chain Hoists are designed, manufactured, and proof load tested in the UK. Each unit is supplied fully assembled and ready for installation. In this configuration, the standard top hook of the chain hoist is removed and replaced with a purpose-designed hanging plate. This bespoke plate enables direct suspension from the trolley crossbars, minimising lost headroom and maximising lifting height.

This version, the WH C4 CH PT is the plain push travel variant, but a hand chain driven geared travel trolley version is also available, the WH C4 CH GT. This push travel version doesn't have the second hand chain that drives the beam trolley movement; it only has a single hand chain, which controls the raising and lowering of the hoist hook.

Key Hoist Features

  • WLL Range: 500kg - 10t
  • Proof Load Test: 1.5 X WLL
  • Safety Factor: 4:1
  • Temp Range: -20°C to +120°C

Trolley-Hoist Specifications: WH C4 CH PT

  • Standards: British Standard BS EN 13157:2004 + AI:2009.
  • Proof Tested: 1.5 x WLL.
  • Safety factor: 4:1.
  • Temperature range: -20°C to +120°C.
  • Track width range: 70mm - 305mm (2.8 inches to 12 inches). Trolleys available with standard (range 1) or extended (range 2) trolley bars to fit a range of beam widths.
  • End stops: Fitted as standard.
  • Anti-tilt: Fitted as an optional extra.
  • Attachment: Hanging plate fitted into the chain hoist.

Technical Specifications: Metric

Part Code WLL No. of Falls Beam Range 1 (mm) Beam Range 2 (mm) A max (mm) B (mm) C (mm) Mass (kg)
066.050 500kg 1 70 - 203 - 294 190 295 14.6
066.100 1 Tonne 1 88 - 203 88 - 305 311 206 305 22.4
066.200 2 Tonne 1 88 - 203 88 - 305 324 246 437 31.9
066.320 3.2 Tonnes 2 100 - 203 100 - 305 348 300 493 50.1
066.500 5 Tonne 2 114 - 203 114 - 305 369 336 573 77.4
066.1000 10 Tonne 4 124 - 203 124 - 305 392 525 892 137.4

Technical Specifications: Imperial

Part Code WLL No. of Falls Beam Range 1 (in) Beam Range 2 (in) A (in) B (in) C (in) Mass (lbs)
066.050 0.5 Tons 1 2.8 - 8 - 11.57 7.48 11.61 32.19
066.100 1 Ton 1 3.5 - 8 3.5 -12 12.24 8.11 12.01 49.38
066.200 2 Ton 1 3.5 - 8 3.5 -12 12.80 9.69 17.20 70.33
066.320 3.2 Tons 2 4 - 8 4 - 12 13.7 11.81 19.41 110.45
066.500 5 Ton 2 4.5 - 8 4.5 - 12 14.5 13.23 22.56 170.64
066.1000 10 Ton 4 5 - 8 5 - 12 15.4 20.67 35.12 302.92
Push Trolley Chain Hoist Dimensions

Applications

Combined (integrated) hoists are engineered with the chain hoist permanently mounted to the trolley, eliminating the traditional top hook connection. This design increases the effective height of lift and ensures the hoist remains dedicated to its installed position, preventing relocation for alternative rigging tasks.

The hoist and trolley are classified as a single integrated unit and supplied under one serial number, simplifying asset management and traceability.

These units are specifically intended for use on runway beams and are ideally suited to factories and manufacturing facilities. Typical applications include lifting and traversing dies, molds, tooling, and other production components.
