William Hackett C4 Combined Chain Hoist and Geared Travel Trolley

William Hackett C4 Combined Chain Hoist and Geared Travel Trolley

Manual hand chain block with built-in/integrated hand chain driven geared travel beam trolley. Lifting capacity options from 500kg up to 10 tonne.

Model:

WH C4 CH GT / WCCC-5619

Manufacturing Standard: EN 13157:2004 + AI:2009

William Hackett C4 Combined Chain Hoist and Geared Travel Trolley

Geared Travel Trolley Hoist Combination Geared Travel Trolley Hoist In Use Example Geared Travel Trolley Chains
More from:
William Hackett

Geared Travel Trolley-Hoist Combination

The William Hackett combined chain hoists and geared travel (hand chain drive) beam trolleys are designed, manufactured and proof load tested in the UK.

Supplied as a complete assembled unit, the top hook is removed from the chain hoist and is replaced with a bespoke hanging plate, which allows the bars on the trolley to suspend the hoist and reduce the closed height or headroom of the hoist. This type of hoist is often more favoured in areas where clearances are restricted and maximised raised hook heights are required.

This version, the WH C4 CH GT is the geared travel variant, but a plain push travel trolley version is also available, the WH C4 CH PT. The push travel version doesn't have the second hand chain that drives the beam trolley movement; it only has a single hand chain, which controls the raising and lowering of the hoist hook.

The hoist and trolley are classified as a single, integrated unit, sharing a single serial number, which reduces the number of assets to manage.

These units are designed for use with runway beams and are well-suited to factory and manufacturing environments for lifting and traversing dies, molds, and tooling.

Key Hoist Features

  • WLL Range: 500kg - 10t
  • Proof Load Test: 1.5 x WLL (working load limit)
  • Safety Factor: 4:1
  • Temp Range: -20°C to +120°C

Trolley-Hoist Specifications: WH C4 CH GT

  • Standards: British Standard BS EN 13157:2004 + AI:2009.
  • Proof Tested: 1.5 x WLL.
  • Safety factor: 4:1.
  • Temperature range: -20°C to +120°C.
  • Track width range: 70mm - 305mm (2.8 inches to 12 inches). Trolleys available with standard (range 1) or extended (range 2) trolley bars to fit a range of beam widths.
  • End stops: Fitted as standard.
  • Anti-tilt: Fitted as an optional extra.
  • Attachment: Hanging plate fitted into the chain hoist.

Technical Specifications: Metric

Part Code WLL No. of Falls Beam Range 1 (mm) Beam Range 2 (mm) A max (mm) B (mm) C (mm) Mass (kg)
067.050 500kg 1 70 - 203 - 322 199 295 15.4
067.100 1 tonne 1 88 - 203 88 - 305 326 221 340 20.9
067.200 2 tonne 1 88 - 203 88 - 305 346 288 437 32.5
067.320 3.2 tonnes 2 100 - 203 100 - 305 365 334 493 50.6
067.500 5 tonne 2 114 - 203 114 - 305 381 407 573 78.0
067.1000 10 tonne 4 124 - 203 124 - 305 403 525 892 139.4

Technical Specifications: Imperial

Part Code WLL No. of Falls Beam Range 1 (in) Beam Range 2 (in) A max (in) B (in) C (in) Mass (lbs)
067.050 0.5 ton 1 2.8 - 8.0 - 12.2 7.8 11.6 33.9
067.100 1 ton 1 3.5 - 8.0 3.5 - 12.0 12.8 8.7 13.4 46.0
067.200 2 ton 1 3.5 - 8.0 3.5 - 8.0 13.6 11.1 17.2 71.5
067.320 3.2 tons 2 4.0 - 8.0 4.0 - 8.0 14.4 13.2 19.4 111.3
067.500 5 ton 2 4.5 - 8.0 4.5 - 12.0 15.0 16.0 22.6 171.6
067.1000 10 ton 4 5.0 - 8.0 5.0 - 12.0 15.9 17.0 35.1 306.7

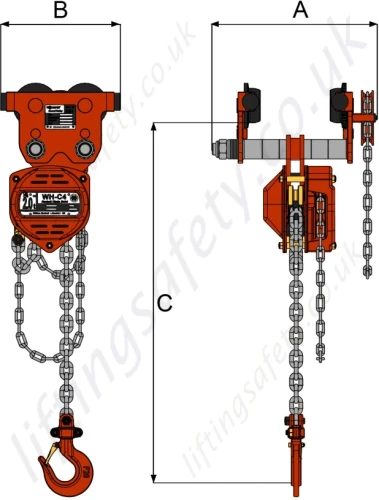

Geared Trolley Chain Hoist Dimensions

Pricing

(min:3) (3 included in price)
Sale Price £337.87

£280.44

Ex. VAT

Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.

Availability

Usually 1-2 Days (Next working day delivery may be possible) - 1pm cut-off

Description

Geared Travel Trolley-Hoist Combination

The William Hackett combined chain hoists and geared travel (hand chain drive) beam trolleys are designed, manufactured and proof load tested in the UK.

Supplied as a complete assembled unit, the top hook is removed from the chain hoist and is replaced with a bespoke hanging plate, which allows the bars on the trolley to suspend the hoist and reduce the closed height or headroom of the hoist. This type of hoist is often more favoured in areas where clearances are restricted and maximised raised hook heights are required.

This version, the WH C4 CH GT is the geared travel variant, but a plain push travel trolley version is also available, the WH C4 CH PT. The push travel version doesn't have the second hand chain that drives the beam trolley movement; it only has a single hand chain, which controls the raising and lowering of the hoist hook.

The hoist and trolley are classified as a single, integrated unit, sharing a single serial number, which reduces the number of assets to manage.

These units are designed for use with runway beams and are well-suited to factory and manufacturing environments for lifting and traversing dies, molds, and tooling.

Key Hoist Features

  • WLL Range: 500kg - 10t
  • Proof Load Test: 1.5 x WLL (working load limit)
  • Safety Factor: 4:1
  • Temp Range: -20°C to +120°C

Trolley-Hoist Specifications: WH C4 CH GT

  • Standards: British Standard BS EN 13157:2004 + AI:2009.
  • Proof Tested: 1.5 x WLL.
  • Safety factor: 4:1.
  • Temperature range: -20°C to +120°C.
  • Track width range: 70mm - 305mm (2.8 inches to 12 inches). Trolleys available with standard (range 1) or extended (range 2) trolley bars to fit a range of beam widths.
  • End stops: Fitted as standard.
  • Anti-tilt: Fitted as an optional extra.
  • Attachment: Hanging plate fitted into the chain hoist.

Technical Specifications: Metric

Part Code WLL No. of Falls Beam Range 1 (mm) Beam Range 2 (mm) A max (mm) B (mm) C (mm) Mass (kg)
067.050 500kg 1 70 - 203 - 322 199 295 15.4
067.100 1 tonne 1 88 - 203 88 - 305 326 221 340 20.9
067.200 2 tonne 1 88 - 203 88 - 305 346 288 437 32.5
067.320 3.2 tonnes 2 100 - 203 100 - 305 365 334 493 50.6
067.500 5 tonne 2 114 - 203 114 - 305 381 407 573 78.0
067.1000 10 tonne 4 124 - 203 124 - 305 403 525 892 139.4

Technical Specifications: Imperial

Part Code WLL No. of Falls Beam Range 1 (in) Beam Range 2 (in) A max (in) B (in) C (in) Mass (lbs)
067.050 0.5 ton 1 2.8 - 8.0 - 12.2 7.8 11.6 33.9
067.100 1 ton 1 3.5 - 8.0 3.5 - 12.0 12.8 8.7 13.4 46.0
067.200 2 ton 1 3.5 - 8.0 3.5 - 8.0 13.6 11.1 17.2 71.5
067.320 3.2 tons 2 4.0 - 8.0 4.0 - 8.0 14.4 13.2 19.4 111.3
067.500 5 ton 2 4.5 - 8.0 4.5 - 12.0 15.0 16.0 22.6 171.6
067.1000 10 ton 4 5.0 - 8.0 5.0 - 12.0 15.9 17.0 35.1 306.7
Geared Trolley Chain Hoist Dimensions
Downloads

WHM-0004 TROLLEY MANUAL (2711.2025) Rev. 5.pdf

User Manual

(approx. 3.4Mb)
