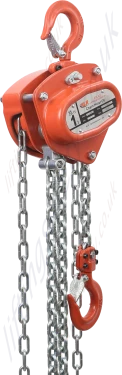

Hand Chain Block from ALR
Designed for demanding lifting environments, this manual chain hoist combines robust construction with advanced safety features to deliver reliable performance in industrial and heavy-duty applications. Reinforced cast-steel safety latches on both the top and bottom hooks provide a secure, positive hook closure, while clearly visible overload indicators and traceability markings support straightforward inspection, identification, and compliance procedures.
Built with serviceability in mind, the hook housings are secured using bolt-and-nut assemblies, allowing full internal inspection access whenever required. The unit is also engineered for cross-hauling and fleeting applications of up to 60° from vertical without reducing the working load limit, offering greater operational flexibility in complex lifting scenarios.
The hoist is fitted with a Grade 80 alloy steel load chain manufactured in accordance with EN818-7, complete with a zinc finish for enhanced corrosion resistance and long-term durability. Optional upgrades, including overload limiters, ball-bearing hooks, and adaptor fittings, are available to accommodate specialised lifting requirements and attachment configurations.
Engineered to perform in challenging environments, the hoist operates within a temperature range of -20°C to +120°C and is proof load tested to 1.5 times the Working Load Limit, with a 4:1 safety factor as standard. Designed and manufactured in compliance with major international standards, including BS EN13157, ASME B30.16, AS1418.2, SANS 1594, and NORSOK R-002, it delivers dependable lifting performance across global industrial sectors.
ACH6 Key Features
- Heavy-Duty Safety Latches: Top and bottom hooks feature reinforced cast-steel latches for a secure, positive hook closure.
- Overload & Traceability Markings: Each hook is clearly marked with overload indicators and identification codes for full compliance and easy inspection.
- Full Inspection Access: Hook housings are fastened with bolt-and-nut assemblies, enabling thorough inspection when required.
- Cross-Hauling Capability: Suitable for fleeting applications up to 60 ° from the vertical, without reducing the working load limit.
- Load Chain: Fitted with a G80 alloy steel load chain fully compliant with EN818-7 and a Zinc finish for enhanced corrosion protection.
- Optional Enhancements: Overload limiter, ball-bearing hooks, and an adaptor fitting to enable a range of attachment options.
- Temperature Range: -20°C to +120°C
- Light Load: 2% WLL
- Safety Factor: 4:1
- Proof Load Testing: 1.5 x WLL
- Standards
- British Standard BS EN13157:2004 + AI:2009
- American Standard ASME B30.16-2014
- Australian Standard AS1418.2-1997
- South African Standard SANS 1594:2007
- NORSOK R-002: 2017.

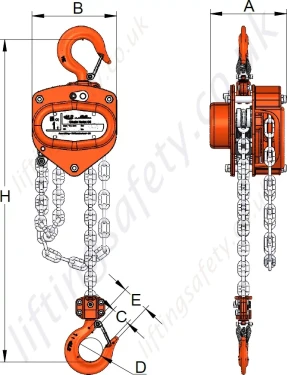

Specifications: ACH6 from Atlas
| Capacity |
Part Number |
Number of Falls |
Load Chain (mm) |
Hand Chain (mm) |
Weight at 3m HOL (kg) |
Weight Per Additional Metre (kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
H (mm) |
| 500kg |
ACH6-005 |
1 |
5x15 |
5x25 |
8 |
1.38 |
130 |
127 |
23.5 |
14.2 |
280 |
| 1 tonnes |
ACH6-010 |
1 |
6x18 |
5x25 |
11.3 |
1.62 |
155 |
134 |
28 |
15.2 |
330 |
| 1.6 tonne |
ACH6-016 |
1 |
8x24 |
5x25 |
15.8 |
2.23 |
173 |
151 |
32 |
19.2 |
375 |
| 2 tonnes |
ACH6-020 |
1 |
8x24 |
5x25 |
17.3 |
2.23 |
185 |
157 |
32 |
19.5 |
405 |
| 3.2 tonne |
ACH6-032 |
2 |
8x24 |
5x25 |
24.2 |
3.62 |
235 |
157 |
38 |
24.5 |
490 |
| 5 tonnes |
ACH6-050 |
2 |
10x30 |
5x25 |
40.2 |
5.18 |
262 |
180 |
48 |
34 |
630 |
| 7.5 tonne |
ACH6-075 |
3 |
10x30 |
5x25 |
74.7 |
7.4 |
415 |
180 |
58.5 |
42 |
740 |
| 10 tonne |
ACH6-100 |
4 |
10x30 |
5x25 |
89.7 |
9.52 |
365 |
180 |
58.5 |
42 |
815 |
| 15 tonne |
ACH6-150 |
6 |
10x30 |
5x25 |
156.3 |
13.86 |
406 |
210 |
76.5 |
51 |
1000 |
| 20 tonne |
ACH6-200 |
8 |
10x30 |
5x25 |
190.8 |
19.1 |
550 |
225 |
76.5 |
51 |
1300 |
| 30 tonne |
ACH6-300 |
12 |
10x30 |
5x25 |
491.3 |
27.8 |
800 |
370 |
94 |
95 |
1650 |
| 50 tonne |
ACH6-500 |
20 |
10x30 |
5x25 |
852.4 |
45.2 |
840 |
605 |
115 |
140 |
1800 |
