Tiger Power Pro Cordless Drill Powered Chain Hoist: Model ETCB
The Tiger Power PRO Hoist with Load Limiter (ETCB) is a high-performance, portable lifting solution engineered for controlled, efficient material handling across a range of industrial environments. It is available in 3.0, 6.0, and 10.0 tonne capacities, allowing users to select the appropriate model based on load requirements while maintaining consistent operational principles across the range.
A key feature of the ETCB hoist is its integrated slipping clutch overload protection system. This mechanical safeguard is designed to disengage the drive transmission when the applied load exceeds the rated capacity, thereby preventing structural stress, component damage, and unsafe lifting conditions. This not only enhances operator safety but also extends the service life of the hoist.

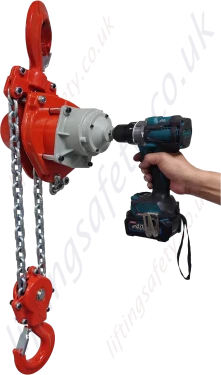

The unit is powered by a cordless drill, eliminating the need for manual chain pulling or fixed electrical or pneumatic power sources. This significantly improves portability and deployment flexibility, particularly in field applications or confined spaces where traditional powered hoists may be impractical. For optimal performance and to avoid excessive wear on internal components, a drill with a maximum speed of 2500 RPM is recommended.
Operationally, the hoist offers smooth and controlled lifting, with the drill interface enabling precise load positioning. This makes it suitable for applications requiring accuracy as well as strength. The absence of trailing cables or manual effort reduces operator fatigue and setup time, contributing to overall productivity gains.
In terms of application, the Tiger ETCB Power PRO Hoist is well-suited for maintenance operations, construction sites, workshops, and other scenarios where a compact, reliable, and easy-to-deploy lifting solution is required. Its combination of mechanical overload protection, cordless operation, and multiple capacity options makes it a versatile tool for both routine and demanding lifting tasks.
Key ETCB Benefits
- Capacity options: 3t, 6t, and 10t for varied lifting requirements
- Built-in slipping clutch mechanism for automatic overload protection
- Cordless drill-powered operation for maximum portability and flexibility
- No need for external power supply or manual effort
- Controlled, precise lifting via drill interface
- Reduced setup time and operator fatigue
- Designed for durability, safety, and efficient performance in industrial settings
Specifications
| Product Code |
Rated load (kg) |
Lifting chain specifications (mm) |
Dimensions (mm) |
No. chain falls |
Motor speed (MAX) (r/min) |
Lifting speed (m/min) |
Brushless drill driver (N.m) V |
Net weight (kg) |
Packing weight (kg) |
Packing size (cm) |
Weight for each additional metre of chain (kg/cm) |
| A |
B |
D |
E |
F1 |
F2 |
G |
| ETCB-0300 |
3000 |
10 x 30 |
228 |
84 |
98 |
157 |
36 |
56 |
500 |
1 |
2600 |
0.718 |
68 18V or above |
29.6 |
31.3 |
38 x 34.5 x 29 |
2.2 |
| ETCB-0600 |
6000 |
10 x 30 |
228 |
84 |
86 |
220 |
49 |
70 |
635 |
2 |
2600 |
0.359 |
68 18V or above |
44.0 |
46.4 |
50 x 37 x 33 |
4.4 |
| ETCB-1000 |
10000 |
10 x 30 |
228 |
84 |
153 |
263 |
54 |
87 |
660 |
3 |
2600 |
0.239 |
90 18V or above |
56.9 |
60.8 |
50 x 43.5 x 41 |
6.5 |

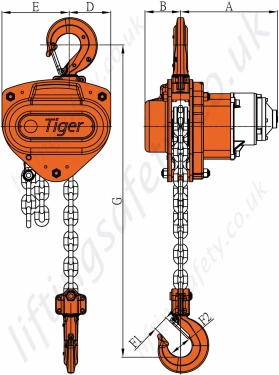

ETCB 3 Tonne Dimensional Drawing

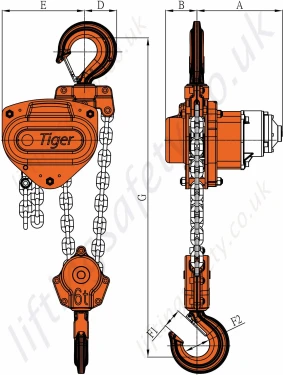

ETCB 6 Tonne Dimensional Drawing

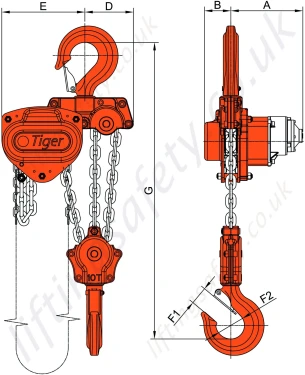

ETCB 10 Tonne Dimensional Drawing
