RUD PSA INOX-STAR Rotating Fall Arrest Anchorage Eye Bolts, Options For 1 or 2 Persons

RUD PSA INOX-STAR Rotating Fall Arrest Anchorage Eye Bolts, Options For 1 or 2 Persons

Rotating Fall Protection Anchorage point with Stainless Steel Bolt

Model:

RUD PSA INOX STAR / RIRF-5021

RUD PSA INOX-STAR Rotating Fall Arrest Anchorage Eye Bolts, Options For 1 or 2 Persons

Standard Length Psa Inox Star Extended Thread Psa Inox Star
More from:
Rud

The RUR PSA-Fall arrest anchor points are not lifting points in a conventional sense. They are used as anchor points for personal fall arrest systems (PSA) acc. to EN 363:2008. After installation, harnesses can be attached to them.

These products are certified by a notified institution of DGUV. DGUV-test certificate No.: PS17060031, PS17060032 and PS17060033 with the evidence of the in OSHA 1926.502:2001/01 paragraph (d)(15) and DIN EN 50308:2005 chapter 4.5 for lifting points required forces. They are corresponding to a "anchor point" according to European edict 2016/425 and the DIN 795:2012-10 resp. DIN CEN / TS 16415:2013-4 and they are marked with CE and the number of load-bearing persons (1 or 2 persons).

  • Available thread sizes: M12 to M20.
  • Full working load in all directions.
  • Range of rotation 360°.
  • Tested and certified by the faculty PSA of DGUV.
  • PSA-INOX-STAR is made of stainless steel.
  • M12 for single persons only.
  • M16 & M20 for two persons.

Dimensions & Specifications

 Model Article number WLL Weight T B C D E G I K L M N
PSA INOX STAR M12 7997097 1 Person 0.19 kg 43 mm 14 mm 12 mm 30 mm 30 mm 32 mm 18 mm 56 mm 18 mm M12 mm 8 mm
PSA INOX STAR M16 7912518 1-2 Person 0.38 kg 50 mm 15 mm 14 mm 35 mm 44 mm 45 mm 22 mm 65 mm 24 mm M16 mm 10 mm
PSA INOX STAR M20 7900921 1-2 Person 0.56 kg 58 mm 19 mm 17 mm 40 mm 43 mm 47 mm 27,5 mm 74 mm 30 mm M20 mm 12 mm
PSA INOX STAR M12, L=50 7997820 1 Person 0.22 kg 43 mm 14 mm 12 mm 30 mm 30 mm 32 mm 18 mm 56 mm 50 mm M12 mm 8 mm
PSA INOX STAR M16, L=50 7912514 1-2 Person 0.42 kg 50 mm 15 mm 14 mm 35 mm 44 mm 45 mm 22 mm 65 mm 50 mm M16 mm 10 mm
PSA INOX STAR M16, L=120 7912515 1-2 Person 0.53 kg 50 mm 15 mm 14 mm 35 mm 44 mm 45 mm 22 mm 65 mm 120 mm M16 mm 10 mm
PSA INOX STAR M20, L=60 7901252 1-2 Person 0.60 kg 58 mm 19 mm 17 mm 40 mm 43 mm 47 mm 27,5 mm 74 mm 60 mm M20 mm 12 mm

Subject to technical alterations.

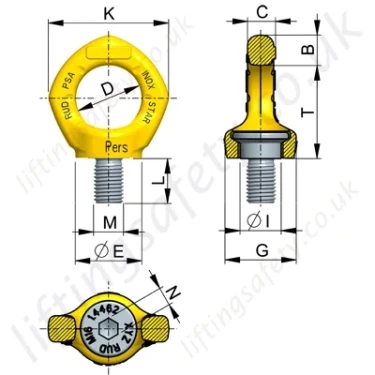

M12 and M20 dimensional drawing

PSA Inox Star M12 And M20 Dimensional Drawing

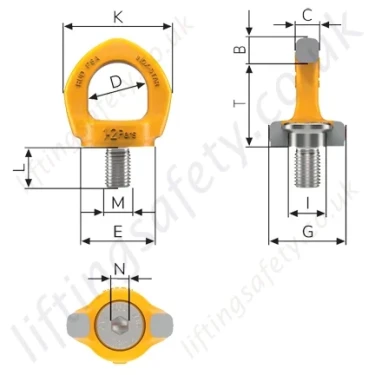

M16 dimensional drawing

PSA Inox Star M16 Dimensional Drawing
Part N° Model WLL Weight Sale Price (Ex. VAT) Quantity
5021-T29125
7997097 		PSA INOX STAR M12 1 Person 0.19 kg
( £95.07 )
£73.68
5021-T29126
7912518 		PSA INOX STAR M16 1-2 Person 0.38 kg
( £111.94 )
£86.76
5021-T29127
7900921 		PSA INOX STAR M20 1-2 Person 0.56 kg
( £156.42 )
£121.23
5021-T29128
7997820 		PSA INOX STAR M12, L=50 1 Person 0.22 kg
( £120.63 )
£93.49
5021-T29129
7912514 		PSA INOX STAR M16, L=50 1-2 Person 0.42 kg
( £165.96 )
£128.62
5021-T29130
7912515 		PSA INOX STAR M16, L=120 1-2 Person 0.53 kg
( £160.33 )
£124.26
5021-T29131
7901252 		PSA INOX STAR M20, L=60 1-2 Person 0.60 kg
( £165.74 )
£128.45
Availability Usually 1-2 Working Days - 1pm cut-off
Add to Shopping Basket
Please Note: Buy online is only available to UK mainland customers and addresses.
Description

The RUR PSA-Fall arrest anchor points are not lifting points in a conventional sense. They are used as anchor points for personal fall arrest systems (PSA) acc. to EN 363:2008. After installation, harnesses can be attached to them.

These products are certified by a notified institution of DGUV. DGUV-test certificate No.: PS17060031, PS17060032 and PS17060033 with the evidence of the in OSHA 1926.502:2001/01 paragraph (d)(15) and DIN EN 50308:2005 chapter 4.5 for lifting points required forces. They are corresponding to a "anchor point" according to European edict 2016/425 and the DIN 795:2012-10 resp. DIN CEN / TS 16415:2013-4 and they are marked with CE and the number of load-bearing persons (1 or 2 persons).

  • Available thread sizes: M12 to M20.
  • Full working load in all directions.
  • Range of rotation 360°.
  • Tested and certified by the faculty PSA of DGUV.
  • PSA-INOX-STAR is made of stainless steel.
  • M12 for single persons only.
  • M16 & M20 for two persons.

Dimensions & Specifications

 Model Article number WLL Weight T B C D E G I K L M N
PSA INOX STAR M12 7997097 1 Person 0.19 kg 43 mm 14 mm 12 mm 30 mm 30 mm 32 mm 18 mm 56 mm 18 mm M12 mm 8 mm
PSA INOX STAR M16 7912518 1-2 Person 0.38 kg 50 mm 15 mm 14 mm 35 mm 44 mm 45 mm 22 mm 65 mm 24 mm M16 mm 10 mm
PSA INOX STAR M20 7900921 1-2 Person 0.56 kg 58 mm 19 mm 17 mm 40 mm 43 mm 47 mm 27,5 mm 74 mm 30 mm M20 mm 12 mm
PSA INOX STAR M12, L=50 7997820 1 Person 0.22 kg 43 mm 14 mm 12 mm 30 mm 30 mm 32 mm 18 mm 56 mm 50 mm M12 mm 8 mm
PSA INOX STAR M16, L=50 7912514 1-2 Person 0.42 kg 50 mm 15 mm 14 mm 35 mm 44 mm 45 mm 22 mm 65 mm 50 mm M16 mm 10 mm
PSA INOX STAR M16, L=120 7912515 1-2 Person 0.53 kg 50 mm 15 mm 14 mm 35 mm 44 mm 45 mm 22 mm 65 mm 120 mm M16 mm 10 mm
PSA INOX STAR M20, L=60 7901252 1-2 Person 0.60 kg 58 mm 19 mm 17 mm 40 mm 43 mm 47 mm 27,5 mm 74 mm 60 mm M20 mm 12 mm

Subject to technical alterations.

M12 and M20 dimensional drawing

PSA Inox Star M12 And M20 Dimensional Drawing

M16 dimensional drawing

PSA Inox Star M16 Dimensional Drawing
Downloads

PSA INOX STAR M12 Instructions.pdf

PSA INOX STAR M12 Instructions

(approx. 1.2Mb) PSA INOX STAR M16 & M20 Instructions.pdf

PSA INOX STAR M16 & M20 Instructions

(approx. 0.9Mb)
