Manual drum winches series TS (worm geared).
Endless screw winches with lifting capacities of 250kg to 3000kg.

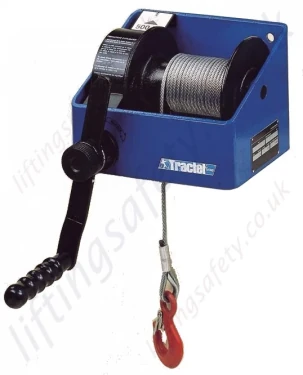

caRol™ winches are manual wire rope winches for installation in a permanent location. They may be used for lifting or pulling a load and are available in two versions: one model with spur gearing and one with worm gearing. The cable is wound onto the drum by turning the crank.
Mechanism
- The gears have been fully subjected to endurance and destruction tests. Hubs machined to retain lubrication.
- Automatic ratchet brake with stainless steel spring on both series.
- Weather resistant: Highly robust chassis and treated mechanical parts.
- Drum released by an easily accessible lever.
- Safety device to prevent release of the machine when under load.
- Mechanism protected by a removable casing.
- Wire rope anchor point: Adaptable to various rope diameters without any special tool.
- Adjustable handle length: Easy to use.
- Permanently attached handle adjustment knob: To adjust the handle or to prevent operation of the winch.
Anchoring
Can be anchored in a number of positions either by the base or by the side, depending on the model.
Safety
- Wheel/screw + automatic brake.
- Impossible to release when under load.
- Exceptional robust frame.
Ease of Operation
- Adjustable and removable handle.
Protection
- Mechanical parts fully protected.
Dimensions
| Model | CAROL TS 250 | CAROL TS 500 | CAROL TS 1000 | CAROL TS 1500 | CAROL TS 2000 | CAROL TS 3000 |
| Capacity (kg) | 250kg | 500kg | 1000kg | 1500kg | 2000kg | 3000kg |
| Wire rope diametre (mm) | 5 | 6.8 | 9 | 11.5 | 13 | 15 |
| Max. length wire rope (m) | 20 | 25 | 35 | 20 | 30 | 40 |
| Weight (kg) | 10 | 15 | 35 | 39 | 61 | 145 |
| Dimensions | ||||||
| A | 150 | 180 | 300 | 300 | 345 | 525 |
| B | 330 | 360 | 490 | 490 | 540 | 700 |
| C | 150 | 180 | 300 | 300 | 345 | 460 |
| D | 200 | 260 | 300 | 300 | 405 | 510 |
| E | 240 | 240 | 340 | 340 | 340 | 340 |
| F | 137 | 182 | 167 | 167 | 260 | 390 |
| G | 100 | 130 | - | - | - | 195 |
| H | 25 | 32 | 32 | 32 | 40 | 70 |
| J | 15 | 18 | 21 | 21 | 25 | 40 |
| K | 118 | 142 | 250 | 250 | 295 | 380 |
| ØL | 4Ø11 | 4Ø13 | 4Ø17 | 4Ø17 | 4Ø21 | 6Ø25 |
| M | 89 | 109 | 180 | 180 | 22 | 325 |
| N | 75 | 90 | 146 | 146 | 168 | 173 |
| ØP | 60 | 70 | 101 | 101 | 121 | 168 |
| Q | 100 | 145 | 176 | 176 | 275 | 300 |
| R | 24 | 30 | 30 | 30 | 40 | 55 |
