Cromox 'CAGF' & 'CBGF' Stainless Steel, Grade 6 / 60, Master Links - WLL Range 0.63 tonnes to 16 tonnes

Cromox 'CAGF' & 'CBGF' Stainless Steel, Grade 6 / 60, Master Links - WLL Range 0.63 tonnes to 16 tonnes

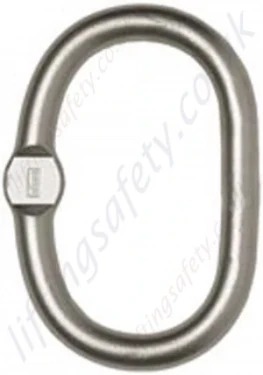

Cromox stainless steel master link for single or 2 leg chain slings. WLL Range 630kg to 16,000kg

Model:

CSSM-4578

Grade 6 cromox master links are manufactured in Germany using the highest quality of stainless steel to achieve market leader quality products.
Rigorously tested in house.
All chains are manufactured on state of the art modern chain making machinery.
The cromox range of products use the highest levels of design, materials and manufacturing processes to produce the best performing products for use in the harshest environments.
Due to the high quality, purity and narrow tolerances of alloying elements in cromox steel, they are able to produce durable, heavy duty stainless steel products with increased corrosion and crack resistance.
The high concentrations of chromium ensures a strong and passive layer of chromium oxide for protection.
A precise amount of Nickel creates a shiny surface.
Other alloys like molybdenum allow for increased Working Load Limit (WLL) and a higher breaking load.

CAGF (SS-003) - With Flat

CBGF - No Flat

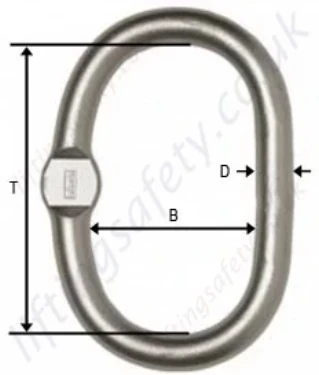

Dimensions and Specifications

Type	To suit chain size (mm) - 1-Leg	To suit chain size (mm) - 2-Leg	d (mm)	t (mm)	b (mm)	W.L.L. (Tonnes)	Mass (kg)
CAGF - With Engineered Flat
SS-003-0504	5	4	10	80	50	0.63	0.15
SS-003-0806	6 / 7	5 / 6	13	110	60	1.55	0.34
SS-003-1008	10	7 / 8	16	110	60	2.45	0.53
SS-003-10	N/A	10	18	135	75	3.55	0.8
SS-003-1613	13 / 16	13	22	160	90	6	1.5
SS-003-1816	18	16	26	180	100	8	2.3
SS-003-2018	20	18	32	200	110	12	3.9
SS-003-2020	N/A	20	36	260	140	16	6.35
CBGF - No Engineered Flat
SS-CBGF-13			13	54	25	2.45	0.195
SS-CBGF-16			16	70	34	3.85	0.37
SS-CBGF-18			18	85	40	6	0.53
SS-CBGF-22			22	115	50	7.6	1.065
SS-CBGF-26			26	140	65	9.6	1.825

Part N°	Chain Size (mm) - Single Leg	Chain Size (mm) - 2 Leg	WLL (t)	Weight (kg)	Unit Price
4578-T23422	5	4	0.63	0.15	Quote Required
4578-T23423	6, 7 & 8	5 & 6	1.55	0.34	£ 24.13
4578-T23424	10	7 & 8	2.45	0.53	£ 40.16
4578-T23425	-	10	3.55	0.8	£ 51.36
4578-T23426	13 & 16	13	6.0	1.5	£ 76.25
4578-T23427	18	16	8.0	2.3	£ 142.41
4578-T23428	20	18	12.0	3.9	Quote Required
4578-T23429	-	20	16.0	6.35	Quote Required
Pricing Currency: Not available at the moment.			Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Description
Pricing

Grade 6 cromox master links are manufactured in Germany using the highest quality of stainless steel to achieve market leader quality products.
Rigorously tested in house.
All chains are manufactured on state of the art modern chain making machinery.
The cromox range of products use the highest levels of design, materials and manufacturing processes to produce the best performing products for use in the harshest environments.
Due to the high quality, purity and narrow tolerances of alloying elements in cromox steel, they are able to produce durable, heavy duty stainless steel products with increased corrosion and crack resistance.
The high concentrations of chromium ensures a strong and passive layer of chromium oxide for protection.
A precise amount of Nickel creates a shiny surface.
Other alloys like molybdenum allow for increased Working Load Limit (WLL) and a higher breaking load.

CAGF (SS-003) - With Flat

CBGF - No Flat

Dimensions and Specifications

Type	To suit chain size (mm) - 1-Leg	To suit chain size (mm) - 2-Leg	d (mm)	t (mm)	b (mm)	W.L.L. (Tonnes)	Mass (kg)
CAGF - With Engineered Flat
SS-003-0504	5	4	10	80	50	0.63	0.15
SS-003-0806	6 / 7	5 / 6	13	110	60	1.55	0.34
SS-003-1008	10	7 / 8	16	110	60	2.45	0.53
SS-003-10	N/A	10	18	135	75	3.55	0.8
SS-003-1613	13 / 16	13	22	160	90	6	1.5
SS-003-1816	18	16	26	180	100	8	2.3
SS-003-2018	20	18	32	200	110	12	3.9
SS-003-2020	N/A	20	36	260	140	16	6.35
CBGF - No Engineered Flat
SS-CBGF-13			13	54	25	2.45	0.195
SS-CBGF-16			16	70	34	3.85	0.37
SS-CBGF-18			18	85	40	6	0.53
SS-CBGF-22			22	115	50	7.6	1.065
SS-CBGF-26			26	140	65	9.6	1.825

Part N°	Chain Size (mm) - Single Leg	Chain Size (mm) - 2 Leg	WLL (t)	Weight (kg)	Unit Price
4578-T23422	5	4	0.63	0.15	Quote Required
4578-T23423	6, 7 & 8	5 & 6	1.55	0.34	£ 24.13
4578-T23424	10	7 & 8	2.45	0.53	£ 40.16
4578-T23425	-	10	3.55	0.8	£ 51.36
4578-T23426	13 & 16	13	6.0	1.5	£ 76.25
4578-T23427	18	16	8.0	2.3	£ 142.41
4578-T23428	20	18	12.0	3.9	Quote Required
4578-T23429	-	20	16.0	6.35	Quote Required
Pricing Currency: Not available at the moment.			Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?
