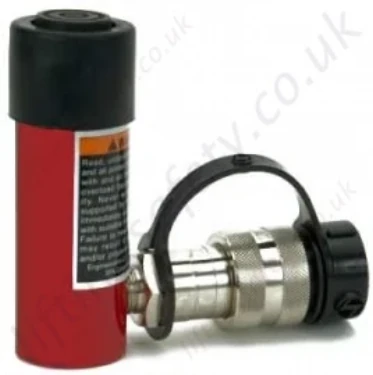

Single Acting Cylinders - Options from 5 to 100 tonne with Various Lifting Strokes

Single Acting Cylinders - Options from 5 to 100 tonne with Various Lifting Strokes

Single acting hydraulic lifting cylinders with heavy duty spring return for quick retraction. Solid Steel body.

Model:

SAC-4523

Internal plunger threads
Snap-in grooved saddles
Plunger wipers help seal out dirt
Collar fixture threads
Two base mounting holes
Maximum working pressure: 10,000 psi/ 700 bar
High strength steel construction
High-flow couplers
Collar thread protector
Heavy Duty Return Spring for quicker retraction.
Specials up to 1000 tonne available upon request.

Specifications

Capacity	Stroke (mm)	Min Height (mm)	Max Height (mm)	Oil Capacity (cc)	Weight (kg)	With Handles
5 tonne (45kN)	26	116	142	16	1.4	No
5 tonne (45kN)	78	169	247	50	1.6	No
5 tonne (45kN)	129	221	350	83	2.1	No
5 tonne (45kN)	180	272	452	116	2.3	No
5 tonne (45kN)	231	323	554	149	2.5	No

10 tonne (101kN)	25	92	117	36	1.8	No
10 tonne (101kN)	51	123	174	73	2.3	No
10 tonne (101kN)	102	174	276	147	3.1	No
10 tonne (101kN)	151	250	401	218	4.3	No
10 tonne (101kN)	202	301	503	291	5.4	No
10 tonne (101kN)	253	352	605	365	6.4	No
10 tonne (101kN)	305	403	707	438	6.8	No
10 tonne (101kN)	356	450	806	514	7.5	No

15 tonne (142kN)	25	124	149	51	3.3	No
15 tonne (142kN)	51	149	200	103	3.9	No
15 tonne (142kN)	101	200	301	204	5.1	No
15 tonne (142kN)	152	270	422	308	7	No
15 tonne (142kN)	203	321	524	411	8	No
15 tonne (142kN)	254	372	626	515	9.3	No
15 tonne (142kN)	305	423	728	618	10.9	No
15 tonne (142kN)	356	474	830	721	11.8	No
15 tonne (142kN)	407	529	936	824	12.8	No

25 tonne (232kN)	26	143	169	86	6.1	No
25 tonne (232kN)	51	168	219	169	6.6	No
25 tonne (232kN)	102	219	321	338	8.7	No
25 tonne (232kN)	155	272	427	514	10.5	No
25 tonne (232kN)	206	323	529	683	12.3	No
25 tonne (232kN)	257	374	631	852	14	No
25 tonne (232kN)	310	426	736	1028	15.3	No
25 tonne (232kN)	362	476	838	1201	17.7	No

30 tonne (287kN)	210	387	599	879	18.5	No

50 tonne (496kN)	51	176	227	361	15.5	No
50 tonne (496kN)	101	227	328	715	19.3	No
50 tonne (496kN)	158	283	441	1119	23.5	Yes
50 tonne (496kN)	260	384	644	1845	34	Yes
50 tonne (496kN)	337	461	798	2388	36.8	Yes

75 tonne (726kN)	156	285	441	1620	30.6	Yes
75 tonne (726kN)	333	492	825	3458	52.4	Yes

100 tonne (928kN)	168	357	525	2229	52.4	Yes
100 tonne (928kN)	260	449	709	3451	68.7	Yes
100 tonne (928kN)	51	219	270	677	31.5	Yes

Capacity

Part N°	Capacity	Stroke (mm)	Min Height (mm)	Max Height (mm)	Oil Capacity (cc)	Weight (kg)	With Handles	Guide Price
4523-T23371	5 tonne (45kN)	26	116	142	16	1.4	No	(£ 252.00) £ 201.60
4523-T23372	5 tonne (45kN)	78	169	247	50	1.6	No	(£ 272.00) £ 217.60
4523-T23373	5 tonne (45kN)	129	221	350	83	2.1	No	(£ 304.00) £ 243.20
4523-T23374	5 tonne (45kN)	180	272	452	116	2.3	No	(£ 346.00) £ 276.80
4523-T23375	5 tonne (45kN)	231	323	554	149	2.5	No	(£ 390.00) £ 312.00
Add to Quote Basket × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Description
Pricing

Internal plunger threads
Snap-in grooved saddles
Plunger wipers help seal out dirt
Collar fixture threads
Two base mounting holes
Maximum working pressure: 10,000 psi/ 700 bar
High strength steel construction
High-flow couplers
Collar thread protector
Heavy Duty Return Spring for quicker retraction.
Specials up to 1000 tonne available upon request.

Specifications

Capacity	Stroke (mm)	Min Height (mm)	Max Height (mm)	Oil Capacity (cc)	Weight (kg)	With Handles
5 tonne (45kN)	26	116	142	16	1.4	No
5 tonne (45kN)	78	169	247	50	1.6	No
5 tonne (45kN)	129	221	350	83	2.1	No
5 tonne (45kN)	180	272	452	116	2.3	No
5 tonne (45kN)	231	323	554	149	2.5	No

10 tonne (101kN)	25	92	117	36	1.8	No
10 tonne (101kN)	51	123	174	73	2.3	No
10 tonne (101kN)	102	174	276	147	3.1	No
10 tonne (101kN)	151	250	401	218	4.3	No
10 tonne (101kN)	202	301	503	291	5.4	No
10 tonne (101kN)	253	352	605	365	6.4	No
10 tonne (101kN)	305	403	707	438	6.8	No
10 tonne (101kN)	356	450	806	514	7.5	No

15 tonne (142kN)	25	124	149	51	3.3	No
15 tonne (142kN)	51	149	200	103	3.9	No
15 tonne (142kN)	101	200	301	204	5.1	No
15 tonne (142kN)	152	270	422	308	7	No
15 tonne (142kN)	203	321	524	411	8	No
15 tonne (142kN)	254	372	626	515	9.3	No
15 tonne (142kN)	305	423	728	618	10.9	No
15 tonne (142kN)	356	474	830	721	11.8	No
15 tonne (142kN)	407	529	936	824	12.8	No

25 tonne (232kN)	26	143	169	86	6.1	No
25 tonne (232kN)	51	168	219	169	6.6	No
25 tonne (232kN)	102	219	321	338	8.7	No
25 tonne (232kN)	155	272	427	514	10.5	No
25 tonne (232kN)	206	323	529	683	12.3	No
25 tonne (232kN)	257	374	631	852	14	No
25 tonne (232kN)	310	426	736	1028	15.3	No
25 tonne (232kN)	362	476	838	1201	17.7	No

30 tonne (287kN)	210	387	599	879	18.5	No

50 tonne (496kN)	51	176	227	361	15.5	No
50 tonne (496kN)	101	227	328	715	19.3	No
50 tonne (496kN)	158	283	441	1119	23.5	Yes
50 tonne (496kN)	260	384	644	1845	34	Yes
50 tonne (496kN)	337	461	798	2388	36.8	Yes

75 tonne (726kN)	156	285	441	1620	30.6	Yes
75 tonne (726kN)	333	492	825	3458	52.4	Yes

100 tonne (928kN)	168	357	525	2229	52.4	Yes
100 tonne (928kN)	260	449	709	3451	68.7	Yes
100 tonne (928kN)	51	219	270	677	31.5	Yes

Capacity

Part N°	Capacity	Stroke (mm)	Min Height (mm)	Max Height (mm)	Oil Capacity (cc)	Weight (kg)	With Handles	Guide Price
4523-T23371	5 tonne (45kN)	26	116	142	16	1.4	No	(£ 252.00) £ 201.60
4523-T23372	5 tonne (45kN)	78	169	247	50	1.6	No	(£ 272.00) £ 217.60
4523-T23373	5 tonne (45kN)	129	221	350	83	2.1	No	(£ 304.00) £ 243.20
4523-T23374	5 tonne (45kN)	180	272	452	116	2.3	No	(£ 346.00) £ 276.80
4523-T23375	5 tonne (45kN)	231	323	554	149	2.5	No	(£ 390.00) £ 312.00
Add to Quote Basket × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?
