Tractel Blocmat Load Arrestors - Range from 250kg to 1000kg (16 options)

Tractel Blocmat Load Arrestors - Range from 250kg to 1000kg (16 options)

Tractel Blocmat Load Arrestors from 8m to 25m.

Model:

Tractel Blocmat / LA-2771

Tractel Blocmat Load Arrestors - Range from 250kg to 1000kg (16 options)

Tractel Blocmat S Load Arrestor Tractel Blocmat 250

Models Available

  • Blocmat 250 - 250kg at 10 or 15 metres - 20 metres a min max speed.
  • Blocmat S - 500, 800 or 1000kg at 8, 10, 12, 15, 20 or 25 metres - 18 metres a min arrest speed.
  • Blocmat SI - 500, 800 or 1000kg at 10, 15 or 25 metres - 18 metres a min arrest speed.

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

For product specific information please see the tabs above.

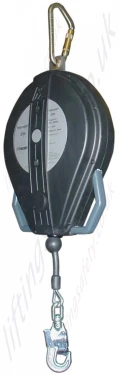

Blocmat 250

A load arresting device for loads up to 250kg and designed along the same principle as the Blocfor range, self reeling with a contrifugal locking mechanism to quickly arrest a falling object.

Features

  • Available in 10 and 15 metres
  • Maximum speed 20m/min

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

Load Arrestors

The Blocmat 250 is designed to protect equipment, such as lighting trusses, roller shutter door and machinery, from the effects of a fall. The Blocmat 250 is used as a secondary safety device to arrest the load following unexpected failure of the primary load bearing system.

Function:

The load arrestor Blocmat 250 has been designed to secure suspended loads. Should the load fall down, then the blocmat will hold the load in suspension.

Description and principal of use:

The Blocmat 250 is a retractable load arrestor. The length of the wire rope is adjusted automatically by a tensioning and retracting system. The locking function is provided by two catches which engage in a ratchet wheel by the operation of centrifugal force caused by the acceleration of the load. The function which absorbs the shock when the load is stopped is provided by a multi disc braking system. the Blocmat 250 is attached to a structure through a connector or a fixing bracket for the tube Ø 52 mm. The blocmat must be reconditioned immediately by an authorised person after a fall arrest. A non sparking version is available as an option.

  • The structure where the blocmat 250 is anchored to shall be dimensioned to support a vertical force of 40kn.

Advantages:

  • Limited free fall height.
  • The fall is stopped gradually.
  • Minimum dead weight.
  • Handles for transport. ( 15m model only )
  • Minimum maintenance costs

Specifications

Max hook stroke : 10 m ( Ø 4,7 mm ) 15 m ( Ø 5 mm )
Head fixation : With connector with connector with fixing bracket
W.L.L : 250 kg 250 kg
Deadweight : 6 kg 15 kg
Dimension ( L x W x H ) in mm : 650 x 200 x 75 778 x 320 x 130 805 x 320 x 130
Braking distance : 750 mm 750 mm
Max Speed : 35 m / min 35 m / min

Dimensional DrawingBlocmat S

A load arresting device for loads from 500kg up to 1000kg and designed along the same principle as the Blocfor range, self reeling with a contrifugal locking mechanism to quickly arrest a falling object.

Features

  • Available in 8, 10, 12, 15, 20 and 25 metres
  • Fall arrest speed: 18m/min

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

Load Arrestors

The Blocmat S is designed to protect equipment, such as lighting trusses, roller shutter door and machinery, from the effects of a fall. The Blocmat S is used as a secondary safety device to arrest the load following unexpected failure of the primary load bearing system.

Function

This range with 500, 800 and 1000 kg W.L.L has been designed to be suspended to a structure through a rectangular fixing plate.

Description and Principle of Use

The "Blocmat S " type is composed of:

  • An automatic fall arrest device.
  • A rope reeling drum.
  • A reliable rectangular fixing plate.

A centrifugal device continuously monitors the speed at which the wire rope passes through the fall arrest device and automatically triggers the closing of the jaw on the wire rope as soon as the speed exceeds a given threshold. The brake jaw grips over a large contact area, causing no damage to the wire rope.

A drilled fixing plate allows the complete system to be anchored to support steel profiles or concrete plates. The fall arrest device and the reeling drum are fixed to this fixing plate.

  • The structure where the BLOCMAT is anchored to shall be dimensioned to support a vertical force equal to 8 times the nominal load.
  • Fall arrest speed 18 m/min.

Dimensional Drawing

Advantages

  • Very limited fall distance (< 100 mm).
  • Fall is stopped gradually.
  • Fall arrest device can be reset by simple action to the lever.
  • Operation can be tested at any time by closing the jaw manually through the emergency button.
  • No need to recondition the device after fall arrest.

Specifications

W.L.L. Ø of wire rope (mm) Wire rope length (m) Weight (kg) A (mm) B (mm) C (mm) E (mm)
500kg 6.5 15 29 715 500 190 300
500kg 6.5 25 40 715 580 190 400
800kg 8.3 10 35 753 580 190 400
800kg 8.3 20 43 753 580 190 400
1000kg 9.5 8 35 753 580 190 400
1000kg 9.5 12 42 753 580 190 400

Dimensional DrawingBlocmat SI

A load arresting device for loads from 500kg up to 1000kg and designed along the same principle as the Blocfor range, self reeling with a contrifugal locking mechanism to quickly arrest a falling object.

Features

  • Available in 10, 15 and 25 metres
  • Fall arrest speed: 18m/min

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

Load Arrestors

The Blocmat SI is designed to protect equipment, such as lighting trusses, roller shutter door and machinery, from the effects of a fall. The Blocmat SI is used as a secondary safety device to arrest the load following unexpected failure of the primary load bearing system.

Function

This range with 500, 800 and 1000 kg W.L.L has been designed to be suspended to a structure through a rectangular fixing plate.

Description and Principle of Use

The "Blocmat SI" type is composed of:

  • An automatic fall arrest device.
  • A rope reeling drum.
  • A reliable rectangular fixing plate.

A centrifugal device continuously monitors the speed at which the wire rope passes through the fall arrest device and automatically triggers the closing of the jaw on the wire rope as soon as the speed exceeds a given threshold. The brake jaw grips over a large contact area, causing no damage to the wire rope.

A drilled fixing plate allows the complete system to be anchored to support steel profiles or concrete plates. The fall arrest device and the reeling drum are fixed to this fixing plate.

  • The structure where the BLOCMAT is anchored to shall be dimensioned to support a vertical force equal to 8 times the nominal load.
  • Fall arrest speed 18 m/min.

Dimensional Drawing

Advantages

  • Very limited fall distance (< 100 mm).
  • Fall is stopped gradually.
  • Fall arrest device can be reset by simple action to the lever.
  • Operation can be tested at any time by closing the jaw manually through the emergency button.
  • No need to recondition the device after fall arrest.

Specifications

W.L.L. Ø of wire rope (mm) Wire rope length (m) Weight (kg) A (mm) B (mm) C (mm) E (mm)
500kg 6.5 15 29 715 550 190 300
500kg 6.5 25 39 715 640 190 400
800kg 8.3 10 31 753 550 190 300
800kg 8.3 15 36 753 640 190 400
800kg 8.3 25 45 753 640 190 400
1000kg 9.5 10 36 753 640 190 400
1000kg 9.5 25 47 753 640 190 400

Pricing

Unit Price

£

Quote Only

Models Available

  • Blocmat 250 - 250kg at 10 or 15 metres - 20 metres a min max speed.
  • Blocmat S - 500, 800 or 1000kg at 8, 10, 12, 15, 20 or 25 metres - 18 metres a min arrest speed.
  • Blocmat SI - 500, 800 or 1000kg at 10, 15 or 25 metres - 18 metres a min arrest speed.

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

For product specific information please see the tabs above.

Blocmat 250

A load arresting device for loads up to 250kg and designed along the same principle as the Blocfor range, self reeling with a contrifugal locking mechanism to quickly arrest a falling object.

Features

  • Available in 10 and 15 metres
  • Maximum speed 20m/min

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

Load Arrestors

The Blocmat 250 is designed to protect equipment, such as lighting trusses, roller shutter door and machinery, from the effects of a fall. The Blocmat 250 is used as a secondary safety device to arrest the load following unexpected failure of the primary load bearing system.

Function:

The load arrestor Blocmat 250 has been designed to secure suspended loads. Should the load fall down, then the blocmat will hold the load in suspension.

Description and principal of use:

The Blocmat 250 is a retractable load arrestor. The length of the wire rope is adjusted automatically by a tensioning and retracting system. The locking function is provided by two catches which engage in a ratchet wheel by the operation of centrifugal force caused by the acceleration of the load. The function which absorbs the shock when the load is stopped is provided by a multi disc braking system. the Blocmat 250 is attached to a structure through a connector or a fixing bracket for the tube Ø 52 mm. The blocmat must be reconditioned immediately by an authorised person after a fall arrest. A non sparking version is available as an option.

  • The structure where the blocmat 250 is anchored to shall be dimensioned to support a vertical force of 40kn.

Advantages:

  • Limited free fall height.
  • The fall is stopped gradually.
  • Minimum dead weight.
  • Handles for transport. ( 15m model only )
  • Minimum maintenance costs

Specifications

Max hook stroke : 10 m ( Ø 4,7 mm ) 15 m ( Ø 5 mm )
Head fixation : With connector with connector with fixing bracket
W.L.L : 250 kg 250 kg
Deadweight : 6 kg 15 kg
Dimension ( L x W x H ) in mm : 650 x 200 x 75 778 x 320 x 130 805 x 320 x 130
Braking distance : 750 mm 750 mm
Max Speed : 35 m / min 35 m / min

Dimensional DrawingBlocmat S

A load arresting device for loads from 500kg up to 1000kg and designed along the same principle as the Blocfor range, self reeling with a contrifugal locking mechanism to quickly arrest a falling object.

Features

  • Available in 8, 10, 12, 15, 20 and 25 metres
  • Fall arrest speed: 18m/min

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

Load Arrestors

The Blocmat S is designed to protect equipment, such as lighting trusses, roller shutter door and machinery, from the effects of a fall. The Blocmat S is used as a secondary safety device to arrest the load following unexpected failure of the primary load bearing system.

Function

This range with 500, 800 and 1000 kg W.L.L has been designed to be suspended to a structure through a rectangular fixing plate.

Description and Principle of Use

The "Blocmat S " type is composed of:

  • An automatic fall arrest device.
  • A rope reeling drum.
  • A reliable rectangular fixing plate.

A centrifugal device continuously monitors the speed at which the wire rope passes through the fall arrest device and automatically triggers the closing of the jaw on the wire rope as soon as the speed exceeds a given threshold. The brake jaw grips over a large contact area, causing no damage to the wire rope.

A drilled fixing plate allows the complete system to be anchored to support steel profiles or concrete plates. The fall arrest device and the reeling drum are fixed to this fixing plate.

  • The structure where the BLOCMAT is anchored to shall be dimensioned to support a vertical force equal to 8 times the nominal load.
  • Fall arrest speed 18 m/min.

Dimensional Drawing

Advantages

  • Very limited fall distance (< 100 mm).
  • Fall is stopped gradually.
  • Fall arrest device can be reset by simple action to the lever.
  • Operation can be tested at any time by closing the jaw manually through the emergency button.
  • No need to recondition the device after fall arrest.

Specifications

W.L.L. Ø of wire rope (mm) Wire rope length (m) Weight (kg) A (mm) B (mm) C (mm) E (mm)
500kg 6.5 15 29 715 500 190 300
500kg 6.5 25 40 715 580 190 400
800kg 8.3 10 35 753 580 190 400
800kg 8.3 20 43 753 580 190 400
1000kg 9.5 8 35 753 580 190 400
1000kg 9.5 12 42 753 580 190 400

Dimensional DrawingBlocmat SI

A load arresting device for loads from 500kg up to 1000kg and designed along the same principle as the Blocfor range, self reeling with a contrifugal locking mechanism to quickly arrest a falling object.

Features

  • Available in 10, 15 and 25 metres
  • Fall arrest speed: 18m/min

Click here to download the Load Arrestor Questionnaire

Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

Load Arrestors

The Blocmat SI is designed to protect equipment, such as lighting trusses, roller shutter door and machinery, from the effects of a fall. The Blocmat SI is used as a secondary safety device to arrest the load following unexpected failure of the primary load bearing system.

Function

This range with 500, 800 and 1000 kg W.L.L has been designed to be suspended to a structure through a rectangular fixing plate.

Description and Principle of Use

The "Blocmat SI" type is composed of:

  • An automatic fall arrest device.
  • A rope reeling drum.
  • A reliable rectangular fixing plate.

A centrifugal device continuously monitors the speed at which the wire rope passes through the fall arrest device and automatically triggers the closing of the jaw on the wire rope as soon as the speed exceeds a given threshold. The brake jaw grips over a large contact area, causing no damage to the wire rope.

A drilled fixing plate allows the complete system to be anchored to support steel profiles or concrete plates. The fall arrest device and the reeling drum are fixed to this fixing plate.

  • The structure where the BLOCMAT is anchored to shall be dimensioned to support a vertical force equal to 8 times the nominal load.
  • Fall arrest speed 18 m/min.

Dimensional Drawing

Advantages

  • Very limited fall distance (< 100 mm).
  • Fall is stopped gradually.
  • Fall arrest device can be reset by simple action to the lever.
  • Operation can be tested at any time by closing the jaw manually through the emergency button.
  • No need to recondition the device after fall arrest.

Specifications

W.L.L. Ø of wire rope (mm) Wire rope length (m) Weight (kg) A (mm) B (mm) C (mm) E (mm)
500kg 6.5 15 29 715 550 190 300
500kg 6.5 25 39 715 640 190 400
800kg 8.3 10 31 753 550 190 300
800kg 8.3 15 36 753 640 190 400
800kg 8.3 25 45 753 640 190 400
1000kg 9.5 10 36 753 640 190 400
1000kg 9.5 25 47 753 640 190 400
