Hydraulic Hand Stacker Trucks - Lifting Capacity Options 500kg to 2000kg

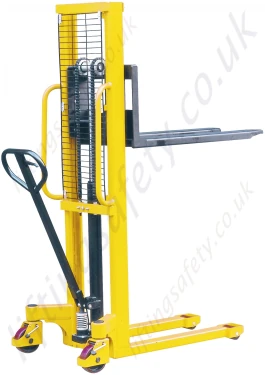

Manual hydraulic stacker truck with max fork height options of 1500mm or 2500mm.
Model:
HST-652
A manual hydraulic pump action stacker truck that operates similarly to how a pallet truck work, but also with adjustable fork widths for wider or narrower applications.
- The hydraulic pump means less user effort is required.
- High quality seal kit
- Conforms to EN1757-1:2001.
- This model also features optional adjustable forks for wider applications.
- Heavy duty 1 piece "C" section forks for strength.
Specifications
Part Number | Unit | 652-T20252 | 652-T24818 | 652-T24819 | 652-T24820 | 652-T24821 |
Capacity | (kg) | 500 | 1000 | 1000 | 1500 | 2000 |
Load Centre | C (mm) | 585 | 585 | 585 | 585 | 585 |
Max. Fork Height | H (mm) | 1500 | 1500 | 2500 | 1500 | 1500 |
Min. Fork Height | h (mm) | 88 | 88 | 88 | 88 | 88 |
Fork Length | L (mm) | 1150 | 1150 | 1150 | 1150 | 1150 |
Fork Width | D (mm) | 160 | 160 | 160 | 160 | 160 |
Overall Fork Width | W (mm) | 540 | 540 | 540 | 540 | 540 |
Lifting Height Per Stroke | (mm) | 20 | 12.5 | 12.5 | 12.5 | 10 |
Ground Clearance | X (mm) | 24 | 24 | 24 | 24 | 24 |
Min. Turning Radius (outside) | (mm) | 1086 | 1086 | 1086 | 1100 | 1100 |
Front Load Roller | (mm) | Ø80x70 | Ø80x70 | Ø80x70 | Ø80x70 | Ø80x70 |
Steering Wheel | (mm) | Ø150x40 | Ø150x50 | Ø150x50 | Ø180x50 | Ø180x50 |
Overall Length | A (mm) | 1604 | 1604 | 1646 | 1665 | 1695 |
Overall Width | B (mm) | 794 | 760 | 760 | 720 | 720 |
Overall Height | F (mm) | 2010 | 2010 | 1960 | 2010 | 2010 |
Net Weight | (kg) | 210 | 220 | 330 | 250 | 280 |
A manual hydraulic pump action stacker truck that operates similarly to how a pallet truck work, but also with adjustable fork widths for wider or narrower applications.
- The hydraulic pump means less user effort is required.
- High quality seal kit
- Conforms to EN1757-1:2001.
- This model also features optional adjustable forks for wider applications.
- Heavy duty 1 piece "C" section forks for strength.
Specifications
Part Number | Unit | 652-T20252 | 652-T24818 | 652-T24819 | 652-T24820 | 652-T24821 |
Capacity | (kg) | 500 | 1000 | 1000 | 1500 | 2000 |
Load Centre | C (mm) | 585 | 585 | 585 | 585 | 585 |
Max. Fork Height | H (mm) | 1500 | 1500 | 2500 | 1500 | 1500 |
Min. Fork Height | h (mm) | 88 | 88 | 88 | 88 | 88 |
Fork Length | L (mm) | 1150 | 1150 | 1150 | 1150 | 1150 |
Fork Width | D (mm) | 160 | 160 | 160 | 160 | 160 |
Overall Fork Width | W (mm) | 540 | 540 | 540 | 540 | 540 |
Lifting Height Per Stroke | (mm) | 20 | 12.5 | 12.5 | 12.5 | 10 |
Ground Clearance | X (mm) | 24 | 24 | 24 | 24 | 24 |
Min. Turning Radius (outside) | (mm) | 1086 | 1086 | 1086 | 1100 | 1100 |
Front Load Roller | (mm) | Ø80x70 | Ø80x70 | Ø80x70 | Ø80x70 | Ø80x70 |
Steering Wheel | (mm) | Ø150x40 | Ø150x50 | Ø150x50 | Ø180x50 | Ø180x50 |
Overall Length | A (mm) | 1604 | 1604 | 1646 | 1665 | 1695 |
Overall Width | B (mm) | 794 | 760 | 760 | 720 | 720 |
Overall Height | F (mm) | 2010 | 2010 | 1960 | 2010 | 2010 |
Net Weight | (kg) | 210 | 220 | 330 | 250 | 280 |
