As of October 1st 2022, the G-Guard range of load arrestors will be superseded by the 'Guard Load Arrest' range of load arrestors.
Load arrestors are an effective system for automatically stopping the fall of an overhead load, protecting the load whilst at the same time reducing the chance of injury to anyone nearby. If the load enters into free-fall the cable is pulled out at an accelerating rate and, when the activation speed is reached, the braking system engages and brings the load to a smooth and cushioned stop.
A tensioned safety line for protection of machinery, high value and / or sensitive loads. Load arrestors provide a backup safety system to protect a load at height and automatically stop its fall, should the primary means of support fail. This helps to reduce hazards in the area below the load.
The fall protection brake can be activated by quickly extracting the safety line from within the arrestor housing. This happens when a fall occurs. The fall protection brake includes a shock-absorbing element to minimize the forces encountered when stopping a falling load.
For the fall arrest brake to operate correctly, the protected load must be in unhindered accelerating free-fall.
These G Guard load arrestors are suitable for protecting both static and moving loads in a wide variety of applications in a wide range of industries: Automotive, Aerospace, Nuclear, Theatrical & Rigging Services, Sports & Leisure, General Manufacturing & Processing Industries
- 500kg Maximum Working Load (MWL).
- Maximum Stopping Distance: 1m
- 15m version cable length options: 7m, 10m, 15m.
- 24m version cable length options: 18m, 20m 24m.
- Galvanised steel cable as standard.
- Available with Stainless steel cable on request.
- Supplied with top and bottom shackle fitting.
- Available in matt black (suitable for the entertainment industry).
- CE Certification.
- Conforms to European Directive 2006/42/EC.
- Maufactured in the U.K.

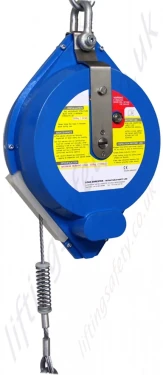

- Image shows 500kg 15m unit.
Specifications
| Max. Working Load (kg) |
Max. Cable (m) |
Height (mm) |
Width (mm) |
Depth (mm) |
Between Shackles (mm) |
Max. Running Speed |
Weight (kg) |
| 500 |
15 |
450 |
290 |
135 |
620 |
0.6m/sec |
15.7 |
| 500 |
24 |
390 |
295 |
190 |
600 |
0.6m/sec |
19.4 |
