- Gebuwin "WW-D-FS / WW-D-FSB" Free Spool Hand Operated Worm Gear Winch, Range from 2000kg to 5000kg

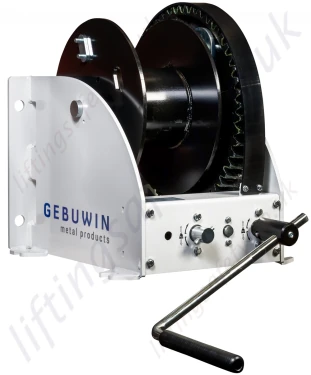

Gebuwin "WW-D-FS / WW-D-FSB" Free Spool Hand Operated Worm Gear Winch, Range from 2000kg to 5000kg
Worm Gear Hand Winch for Lifting/Hoisting and Pulling, with Single or Double Drum, available with Optional Adjustable Friction Brake for Controlled Cable Unwinding and Optional Finish
WW-D-FS / GHOW-4755
The Gebuwin range of hand driven worm gear winches are known for their robust construction. This range of winches are used for both hoisting and pulling of loads. These worm gear winches are equipped with a cable drum free spool, making it possible for the cable to be easily pulled from the drum, due to the fact that the cable drum can be detached from the transmission.
As an extra option, it is possible to have an adjustable slipping brake on the cable drum which allows for a controlled release of the cable. As well as this, these winches can be mounted in such a way that allows for the cable to come free from the winch horizontally.
The listed capacities refer to the hoisting capacities which are calculated according to the first cable layer on the cable drum. In the case of these winches being used for the pulling of loads, the hoisting capacity should be multiplied roughly by a factor of 2.5.
The worm gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The worm gear winches are more safe than the spur gear winches, due to the fact that 50% of the braking is done by the friction loss in the transmission. Subsequently, the load on the pressure brake is greatly reduced and the restraint is divided over two systems. Due to the higher friction loss in the transmission, the worm gear winches have a lower performance efficiency than the spur gear winches.
The winches have a static safety factor of minimum 4. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance free bearings. From the 2000kg capacity winch and up, the winches are fitted with a second drive shaft, which makes it possible to work with two speeds. Most parts are made from steel and have been either painted or zinc plated.
Product Features
- Robust construction.
- Used primarily for pulling loads.
- The cable drum has a free spool to pull the cable from the drum by hand.
- The braking mechanism consists of 50% by the friction in the worm gear transmission and 50% by a load pressure brake.
- Static safety minimum factor 4.
- Adjustable crank and recoil free.
- A second drive shaft is available, which makes it possible to work with two speeds.
- All rotating parts run in maintenance free bearings.
- Cable outlet possible upward, downward and at rear.
- The numbers in the product name correspond with the hoisting capacities on the first cable layer.
- Pulling capacity is approx. 2.5 times the hoisting capacity.
- Standard paint finish in grey RAL 7035 (winch) and black RAL 9005 (drum) according to DIN 12944, C1M.
- Suitable to be used with winch power tool AM5000.
- Also available with grooved drum, multiple compartment cable drum, Zinc plated (6-8 micron) finish and ATEX certified.
Technical Specifications: Standard (No Friction Brake)
Model | WW2000-D-FS | WW3000-D-FS | WW4000-D-FS | WW5000-D-FS |
Capacity: 1st Cable Layer | 2000kg | 3000kg | 4000kg | 5000kg |
Capacity: Last Cable Layer | 1038kg | 1667kg | 2282kg | 3276kg |
Crank force 1st Cable Position | 24 (11) daN | 31 (14) daN | 30 (13) daN | 73 (14) daN |
Hoisting Length by one rotation of crank (1st Layer) | 12 (5)mm | 11 (5)mm | 11 (2)mm | 13 (3)mm |
Max. Cable Storage (1 drum compartment) | 59m | 57m | 43m | 33m |
Cable Dia. (EN 12383-4) | 11mm | 14mm | 16mm | 18mm |
Min. Breaking Load Cable | 63kN | 102kN | 133kN | 168kN |
Mounting | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 |
Weight | 63kg | 82kg | 84kg | 122kg |

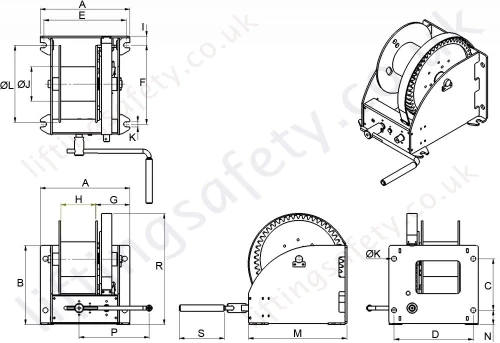

Dimensions: Standard (No Friction Brake)
Dimensions (mm) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P | R | S |
WW2000-D-FS | 410 | 310 | 196 | 360 | 376 | 279 | 166 | 147 | 42 | 133 | 25 | 312 | 372 | 62 | 380 | 437 | 220 |
WW3000-D-FS | 436 | 385 | 251 | 386 | 401 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW4000-D-FS | 436 | 385 | 251 | 386 | 401 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW5000-D-FS | 436 | 472 | 316 | 386 | 401 | 420 | 171 | 168 | 44 | 219 | 25 | 437 | 515 | 80 | 380 | 625 | 220 |
Technical Specifications: With Friction Brake
Model | WW2000-D-FSB | WW3000-D-FSB | WW4000-D-FSB | WW5000-D-FSB |
Capacity: 1st Cable Layer | 2000kg | 3000kg | 4000kg | 5000kg |
Capacity: Last Cable Layer | 1038kg | 1667kg | 2282kg | 3276kg |
Crank force 1st Cable Position | 24 (11) daN | 31 (14) daN | 30 (13) daN | 73 (14) daN |
Hoisting Length by one rotation of crank (1st Layer) | 12 (5)mm | 11 (5)mm | 11 (2)mm | 13 (3)mm |
Max. friction on brake | 340 Nm | 340 Nm | 340 Nm | 340 Nm |
Max. Cable Storage (1 drum compartment) | 59m | 57m | 43m | 33m |
Cable Dia. (EN 12383-4) | 11mm | 14mm | 16mm | 18mm |
Min. Breaking Load Cable | 63kN | 102kN | 133kN | 168kN |
Mounting | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 |
Weight | 66kg | 85kg | 87kg | 125kg |
Dimensions: With Friction Brake
Dimensions (mm) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P | R | S |
WW2000-D-FSB | 432 | 315 | 196 | 382 | 392 | 279 | 166 | 146 | 42 | 133 | 25 | 330 | 372 | 62 | 380 | 437 | 220 |
WW3000-D-FSB | 458 | 385 | 251 | 408 | 423 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW4000-D-FSB | 458 | 385 | 251 | 408 | 423 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW5000-D-FSB | 458 | 472 | 316 | 408 | 423 | 420 | 171 | 168 | 44 | 219 | 25 | 437 | 515 | 80 | 380 | 625 | 220 |
The Gebuwin range of hand driven worm gear winches are known for their robust construction. This range of winches are used for both hoisting and pulling of loads. These worm gear winches are equipped with a cable drum free spool, making it possible for the cable to be easily pulled from the drum, due to the fact that the cable drum can be detached from the transmission.
As an extra option, it is possible to have an adjustable slipping brake on the cable drum which allows for a controlled release of the cable. As well as this, these winches can be mounted in such a way that allows for the cable to come free from the winch horizontally.
The listed capacities refer to the hoisting capacities which are calculated according to the first cable layer on the cable drum. In the case of these winches being used for the pulling of loads, the hoisting capacity should be multiplied roughly by a factor of 2.5.
The worm gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The worm gear winches are more safe than the spur gear winches, due to the fact that 50% of the braking is done by the friction loss in the transmission. Subsequently, the load on the pressure brake is greatly reduced and the restraint is divided over two systems. Due to the higher friction loss in the transmission, the worm gear winches have a lower performance efficiency than the spur gear winches.
The winches have a static safety factor of minimum 4. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance free bearings. From the 2000kg capacity winch and up, the winches are fitted with a second drive shaft, which makes it possible to work with two speeds. Most parts are made from steel and have been either painted or zinc plated.
Product Features
- Robust construction.
- Used primarily for pulling loads.
- The cable drum has a free spool to pull the cable from the drum by hand.
- The braking mechanism consists of 50% by the friction in the worm gear transmission and 50% by a load pressure brake.
- Static safety minimum factor 4.
- Adjustable crank and recoil free.
- A second drive shaft is available, which makes it possible to work with two speeds.
- All rotating parts run in maintenance free bearings.
- Cable outlet possible upward, downward and at rear.
- The numbers in the product name correspond with the hoisting capacities on the first cable layer.
- Pulling capacity is approx. 2.5 times the hoisting capacity.
- Standard paint finish in grey RAL 7035 (winch) and black RAL 9005 (drum) according to DIN 12944, C1M.
- Suitable to be used with winch power tool AM5000.
- Also available with grooved drum, multiple compartment cable drum, Zinc plated (6-8 micron) finish and ATEX certified.
Technical Specifications: Standard (No Friction Brake)
Model | WW2000-D-FS | WW3000-D-FS | WW4000-D-FS | WW5000-D-FS |
Capacity: 1st Cable Layer | 2000kg | 3000kg | 4000kg | 5000kg |
Capacity: Last Cable Layer | 1038kg | 1667kg | 2282kg | 3276kg |
Crank force 1st Cable Position | 24 (11) daN | 31 (14) daN | 30 (13) daN | 73 (14) daN |
Hoisting Length by one rotation of crank (1st Layer) | 12 (5)mm | 11 (5)mm | 11 (2)mm | 13 (3)mm |
Max. Cable Storage (1 drum compartment) | 59m | 57m | 43m | 33m |
Cable Dia. (EN 12383-4) | 11mm | 14mm | 16mm | 18mm |
Min. Breaking Load Cable | 63kN | 102kN | 133kN | 168kN |
Mounting | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 |
Weight | 63kg | 82kg | 84kg | 122kg |
Dimensions: Standard (No Friction Brake)
Dimensions (mm) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P | R | S |
WW2000-D-FS | 410 | 310 | 196 | 360 | 376 | 279 | 166 | 147 | 42 | 133 | 25 | 312 | 372 | 62 | 380 | 437 | 220 |
WW3000-D-FS | 436 | 385 | 251 | 386 | 401 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW4000-D-FS | 436 | 385 | 251 | 386 | 401 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW5000-D-FS | 436 | 472 | 316 | 386 | 401 | 420 | 171 | 168 | 44 | 219 | 25 | 437 | 515 | 80 | 380 | 625 | 220 |
Technical Specifications: With Friction Brake
Model | WW2000-D-FSB | WW3000-D-FSB | WW4000-D-FSB | WW5000-D-FSB |
Capacity: 1st Cable Layer | 2000kg | 3000kg | 4000kg | 5000kg |
Capacity: Last Cable Layer | 1038kg | 1667kg | 2282kg | 3276kg |
Crank force 1st Cable Position | 24 (11) daN | 31 (14) daN | 30 (13) daN | 73 (14) daN |
Hoisting Length by one rotation of crank (1st Layer) | 12 (5)mm | 11 (5)mm | 11 (2)mm | 13 (3)mm |
Max. friction on brake | 340 Nm | 340 Nm | 340 Nm | 340 Nm |
Max. Cable Storage (1 drum compartment) | 59m | 57m | 43m | 33m |
Cable Dia. (EN 12383-4) | 11mm | 14mm | 16mm | 18mm |
Min. Breaking Load Cable | 63kN | 102kN | 133kN | 168kN |
Mounting | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 | Wall / Floor 4 x M20 Class 8.8 |
Weight | 66kg | 85kg | 87kg | 125kg |
Dimensions: With Friction Brake
Dimensions (mm) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P | R | S |
WW2000-D-FSB | 432 | 315 | 196 | 382 | 392 | 279 | 166 | 146 | 42 | 133 | 25 | 330 | 372 | 62 | 380 | 437 | 220 |
WW3000-D-FSB | 458 | 385 | 251 | 408 | 423 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW4000-D-FSB | 458 | 385 | 251 | 408 | 423 | 385 | 164 | 172 | 44 | 168 | 25 | 375 | 480 | 70 | 380 | 541 | 220 |
WW5000-D-FSB | 458 | 472 | 316 | 408 | 423 | 420 | 171 | 168 | 44 | 219 | 25 | 437 | 515 | 80 | 380 | 625 | 220 |
Products of Possible Interest
Contact Us About This Product
If you wish to receive a quote for this product, please use the 'Pricing' tab above, this form is for general enquiries regarding this product only.
You can also Request a Quote using the Buy/Quote tab above!
You can easily add more than one item to the Quote Request. This is highly recommend as we will be able to suit your needs much more efficiently.
Share this page!
Save this QR code
for use on Smart Phones
