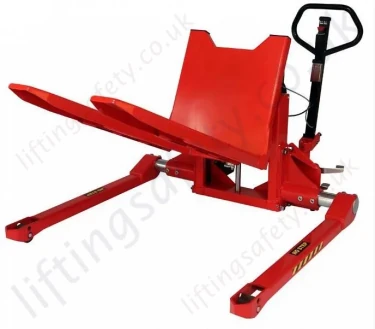

Electric Lift & Tilting Straddle Base Pallet Lifter, Capacity 750kg or 1000kg, Optional Fork Width & Lengths
Useful where palletised goods are loose small items that need to be picked out one by one.
Model:
ELTS-5016




Unfortunately this pallet tilter is no longer available. Please see our pallet tilter truck range for a possible alternative
- Suitable for the food and pharmaceutical industries where hygiene is of great importance.
- Ergonomically designed handle.
- Adjustable working height when tilted.
- The handle can be turned to the side and locked to allow the user easy access to the crate/box contents.
- Tilting function operated by remote control.
- Tilting angle can be adjusted during filling and emptying operation.
- The tilting degree can be set so that the tilter stops automatically at the same angle each time.
- Designed with foot protectors and parking brake.
- Safety valve and emergency stop ensures safe operation.

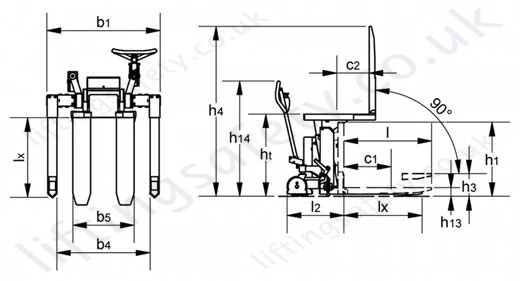

Dimensions & Specifications
Model | 560x800 | 680x800 | 560x1150 | 680x1150 | |
Capacity | 1000 kg | 750 kg | |||
Load Centre | c1 | max. l/2 | |||
Height, Tilted | ht | 750 - 950 mm | |||
Lifting Height | h3 | 275 mm | |||
Fork Length | l | 800 mm | 1150 mm | ||
Overall Height with Handle | h14 | 1055 mm | |||
Overall Height | h1 | 680 mm | |||
Overall Width | b1 | --- | |||
Width between Legs | b4 | Adjustable 1125 - 1305 mm | |||
Width over Forks | b5 | 560 mm | 680 mm | 560 mm | 680 mm |
Individual Fork Width | e | 163 mm | |||
Overall Length | l1 | 1425 mm | TBC | ||
Length without Forks | l2 | 590 mm | |||
Overall Height of Forks at Max. Tilt | h4 | ht + l | |||
Lowered Height | h13 | 85 mm | |||
Pump Motor | 0.8 kW 12V | ||||
Lifting Speed - Lift/Tilt | 4 s / 14 s | ||||
Lowering Speed - Lift/Tilt | 3 s / 11 s | ||||
Battery | 12V / 70Ah | ||||
Weight (without battery) | 251 kg | TBC |

Unfortunately, this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
