- Aluminium Hydraulic Lifting Cylinders - Capacities from 20 tonne to 100 tonnes
Aluminium Hydraulic Lifting Cylinders - Capacities from 20 tonne to 100 tonnes

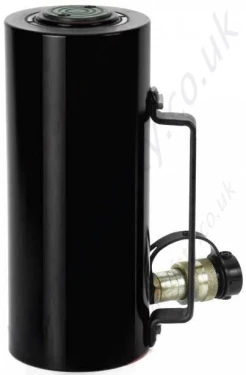

Lightweight aluminium alloy construction lifting cylinders with various stroke/lifting heights.
Model:
AHLC-4524
- Lightweight aluminum alloy construction
- Up to 60 percent lighter than comparable tonnage steel cylinders
- Hard anodized aluminum rod provides extra protection against corrosion and wear
- Steel protective plate on cylinder base
- Maximum working pressure: 10,000 psi / 700 bar
- Some models supplied with convenient carry handle (please confirm)
Specifications
Capacity | Stroke (mm) | Min. Height (mm - A) | Max. Height (mm - B) | Oil Capacity (cc) | Weight (kg) |
20 tonne (218kN) | 50 | 174 | 224 | 155 | 3.0 |
20 tonne (218kN) | 100 | 224 | 324 | 311 | 3.7 |
20 tonne (218kN) | 150 | 274 | 424 | 467 | 4.4 |
30 tonne (309kN) | 50 | 181 | 231 | 220 | 4.7 |
30 tonne (309kN) | 100 | 231 | 331 | 441 | 5.4 |
30 tonne (309kN) | 150 | 281 | 431 | 662 | 6.1 |
50 tonne (496kN) | 50 | 186 | 236 | 354 | 7.6 |
50 tonne (496kN) | 100 | 236 | 336 | 708 | 9.1 |
50 tonne (496kN) | 150 | 286 | 436 | 1063 | 10.7 |
50 tonne (496kN) | 200 | 336 | 536 | 1417 | 12.3 |
50 tonne (496kN) | 250 | 386 | 636 | 1772 | 14.0 |
100 tonne (929kN) | 100 | 271 | 371 | 1327 | 19.8 |
100 tonne (929kN) | 150 | 321 | 471 | 1990 | 22.1 |
100 tonne (929kN) | 200 | 371 | 571 | 2654 | 24.4 |
Dimensions

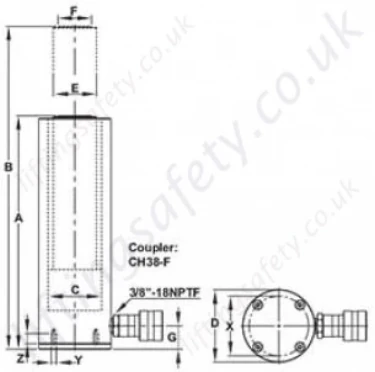

Capacity | Cylinder Effective Area (cm2) | Bore Ø (mm - C) | Outside Ø (mm - D) | Plunger Ø (mm - E) | Saddle Ø (mm - F) | Base to Inlet Port (mm - G) | Base Mounting Hole Pitch Ø (mm - X) | Base Mounting Hole Thread | Base Mounting Hole Thread Depth (mm) | |
20 tonne (218kN) | 31.17 | 63 | 85 | 50.8 | 39.5 | 27.5 | 70 | M6 | 12 | |
30 tonne (309kN) | 44.18 | 75 | 100 | 60 | 39.5 | 33.5 | 80 | M6 | 12 | |
50 tonne (496kN) | 70.88 | 95 | 130 | 80 | 70 | 30.5 | 110 | M6 | 12 | |
|
132.73 | 130 | 180 | 109.9 | 70 | 46.5 | 160 | M6 | 12 |
- Lightweight aluminum alloy construction
- Up to 60 percent lighter than comparable tonnage steel cylinders
- Hard anodized aluminum rod provides extra protection against corrosion and wear
- Steel protective plate on cylinder base
- Maximum working pressure: 10,000 psi / 700 bar
- Some models supplied with convenient carry handle (please confirm)
Specifications
Capacity | Stroke (mm) | Min. Height (mm - A) | Max. Height (mm - B) | Oil Capacity (cc) | Weight (kg) |
20 tonne (218kN) | 50 | 174 | 224 | 155 | 3.0 |
20 tonne (218kN) | 100 | 224 | 324 | 311 | 3.7 |
20 tonne (218kN) | 150 | 274 | 424 | 467 | 4.4 |
30 tonne (309kN) | 50 | 181 | 231 | 220 | 4.7 |
30 tonne (309kN) | 100 | 231 | 331 | 441 | 5.4 |
30 tonne (309kN) | 150 | 281 | 431 | 662 | 6.1 |
50 tonne (496kN) | 50 | 186 | 236 | 354 | 7.6 |
50 tonne (496kN) | 100 | 236 | 336 | 708 | 9.1 |
50 tonne (496kN) | 150 | 286 | 436 | 1063 | 10.7 |
50 tonne (496kN) | 200 | 336 | 536 | 1417 | 12.3 |
50 tonne (496kN) | 250 | 386 | 636 | 1772 | 14.0 |
100 tonne (929kN) | 100 | 271 | 371 | 1327 | 19.8 |
100 tonne (929kN) | 150 | 321 | 471 | 1990 | 22.1 |
100 tonne (929kN) | 200 | 371 | 571 | 2654 | 24.4 |
Dimensions
Capacity | Cylinder Effective Area (cm2) | Bore Ø (mm - C) | Outside Ø (mm - D) | Plunger Ø (mm - E) | Saddle Ø (mm - F) | Base to Inlet Port (mm - G) | Base Mounting Hole Pitch Ø (mm - X) | Base Mounting Hole Thread | Base Mounting Hole Thread Depth (mm) | |
20 tonne (218kN) | 31.17 | 63 | 85 | 50.8 | 39.5 | 27.5 | 70 | M6 | 12 | |
30 tonne (309kN) | 44.18 | 75 | 100 | 60 | 39.5 | 33.5 | 80 | M6 | 12 | |
50 tonne (496kN) | 70.88 | 95 | 130 | 80 | 70 | 30.5 | 110 | M6 | 12 | |
|
132.73 | 130 | 180 | 109.9 | 70 | 46.5 | 160 | M6 | 12 |
