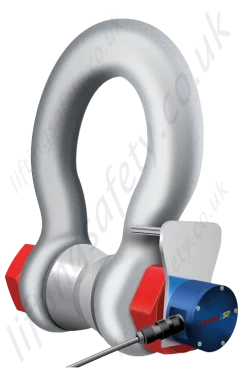

Straightpoint Wired Load Shackle - Range from 3,250kg to 400 tonne

Straightpoint Wired Load Shackle - Range from 3,250kg to 400 tonne

SP cabled weighing shackle type load cell. Manufactured from Crosby shackles.

Model:

SLB

Quick Ref:

SWLS-5654

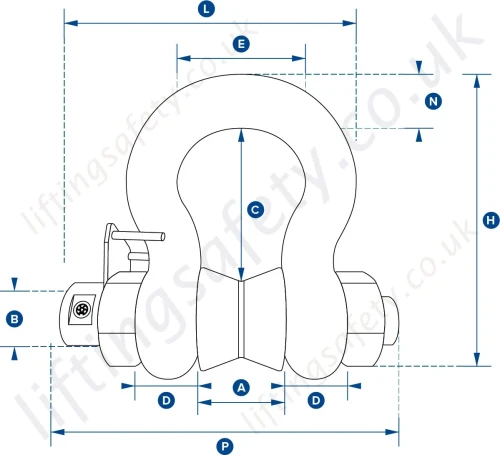

Straightpoint Wired Load Shackle Dimensions

Crosby Straightpoint Cable Type Weighing Shackle: SLB Series Loadshackle

Capacities of 3.25t to 400t, as well as being obtainable up to 3,000t.
Compact size, low headroom, lightweight.
Every Loadshackle is proof tested.
Utilises the same advanced microprocessor-based electronics as Crosby SP products.
Unrivalled resolution.
Environmentally sealed to IP67 or NEMA6.
Advanced options available for subsea applications.
Manufactured using Crosby G2130 carbon, G2140 alloy or S2135 bolt-type industry-leading anchor shackles (bow shackles).
mv/v or analogue signal options.
Design validated by FEA.
Design Factor: 5:1 when used with a load bobbin.
Operating Temperature: -10°C to +50°C.
Accuracy: ±1% of full scale.
Configured with output formats to include mV/V, RS-422, RS-485, utilising the ASCII, MODBUS RTU, and CAN-BUS protocols or supplied with an integral amplifier allowing analogue outputs such as 4-20mA, 0-10v, 0-5v, etc.

Dimensions & Specifications

Stock No.	Model	Capacity	Resolution (t)	Weight (kg)	Dimensions (mm)									Crosby Shackle
Stock No.	Model	Capacity	Resolution (t)	Weight (kg)	A	ØB	C	D	E	H	L	N	P	Crosby Shackle
2789106	SLB3.25T	3.25 tonnes	0.005	2.8										27	19	57	14	43	103	125	18	140	G2130
2789111	SLB6.5T	6.5 tonnes	0.005	3.2										37	25	80	21	58	148	147	25	163	G2130
2789103	SLB12T	12 tonne	0.01	8										52	35	113	30	83	210	191	35	212	G2130
2789105	SLB25T	25 tonne	0.02	18										73	51	170	45	127	313	265	57	280	G2130
2789110	SLB55T	55 tonne	0.05	25										83	57	190	51	146	348	296	61	307	G2140
2789112	SLB85T	85 tonne	0.05	85										127	83	317	80	190	539	384	85	438	S2135
2789102	SLB120T	120 tonne	0.1	125										144	95	364	89	238	624	434	95	478	S2135
2789104	SLB200T	200 tonne	0.2	260										180	125	432	110	280	769	520	120	590	S2135
2789107	SLB300T	300 tonne	0.5	405										205	150	505	120	305	904	577	140	647	S2135
2789108	SLB400T	400 tonne	0.5	662										230	175	548	160	325	1007	657	160	755	S2135

Straightpoint Wired Load Shackle Dimensions
