Screw-locking beam clamp with alloy safety shackle for pulling up to 180 degrees. Range from 750kg to 5000kg.
Model:
CTSH-4308
More from:
750kg, 1500 kg, 3000kg, and 5000kg SWL capacity options available
Used on all structural steel plates and sections upto a surface hardness of 300 Brinell.
Camlok Screwcam Pulling Clamps are primarily used as anchor points to allow fabrications to be pulled together and positioned during assembly or prior to welding. The clamps are attached by turning the screwed threaded axle. The TSD, TSH and TSZ have a cam pad when a load is applied to the clamp the circular toothed pad pivots in a cam action, gripping the load.
Applications
The Camlok series of screwcam clamps can be used on all structural steel plates and sections up to a surface hardness of 300 Brinell. They offer an easy way of attaching pulling equipment to steel structures and can be used for holding and for the correction of alignment problems. This range of clamps is designed for pulling in three planes. The design allows for simultaneous loading in two directions but not for the transportation of plate.
This series of clamps can be used in any combination or number of combinations required they are available in various sizes, lifting capacities and cap sizes.
Technical Specifications
Model
WLL (kg)
Jaw Capacity (mm)
Weight (kg)
TSH 750
750
0 - 30
3.1
TSH 1500
1500
0 - 32
7
TSH 3000
3000
0 - 50
11
TSH 5000
5000
0 - 80
27

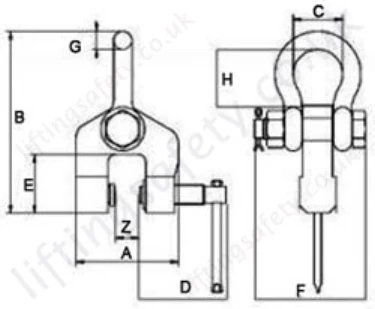

Model
Plate (mm) Z
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G (mm)
H (mm)
TSH 750
0 - 30
-
-
-
-
-
-
-
-
TSH 1500
0 - 32
130
255
65
115
75
127
26
94
TSH 3000
0 - 50
170
290
74
125
85
144
30
118
TSH 5000
0 - 80
255
470
130
175
135
240
50
175
