Cromox CDAW Stainless Steel Swivel Lifting Points

Cromox CDAW Stainless Steel Swivel Lifting Points

Grade 6/60 stainless steel swivel hoist ring, M10 to M48, 0.5 to 10 tonne lifting capacity.

Model:

CDAW / CSSS-4589

Cromox CDAW Stainless Steel Swivel Lifting Points

Cromox Stainless Steel Swivel Lifting Point - 0.5t to 1.5t Cromox Stainless Steel Swivel Lifting Point - 2t To 10t - Front View CDAW 2t To 10t Rotatable Lifting Swivel - Above View CDAW 2t To 10t Rotatable Lifting Swivel - Flank View
More from:
Cromox

Cromox Stainless Steel Rotating Lifting Points

The double-joint mechanism of the cromox® lifting point enables unrestricted 360° rotation, ensuring precise alignment with chain slings. This design minimises the risk of chain twisting or knotting, thereby maintaining operational safety and efficiency. The swivel lifting points are engineered with exceptional fatigue strength, high load-bearing capacity, and a 4:1 safety factor in all load directions, guaranteeing reliable and consistent performance under demanding conditions.

360° Rotatable Swivel Lifting Point

A 360° rotatable swivel lifting point is a precision-engineered lifting accessory designed for demanding load-handling operations. Its ability to rotate continuously and swivel in multiple directions ensures optimal alignment of the lifting force, thereby enhancing operational safety, efficiency, and flexibility. The 360° rotation significantly reduces the likelihood of lateral loading, which can compromise lifting integrity. This type of lifting point is engineered for universal application across sectors such as construction, heavy industry, logistics, and maritime operations.

Stainless Steel Swivel Lifting Points

Stainless steel offers a unique combination of mechanical and material properties - strength, durability, corrosion resistance, and temperature resistance - that are critical for the manufacture of high-performance swivel lifting points. These lifting devices are primarily employed in industrial and maritime applications, where they ensure secure load handling while enabling 360° rotation for maximum flexibility and reliable load-bearing capacity.

The exceptional resistance of stainless steel to salt, moisture, and other corrosive agents makes it particularly suitable for use in aggressive environments. Even under extreme temperature fluctuations, from high heat to severe cold, stainless steel maintains its structural integrity and load-carrying performance. This stability is essential to guarantee both safety and long-term operational reliability in demanding lifting operations.

Cromox CDAW Features

  • Possible combination with CGS (cromox® clevis shackles) due to the flat spot integrated on the holding bracket
  • Screw is secured to prevent becoming loose
  • All parts 100% crack tested
  • Model tested according to EN 1677-1
  • Grade 60
  • Very high corrosion resistance of all components 1.4462 Duplex (AISI 318LN)
  • Load capacity from 0.5 to 10 t in the standard range

All Cromox products are tested in-house in a Lloyd's Register certified proofing facility. According to international standards, it has a load capacity of up to 160 tons.

Dimensions and Specifications

Type WLL (t) Dimensions (mm) Thread Thread length Weight (kg, approx.)
    a b c h i t
CDAW-05 0.5 66 42 31 16.5 11 100 M10 15 0.57
CDAW-1 1 66 42 31 16.5 11 100 M14 20 0.58
CDAW-1.5 1.5 66 42 31 16.5 11 100 M16 25 0.6

CDAW-2 2 100 50 53.5 26.0 20.5 127 M20 30 1.77
CDAW-3 3 100 50 53.5 26.0 20.5 127 M27 40 1.84
CDAW-5 5 120 60 64 31.5 26 146 M36 54 3.5
CDAW-8 8 150 85 80.5 38.5 30 180 M42 62 6.55
CDAW-10 10 171 98 92.5 44.0 35 207 M48 72 9.62

*Special lengths are available on request.

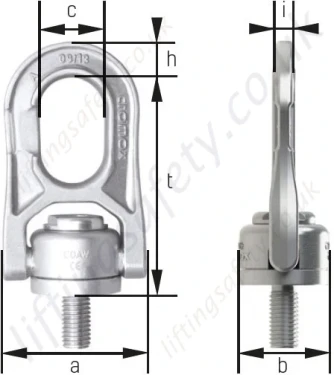

CDAW 500kg to 1.5t Dimensions
CDAW 500kg to 1.5t Dimensions
CDAW 2t to CDAW 10t Dimensions
CDAW 2t to CDAW 10t Dimensions

Pricing

Unit Price Request Quote
Description

Cromox Stainless Steel Rotating Lifting Points

The double-joint mechanism of the cromox® lifting point enables unrestricted 360° rotation, ensuring precise alignment with chain slings. This design minimises the risk of chain twisting or knotting, thereby maintaining operational safety and efficiency. The swivel lifting points are engineered with exceptional fatigue strength, high load-bearing capacity, and a 4:1 safety factor in all load directions, guaranteeing reliable and consistent performance under demanding conditions.

360° Rotatable Swivel Lifting Point

A 360° rotatable swivel lifting point is a precision-engineered lifting accessory designed for demanding load-handling operations. Its ability to rotate continuously and swivel in multiple directions ensures optimal alignment of the lifting force, thereby enhancing operational safety, efficiency, and flexibility. The 360° rotation significantly reduces the likelihood of lateral loading, which can compromise lifting integrity. This type of lifting point is engineered for universal application across sectors such as construction, heavy industry, logistics, and maritime operations.

Stainless Steel Swivel Lifting Points

Stainless steel offers a unique combination of mechanical and material properties - strength, durability, corrosion resistance, and temperature resistance - that are critical for the manufacture of high-performance swivel lifting points. These lifting devices are primarily employed in industrial and maritime applications, where they ensure secure load handling while enabling 360° rotation for maximum flexibility and reliable load-bearing capacity.

The exceptional resistance of stainless steel to salt, moisture, and other corrosive agents makes it particularly suitable for use in aggressive environments. Even under extreme temperature fluctuations, from high heat to severe cold, stainless steel maintains its structural integrity and load-carrying performance. This stability is essential to guarantee both safety and long-term operational reliability in demanding lifting operations.

Cromox CDAW Features

  • Possible combination with CGS (cromox® clevis shackles) due to the flat spot integrated on the holding bracket
  • Screw is secured to prevent becoming loose
  • All parts 100% crack tested
  • Model tested according to EN 1677-1
  • Grade 60
  • Very high corrosion resistance of all components 1.4462 Duplex (AISI 318LN)
  • Load capacity from 0.5 to 10 t in the standard range

All Cromox products are tested in-house in a Lloyd's Register certified proofing facility. According to international standards, it has a load capacity of up to 160 tons.

Dimensions and Specifications

Type WLL (t) Dimensions (mm) Thread Thread length Weight (kg, approx.)
    a b c h i t
CDAW-05 0.5 66 42 31 16.5 11 100 M10 15 0.57
CDAW-1 1 66 42 31 16.5 11 100 M14 20 0.58
CDAW-1.5 1.5 66 42 31 16.5 11 100 M16 25 0.6

CDAW-2 2 100 50 53.5 26.0 20.5 127 M20 30 1.77
CDAW-3 3 100 50 53.5 26.0 20.5 127 M27 40 1.84
CDAW-5 5 120 60 64 31.5 26 146 M36 54 3.5
CDAW-8 8 150 85 80.5 38.5 30 180 M42 62 6.55
CDAW-10 10 171 98 92.5 44.0 35 207 M48 72 9.62

*Special lengths are available on request.

CDAW 500kg to 1.5t Dimensions
CDAW 500kg to 1.5t Dimensions
CDAW 2t to CDAW 10t Dimensions
CDAW 2t to CDAW 10t Dimensions
