The William Hackett WH-AH Air Hoist range is engineered to EN 14492-2 standards for dependable lifting in the most demanding environments. It delivers a true 100% duty cycle, with a sealed, grease-filled epicyclic gearbox that provides long, low-maintenance service life.
The hoist offers variable speed control via pull cord, pilot pendant (with E-Stop), or direct pendant. An automatic multi-disc brake and an overload limiter set to 130% WLL enhance safety and performance.
Robust SG iron housings, internal silencing, galvanised Grade 80 load chain, and high-grade alloy steel hooks with safety latches ensure exceptional strength and durability. Spark-resistant construction (ATEX Zone 2) is standard, with Zone 1 configurations available on request.
Available options include stainless steel hooks and chain, chain containers, and combination trolley-hoist assemblies.
Standard WH-AH Air Hoist Features
Manufactured in accordance with European Standard EN 14492-2, ASME B30.1.6 and SANS 1638
100% duty cycle
Robust epicycle gearbox (grease-filled and sealed)
Choice of pull cord, pilot pendant c/w E-Stop or direct pendant control - variable speed
Urethane yielding buffers for upper and lower limit stops
SG iron housings
Internal silencing
High-grade alloy steel swivel hooks with safety catches
Marine specification - Nickel-coated and marine paint
Corrosion resistance: stainless steel hooks and chain, special paints
Chain Containers
Plain, geared and motorised trolleys
Hoist Specifications
Part Code
Working Load Limit
No. of Falls
Weight with standard lift, rope control kg
Weight of 1m of Chain kg
Air Pressure bar
Air hose connection
Air hose dimension min. mm
Length of control Standard Lift m
Chain Dimension mm
AH-025
250kg
1
17.5
1.08
6.2
1/2" BSP
13.00
2
7x21
AH-050
500kg
1
17.5
1.08
6.2
1/2" BSP
13.00
2
7x21
AH-100
1 tonne
1
22.0
1.08
6.2
1/2" BSP
13.00
2
7x21
AH-200
2 tonnes
1
26.0
1.08
6.2
1/2" BSP
13.00
2
7x21
AH-300
3 tonnes
1
75.0
3.80
6.2
3/4" BSP
19.25
2
13x36
AH-600
6 tonnes
2
85.0
3.80
6.2
3/4" BSP
19.25
2
13x36
AH-1000
10 tonnes
2
150.0
5.70
6.2
3/4" BSP
19.25
2
16x45
AH-1500
15 tonnes
3
175.0
3.80
6.2
3/4" BSP
19.25
2
13x36
AH-2000
20 tonnes
4
330.0
5.70
6.2
3/4" BSP
19.25
2
16x45
AH-3750
37.5 tonnes
3
875.0
12.22
6.2
1-1/2" BSP
38.10
2
23.5 x 66

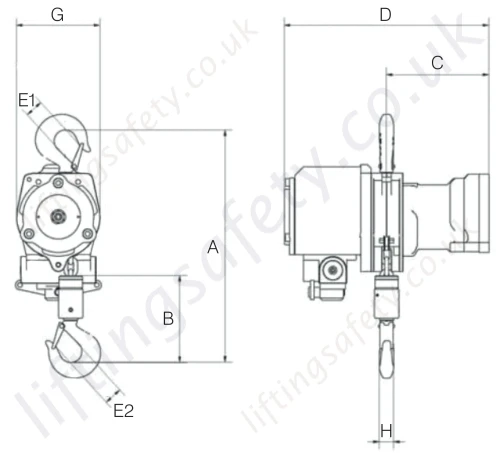

Dimensional Specifications: WH-AH Series Air Hoist
Part Code
WLL
A min. Headroom (mm)
B (mm)
C (mm)
D (mm)
E1 (mm)
E2 (mm)
G max. Width (mm)
H Hook Width (mm)
AH-025
250kg
338
148
162
253
23
23
123
24
AH-050
500kg
338
148
162
253
23
23
123
24
AH-100
1 Ton
347
148
162
292
23
23
128
24
AH-200
2 Ton
397
201
162
292
23
23
128
24
AH-300
3 Ton
555
223
205
424
40
30
230
40
AH-600
6 Ton
690
359
230
424
40
40
230
40
AH-1000
10 Ton
805
431
314
463
53
53
314
47
AH-1500
15 Ton
795
-
284
566
58
58
208
-
AH-2000
20 Ton
1005
-
300
593
78
78
328
-
AH-3750
37.5 Ton
1500
-
432
905
100
100
660
-
