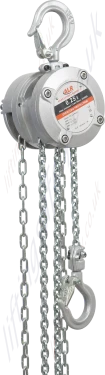

ALR ACHC6 Mini Manual Chain Hoist

ACHC6 Mini Hoist for Confined Spaces

The ACHC6 Mini Hoist is a compact and robust lifting solution designed for confined space operations where a low-headroom design is essential. With a direct hook-mounted configuration and an extremely compact design, this mini chain block is suitable for applications where available working space is limited. The heavy-duty aluminium casing, sealed gear and brake assembly, high-performance marine grease and standard overload limiter provide a durable configuration for demanding lifting applications.

Compact Low Headroom Chain Hoist

Available in 0.25 tonne and 0.5 tonne capacities, the ACHC6 provides a lightweight and compact alternative for applications requiring reliable manual lifting equipment. The low headroom hoist features RFID technology as standard, batch-coded load-bearing components for traceability and a sintered brake for increased efficiency. A locking mechanism and heavy-duty butterfly latch kits are also fitted as standard. The ACHC6 is designed and manufactured in accordance with BS EN 13155:2020 and has a 4:1 factor of safety, with a stated operating temperature range of -20°C to 120°C.

Key Features

• Extremely compact design for confined space operations
• Heavy-duty Aluminium Casing
• Overload Limiter as Standard
• RFID Enabled as Standard
• Sealed Gear and Brake Assembly
• High-performance marine grease
• Batch-coded load-bearing parts for traceability
• Sintered brake for increased efficiency
• Heavy-duty ALR Butterfly Latch Kits with recessed springs

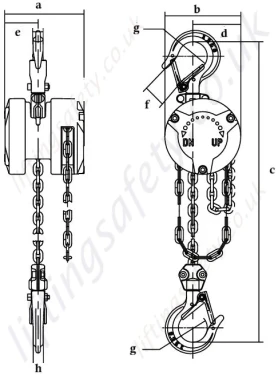

Specifications

Part No.	ACHC6-025	ACHC6-050
Capacity	0.25t	0.5t
Load Chain Diameter (mm)	3.2 x 9.0	4.3 x 12.1
A (mm)	88	101
B (mm)	84	102
C (mm)	217	260
D (mm)	54	66
E (mm)	37	44
F (mm)	21	24.5
G (mm)	32	35.5
H (mm)	11	12
Mass (kg) at standard 3m HOL	2.4	4.5
Mass (kg) for additional 1 m HOL	0.4	0.9
